123
Specifications Appendix A

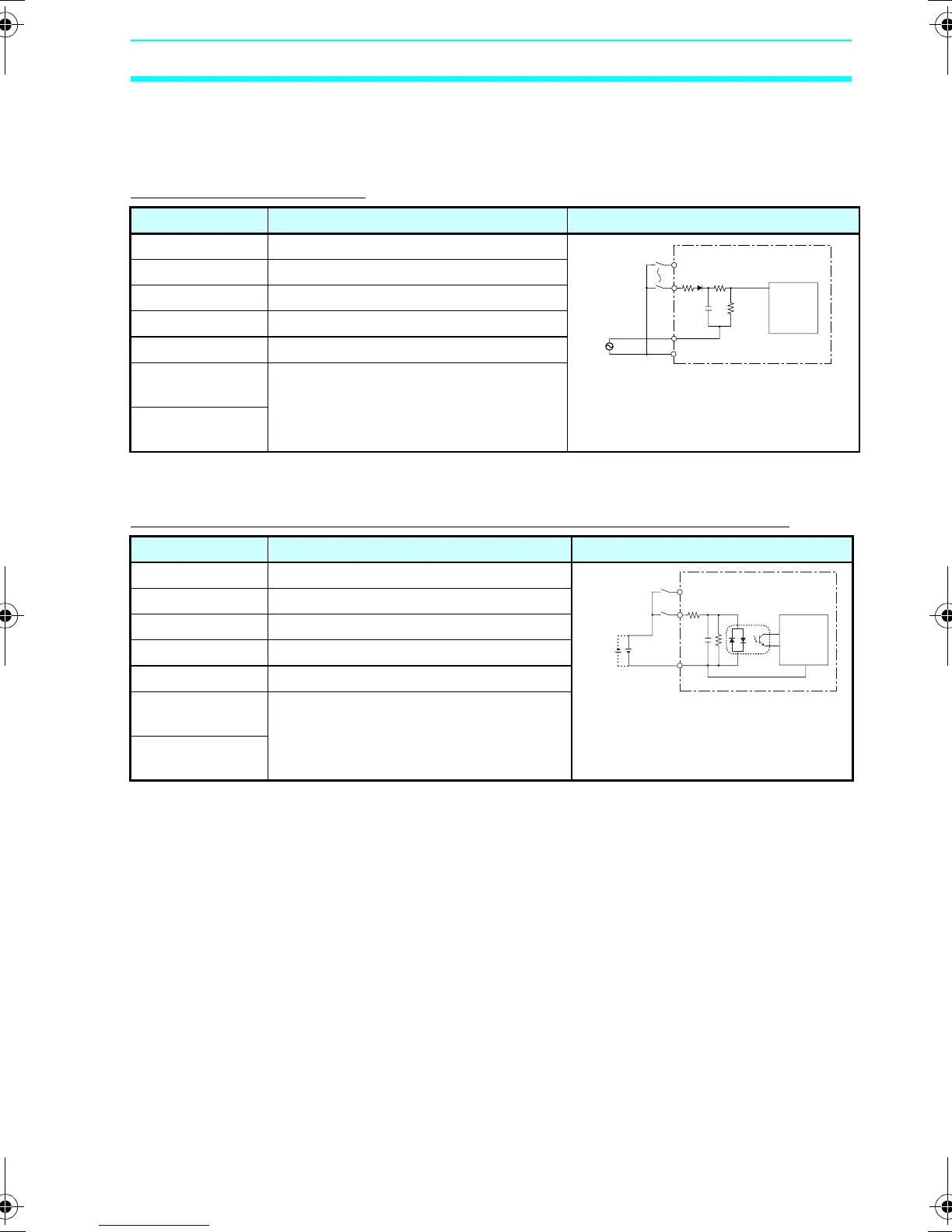

Input Specifications
CPU Units
AC Inputs (Not Isolated)
Note Can be selected using the input filter settings.
DC Inputs I0 to I3 (I0 to I9 for Units with 20 I/O Points) (Not Isolated)
Note Can be selected using the input filter settings, except when I0 is being used for
high-speed input.
Item Specifications Circuit drawing
Input voltage 100 to 240 VAC +10%, –15%, 50/60 Hz
Input impedance 680 k
Input current 0.15 mA/100 VAC, 0.35 mA/240 VAC
ON voltage 80 VAC min.
OFF voltage 25 VAC max.
ON response
time
50 ms or 70 ms at 100 VAC (See note.)
100 ms or 120 ms at 240 VAC (See
note.)
OFF response
time
Item Specifications Circuit drawing
Input voltage 12 to 24 VDC +20%, –10%
Input impedance 5.3 k
Input current 4.5 mA Typical (24 VDC)
ON voltage 8 VDC min.
OFF voltage 5 VDC max.
ON response
time
15 ms or 50 ms (See note.)
OFF response
time
IN
IN
100 to
240 VAC
N
L
330 k
51 k
300 k
Internal
circuit
to
IN
IN
12 to 24 VDC
5.1 k
COM
1.8 k
Internal
circuit
Z211-E1-03.book Page 123 Friday, November 21, 2008 10:38 AM
