39
Wiring Section 2-2
■

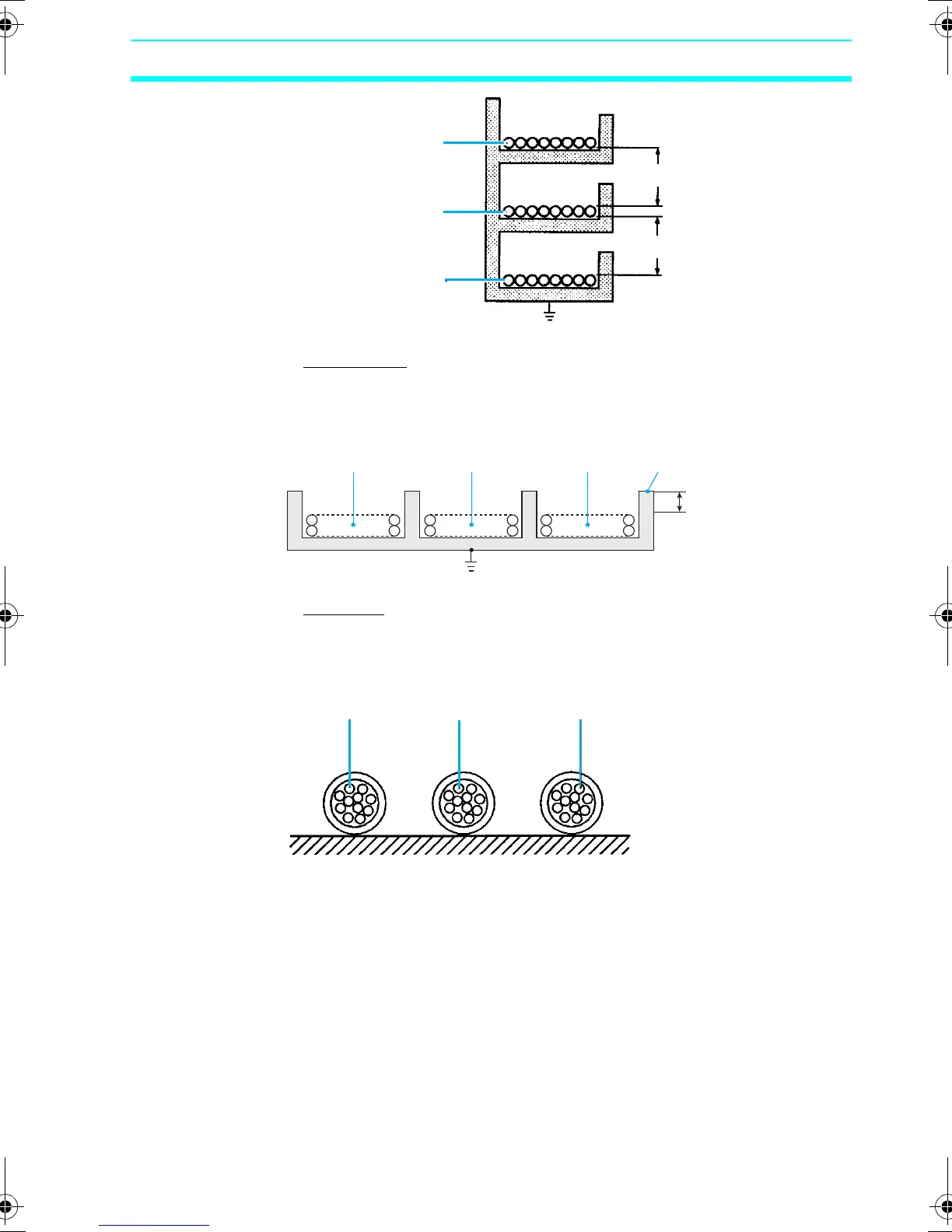

Floor Ducts
Leave at least 200 mm between the wiring and the top of the duct, as
shown in the following diagram.
■ Conduits
Separate the ZEN I/O lines, power and control lines, and power
cables, as shown in the following diagram.
Do not run ZEN I/O lines in the same duct or conduit as power lines.
I/O lines
Control cables and
power lines
Power cables
300 mm min.
300 mm min.
200 mm min.
Metal plate (iron)
I/O lines
Control cables and
power lines
Power cables
I/O lines
Control cables and
power lines
Power cables
Z211-E1-03.book Page 39 Friday, November 21, 2008 10:38 AM

Omron ZEN Specifications

General

Display	LCD
Mounting Type	DIN Rail
Operating Temperature	-10 to 55°C
Power Supply Voltage	100-240V AC
Output Type	Relay, Transistor
Number of Outputs	4-8
Programming Language	Ladder Logic
