Omron ZEN User Manual

70

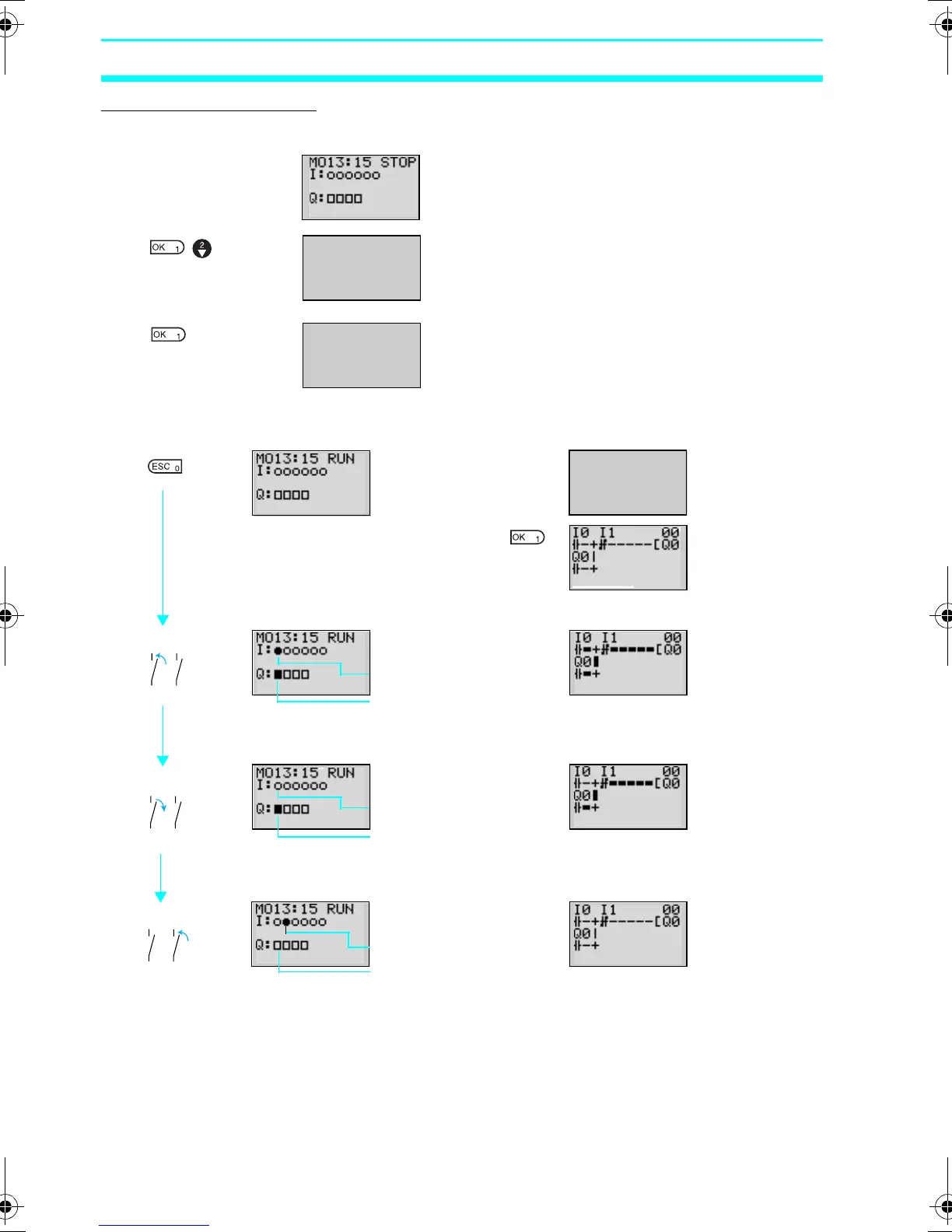

Confirming Ladder Program Operation Section 3-4
Checking Operation
Changing Operating Mode
Press the OK Button to display the Menu
Screen and press the Down Button to move
the flashing cursor to RUN.
Press the OK Button to switch from STOP
mode to RUN mode.
PROGRAM
RUN
PARAMETER
SET CLOCK
▼
MONITOR
STOP
PARAMETER
SET CLOCK
▼
RUN
I0 I1
I0 I1
I0 I1
Checking Operations on
Main Screen
Press the ESC
Button to switch
to the Main
Screen.
Checking Operations Using
Ladder Program Monitor
MONITOR
STOP
PARAMETER
SET CLOCK
▼
RUN
Select Monitor
in RUN mode.
Press the OK
Button to switch
to the Ladder
Program
Monitoring
Screen.
Turn I0 ON.
Q0 will turn ON when
I0 turns ON.
I0 ON.
Q0 ON at the same
time.
Q0 turns ON at
the same time
when I0 turns
ON. When the
bit is ON, the
vertical and
horizontal lines
are thick.
Turn I0 OFF.
Q0 remains ON
even if I0 turns OFF.
I0 OFF.
Q0 ON.
Turn I1 ON.
Q0 will turn OFF when
I1 is turned ON.
I1 ON.
Q0 OFF.
RUN
RUN
RUN
RUN
RUN
RUN
RUN
RUN
▼
▼
▼
▼
Z211-E1-03.book Page 70 Friday, November 21, 2008 10:38 AM

Omron ZEN Specifications

General

Display	LCD
Mounting Type	DIN Rail
Operating Temperature	-10 to 55°C
Power Supply Voltage	100-240V AC
Output Type	Relay, Transistor
Number of Outputs	4-8
Programming Language	Ladder Logic
