Setting Measurement Items
ZFX-C User’s Manual
3

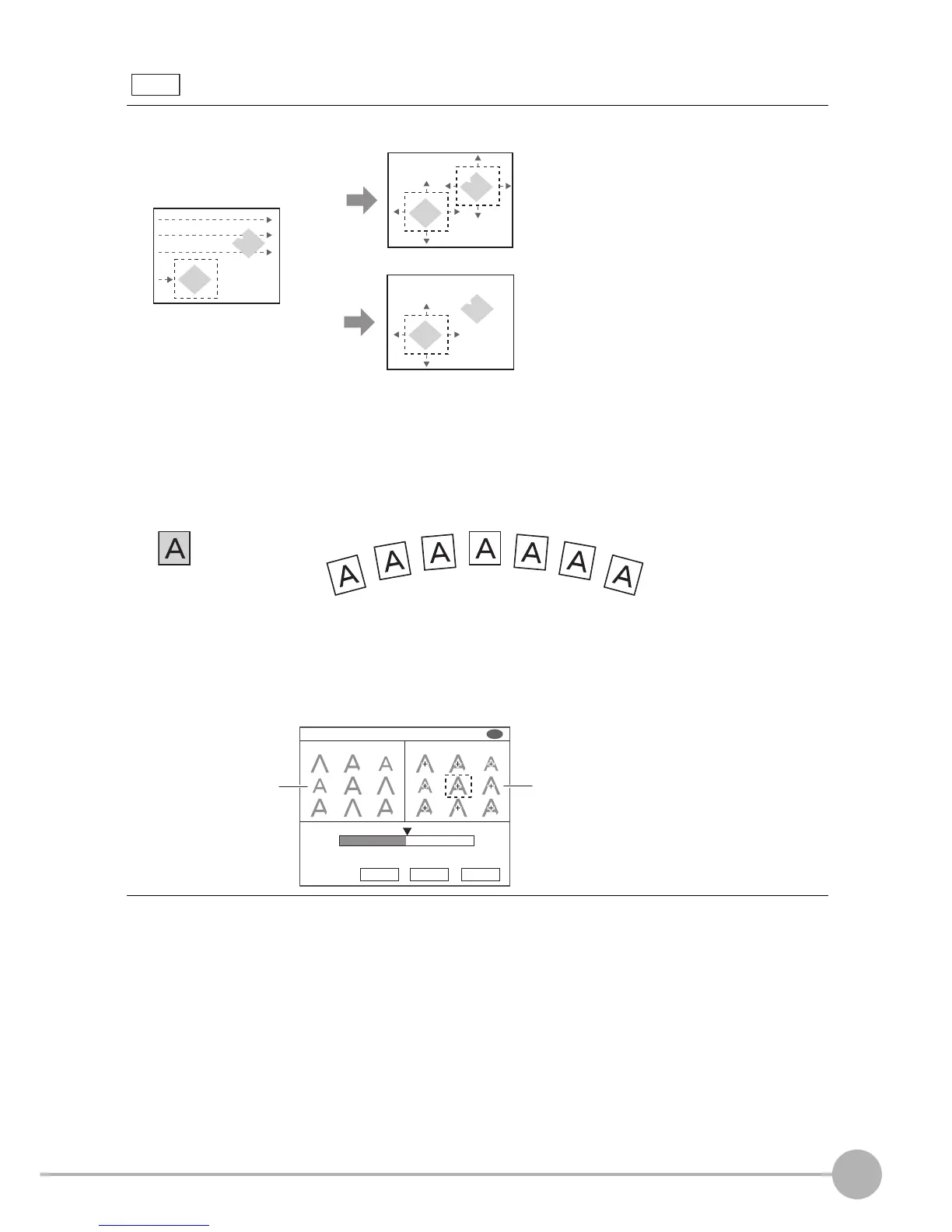

SETTING THE MEASUREMENT CONDITIONS
49
Search Rotation Range
Setting the Candidate level
Models in the range set by Rotation range are created based on the registered model.
The candidate level can be set while checking which part is to be detected as the candidate point. The search takes
longer when there are many candidate points. Adjust the candidate level, if necessary.
Note
Verification ON
+
+
+
+
+
Verification OFF
A rough search is performed in-
side the search region to find the
candidate point.
A detailed search is per-
formed at images near all
candidate points.
A detailed search is performed at im-
ages near the candidate point having
the highest correlation.
Verification and Candidate level
Most similar model among these model is searched for.
Registered model
-15°
-10°
-5°
Reference
5°
10°
15°
Example: When Rotation range is 15° and Skipping angle is 5°
60
Candidate level 5. Pattern Search
CancelApply Capture
SD
Camera 0 LIVE
Camera image
Search candidate
Crosshair cursors are displayed at
candidate level or higher locations.
