Ser
vicing a USB Flash Drive
107
4.

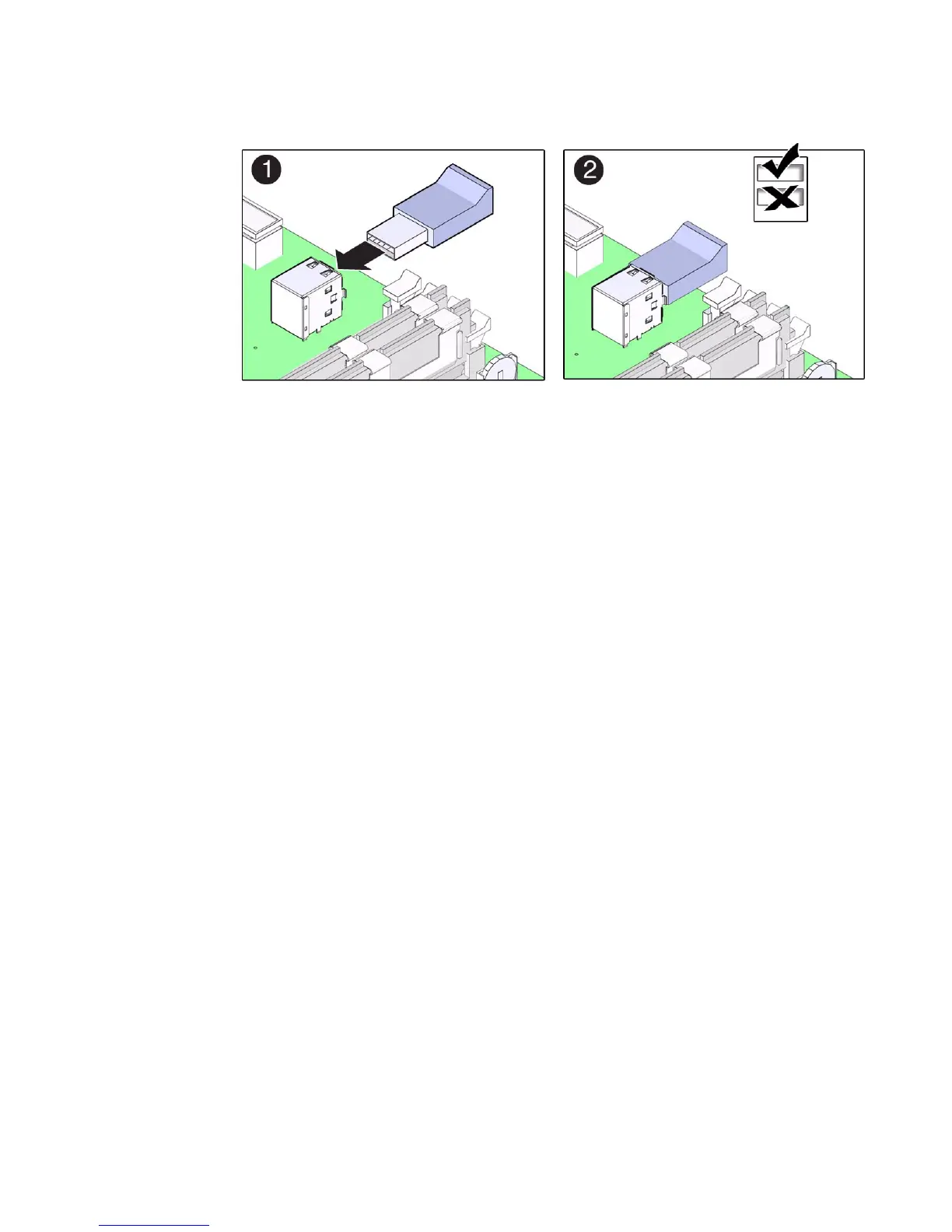

Plug
your
USB
f
lash
drive
into
the
upper
port
of
the
USB
connector
(panels
1
and
2).
Do
not
use
the
lower
port
of
this
connector
.
5.
Return
the
server
module
to
operation.
See
“Returning
the
Server
Module
to
Operation”
on
page
1
17
.
