Ser
vicing Drives
73
▼
Install
a
Drive
Filler
All
drive
bays
must
be
populated
by
either
a
drive
or
a
filler
.

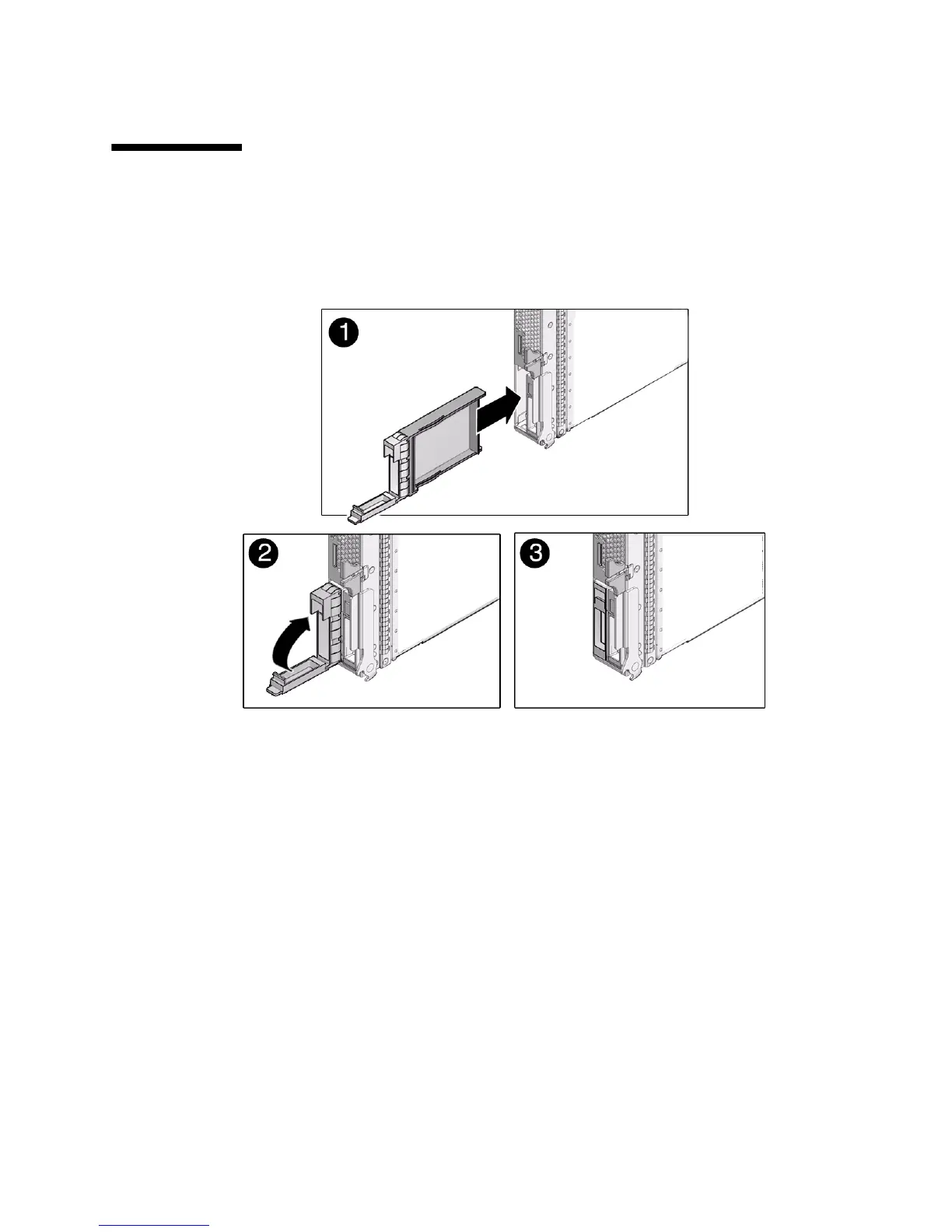

1.
Extend
the
f
iller
handle,
then
align
the
f
iller
to
the
empty
drive
bay
(panel
1).
2.
Push
the
f
iller
into
place.
3.
Close
the
f
iller
lever
(panels
2
and
3).
