Identifying Components 3
Related Information
■ “Front and Rear Panel Components” on page 3
■ “Detecting and Managing Faults” on page 5
■ “Replacing the Server Module Enclosure Assembly (Motherboard)” on page 113

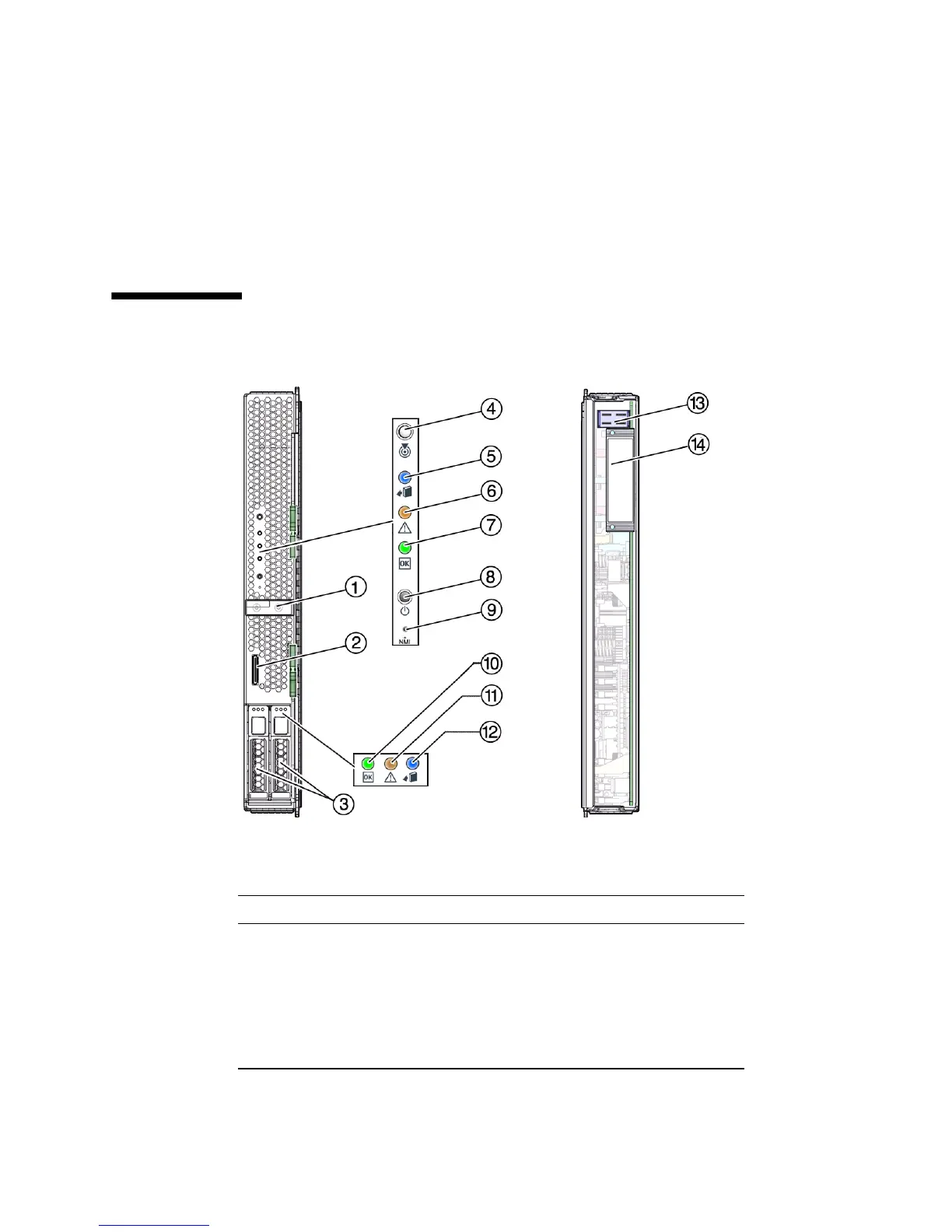

Front and Rear Panel Components
See “Diagnostics LEDs” on page 10 for more information.
No. Description
1 RFID tag (provides the serial number of the server module)
2 UCP
3 Drive slots
4 White LED: Locator (functions as the physical presence switch)
5 Blue LED: Ready to Remove
