62 Netra SPARC T4-1B Server Module Service Manual • June 2012

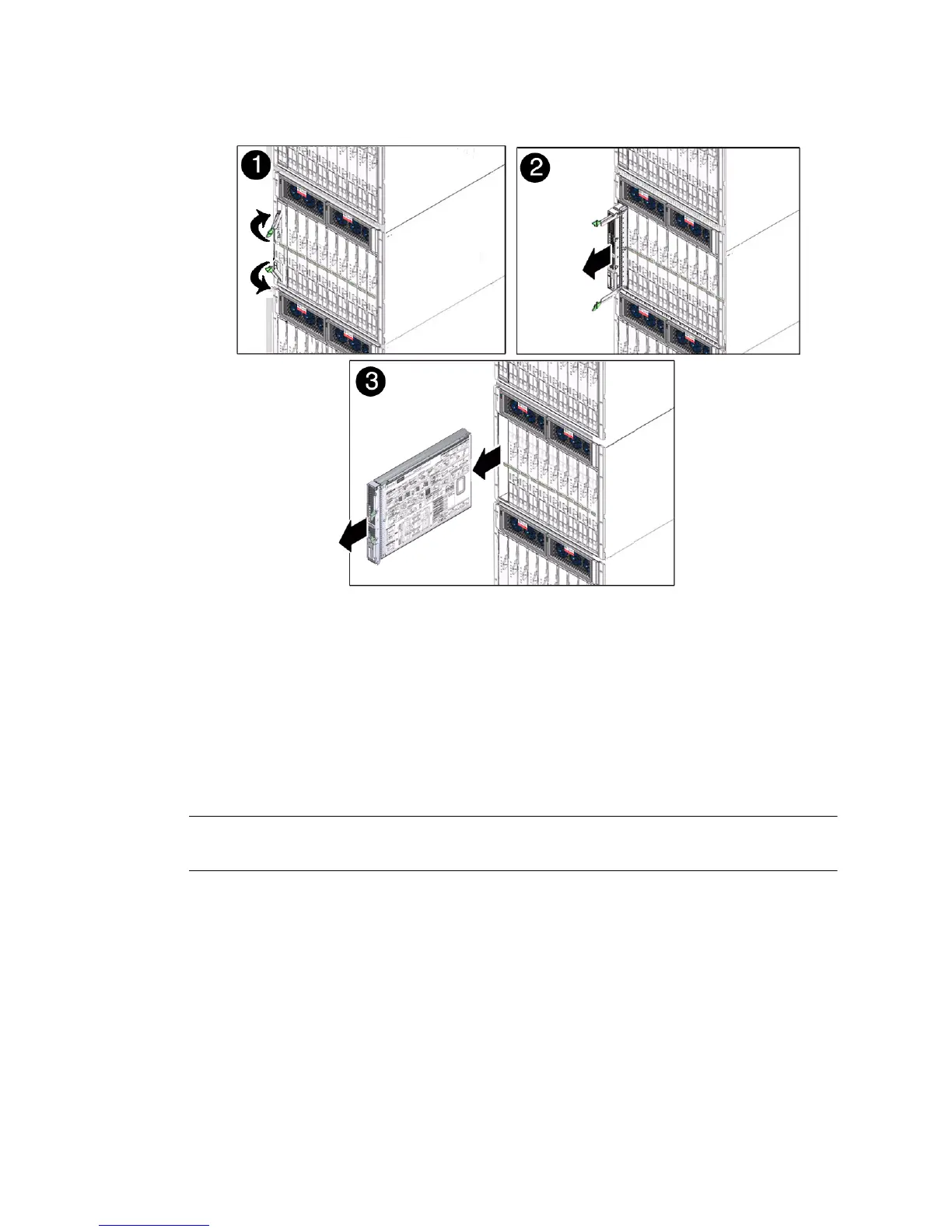

4. Pull the server module out (panel 2 and panel 3).
5. Close the ejector arms.
6. Remove the server module from the modular system (panel 3).
Lift the server module with two hands.
7. Place the server module on an antistatic mat or surface.
8. Insert a filler panel into the empty chassis slot.
Note – When the modular system is operating, you must fill every slot with a filler
panel or a server module within 60 seconds.
9. Remove the server module cover.
See “Remove the Cover” on page 63.
Related Information
■ “Remove the Cover” on page 63
■ “Install the Server Module Into the Modular System” on page 118
