Orion Machine Manual
Revision 1.1 AG 360 RoboWrapper
28 June 2017 Introduction and Safety
Page 1-7
Installation and First Time Power Up
Inspection
1. Remove all packing and supporting additions - these may include the blocks under the
carriage and the restraining bar over the table.
Note:
When removing the packing materials covering the machine, care
must be taken not to cut any of the electrical wires and/ or polyure-
thane covering on the film carriage rollers.
2. Perform a visual inspection of the electrical and mechanical parts for loosened joints
and / or broken connections. Any suspected shipping damage must be reported imme-
diately to the freight carrier. Any transport damage cannot be claimed to Orion Pack-
aging Inc.
3. Check around the tower to ensure that there is no crippling of the movable parts i.e.
casters, center axle or drive assembly.
4. Verify the following:
• Check wires and conduits for crushed sections or loose fittings.
• Verify the film carriage to be sure that it is correctly aligned with the tower
• Verify the tension on the lift belt.
• Verify all the dials and knobs on the control panel for smooth action.
Unloading
This machine can be easily unloaded and transported by a forklift with a minimum capac-
ity of 2500 lbs. This is also useful if the battery power is ever completely depleted.
1. Carefully insert the forks into the lifting tubes to the maximum possible depth. Forklift
access is located on the side of the machine. Look for the forklift tube access stickers
shown below.
2. Lift the machine only to the necessary height to move it with no bouncing or friction
on the floor.

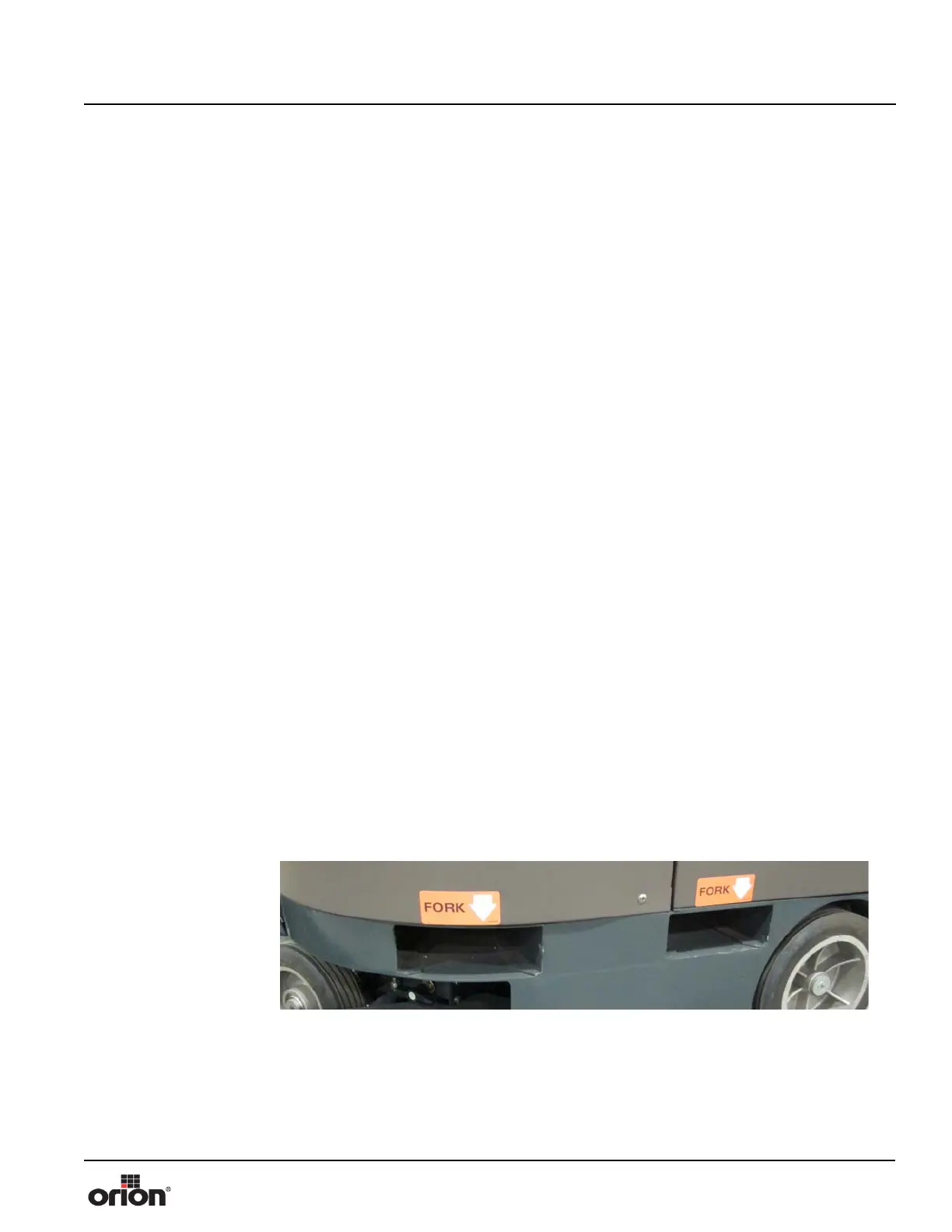

Figure 1 - 1
Fork Tube Access
Locations
