Pallet Guide Arm and Sensing Arm Wheel
Ensure the position of steering arm tension spring is in correct position and smooth turning
movement, and sensing arm wheel is properly inflated. See “Aligning the AG 360 with the
Pallet” on Page 3-5.

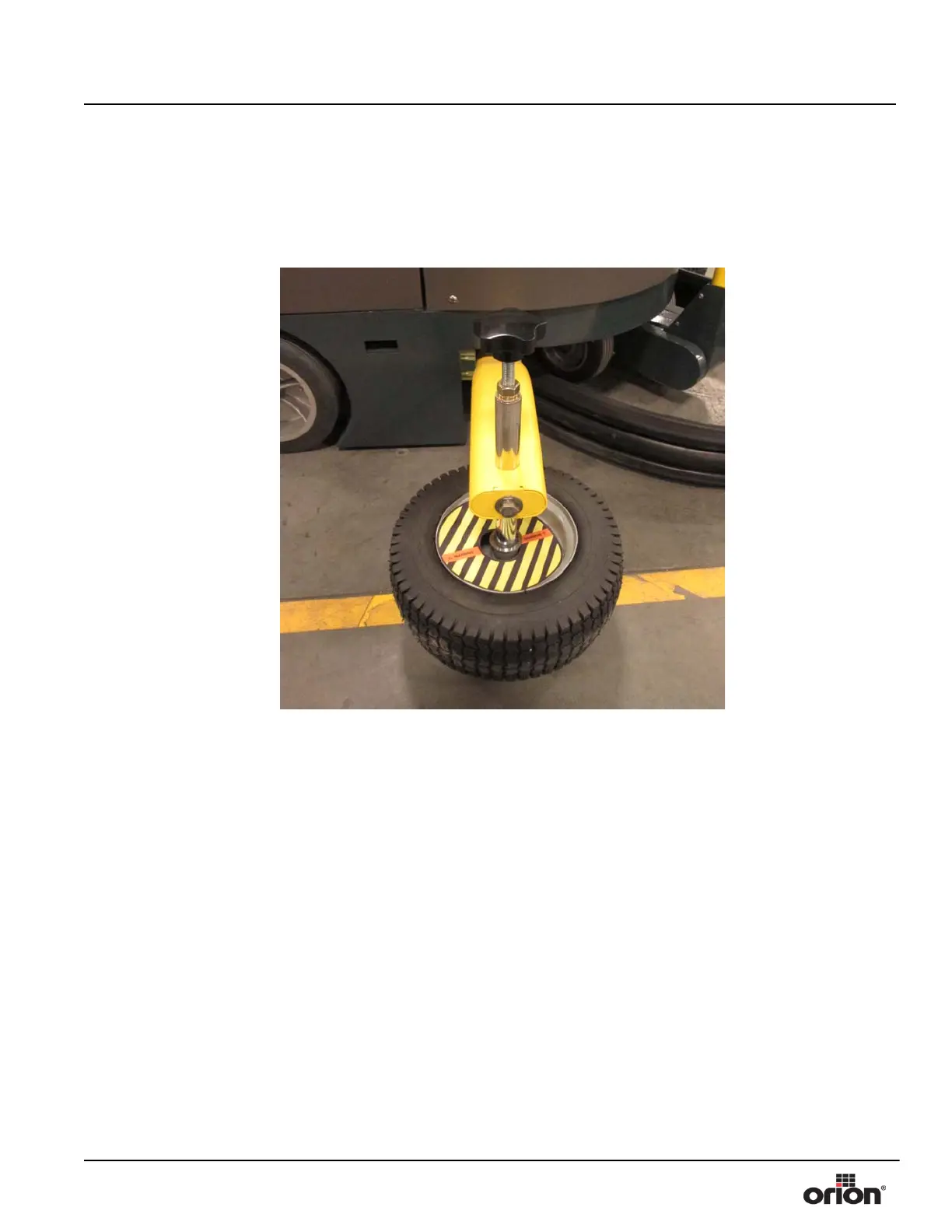

Figure 1 - 9
Pallet Guide Arm and
Wheel
