Machine Manual Orion
AG 360 RoboWrapper Revision 1.1
Maintenance 28 June 2017
Page 5-4
Carriage Lift Chain Adjustment
Remove the tower cover ( A ) adjust the screw, and ( B ) adjust the chain deflection ( R )
within these parameters: 10 - 15mm (3/8” - 5/8”).
Chain Maintenance
To clean the stretch chain, wipe it with an oily cloth once per quarter. When machine is
working in a dusty and damp environment, it may be necessary to repeat the cleaning
operation more often. Regarding chain lubricants please use the most common chain lubri-
cants on the market. With time, the chain will tend to stretch.The tower is equipped with
automatic chain tensioner and does not need any adjustment.
Note:
First chain tension inspection must be done after the first two weeks
of machine usage.
Tower Raceways Maintenance
The film distributor (carriage) is sliding on the plastic guides attached behind its back
plate. The section of the tower on which the plastic guides move (raceways) should be
cleaned and re-greased approximately every 600 hours of machine operation.
Note:
If the machine works in a dusty and corrosive environment, the race-
ways should be re-greased more often (at least every 100 hours).

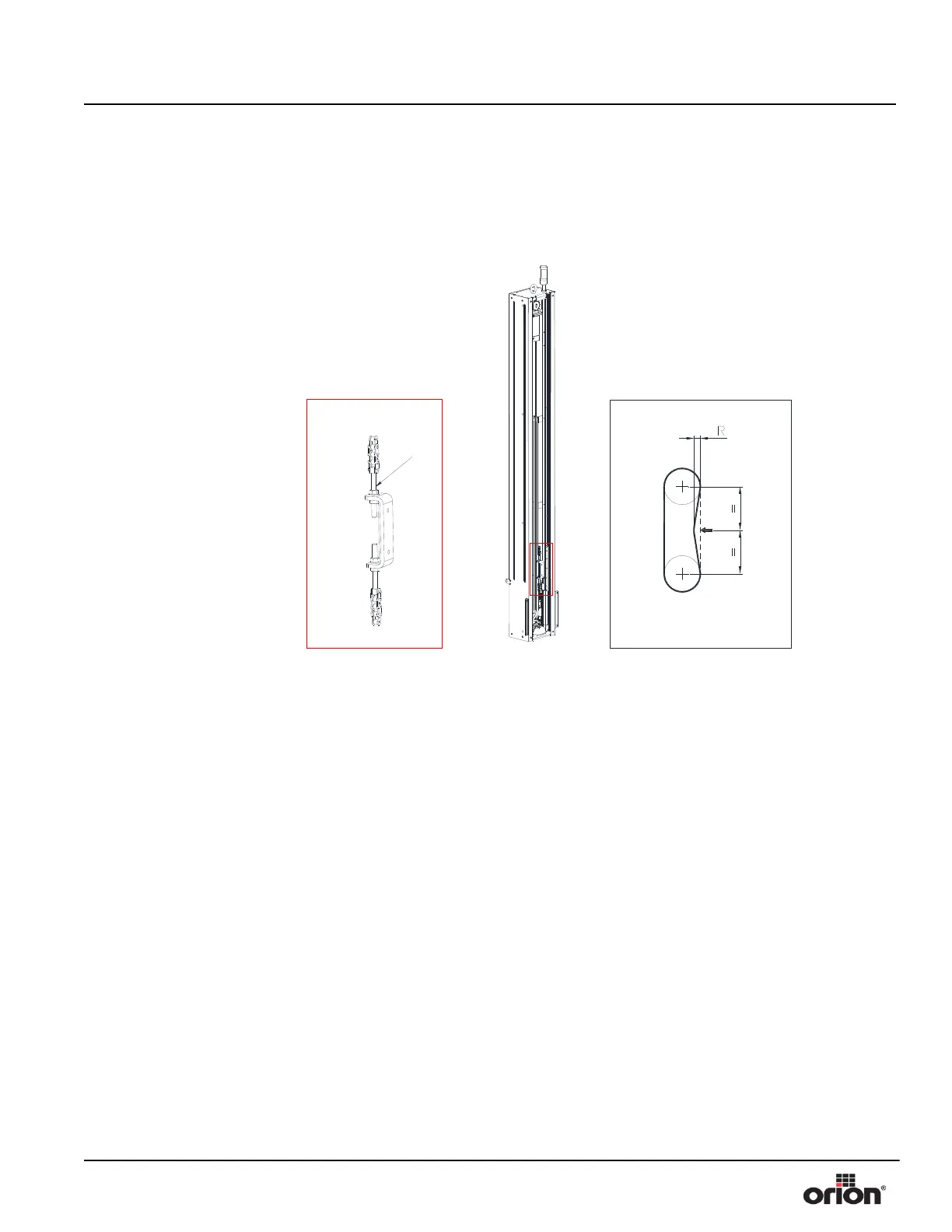

Figure 5 - 7
Carriage Lift Chain
Adjustment
To Next Page
