Recipe Screens
Recipe Screen
This is the Recipe screen. This screens allows the user to select different wrap recipes
quickly. Changes made to a recipe are saved to the active recipe.

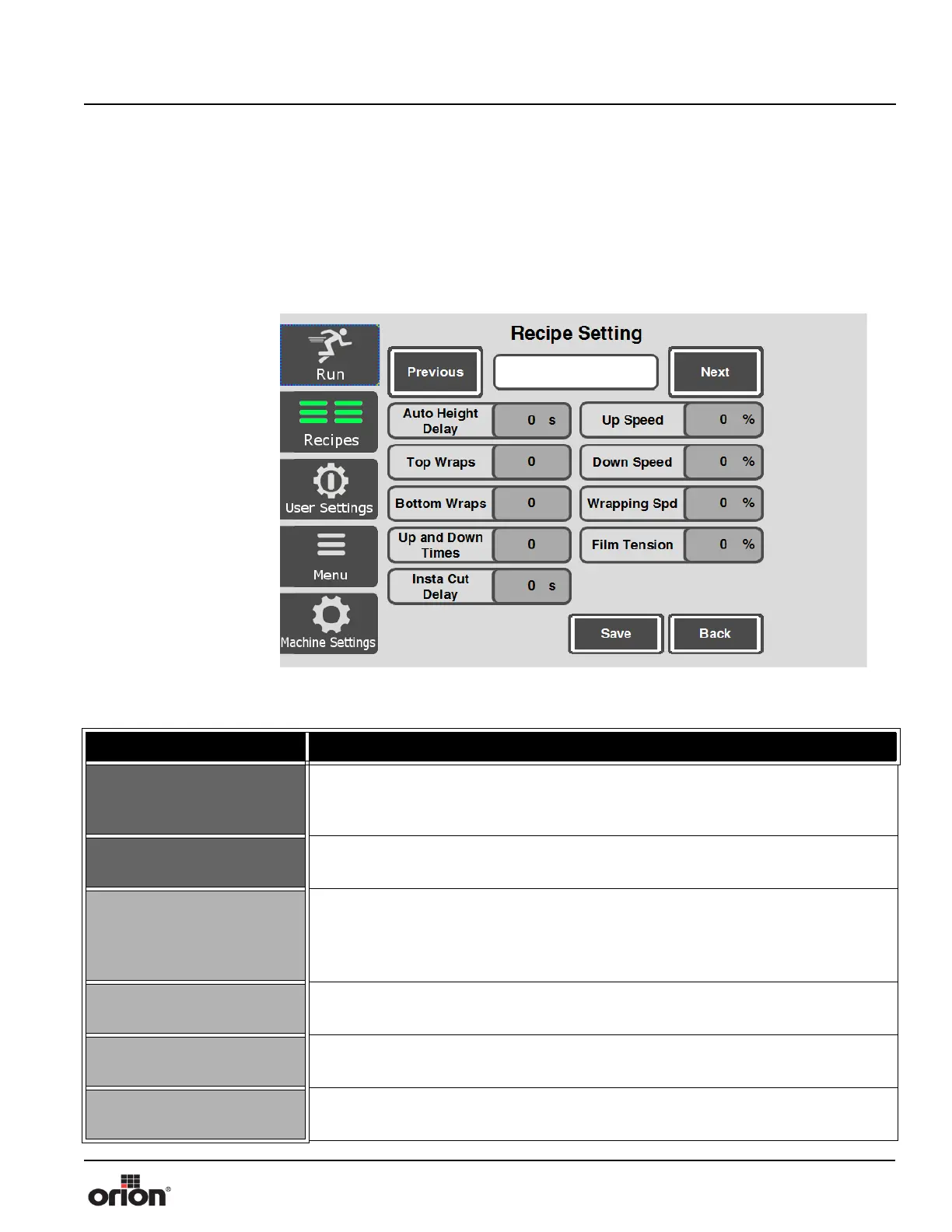

Figure 3 - 16
The Recipe Screen
Table 3-3. The Recipe Screen Button Descriptions
STATE 1 DESCRIPTION
PREVIOUS
Press this button to go to the previous recipe. The settings on this screen are applied
to the recipe displayed in the box at the top of the screen when the save button is
pressed.
NEXT
Press this button to go to the next recipe. The settings on this screen are applied to
the recipe displayed in the box at the top of the screen.
AUTO HEIGHT DELAY
Press this button to modify the Autoheight Delay value, in terms of milliseconds.
This value determines the amount of time that the Carriage will continue to travel
up during the wrap cycle after the Autoheight photoeye no longer detects a load.
This is used to adjust the amount of overlap on the top of the load.
TOP WRAPS
Press this button to set the number of top wraps applied to the load. Parameters are
1-20.
BOTTOM WRAPS
Press this button to set the number of bottom wraps applied to the load. Parameters
are 1-20.
UP AND DOWN TIMES
Press this button to set the number of times the carriage will travel the up/ down
cycle. Parameters are 1-20.
