Orion FLEX Series User Manual

Machine Manual Orion
AG 360 RoboWrapper Revision 1.1
System Operation 28 June 2017
Page 3-6
Loading The Film
The film roll can be loaded on the carriage mandrel from either end of the roll. When
using tacky film, please verify that the tacky surface of the film is inward on the load.
1. Press in the E-stop.
2. Slide the film spool onto the film mandrel.
3. Install the top mandrel on top of the roll to prevent upward movement.
4. Turn the carriage door latch and pull out on the carriage door handle on the top of the
carriage to open the carriage. The film carriage is equipped with a switch that detects
when the carriage threading door is open. When opened, it will set off an alarm on the
HMI and prevent the carriage from moving.
5. Pass the roped tail of the film through opening.
6. Close the carriage door. Turn the carriage door latch.

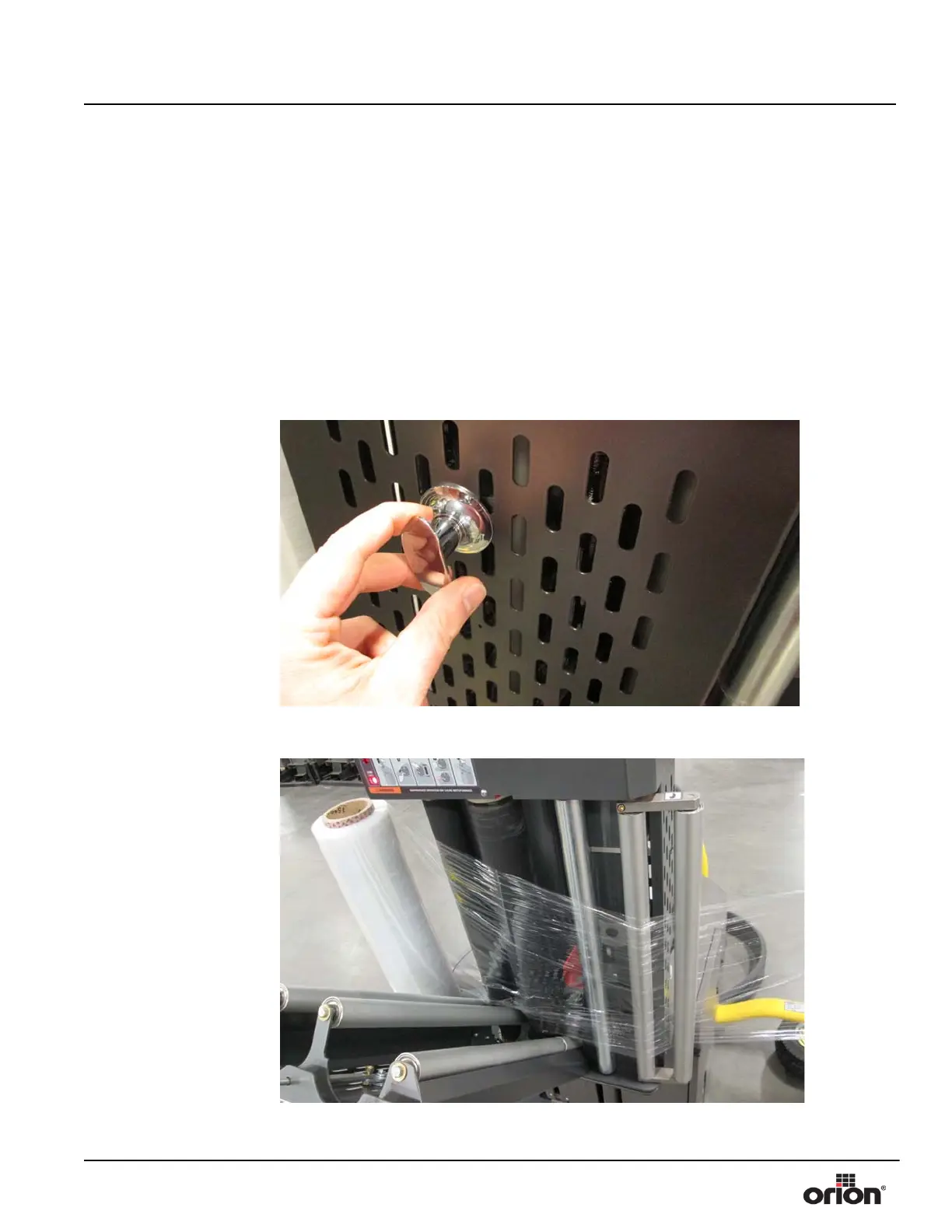

Figure 3 - 8
Door Latch
Figure 3 - 9
Loading the Film
