Machine Manual Orion
AG 360 RoboWrapper Revision 1.1
Troubleshooting 28 June 2017
Page 4-2
Main Breaker Electrical Disconnect/ Hard Reset
If the machine is fully charged and all battery connections are OK, but there is no machine
power, the main breaker could be off. The main breaker is located behind the right side
panel. This switch also serves as a hard reset if there are issues that are not clearing with
conventional troubleshooting methods.
1. Use the provided key to unlock the side panel.
2. To allow operation, ensure that the main disconnect is in the on position.
3. To perform a hard reset, turn the main disconnect off, wait 10 seconds, then turn the
main disconnect to the on position.

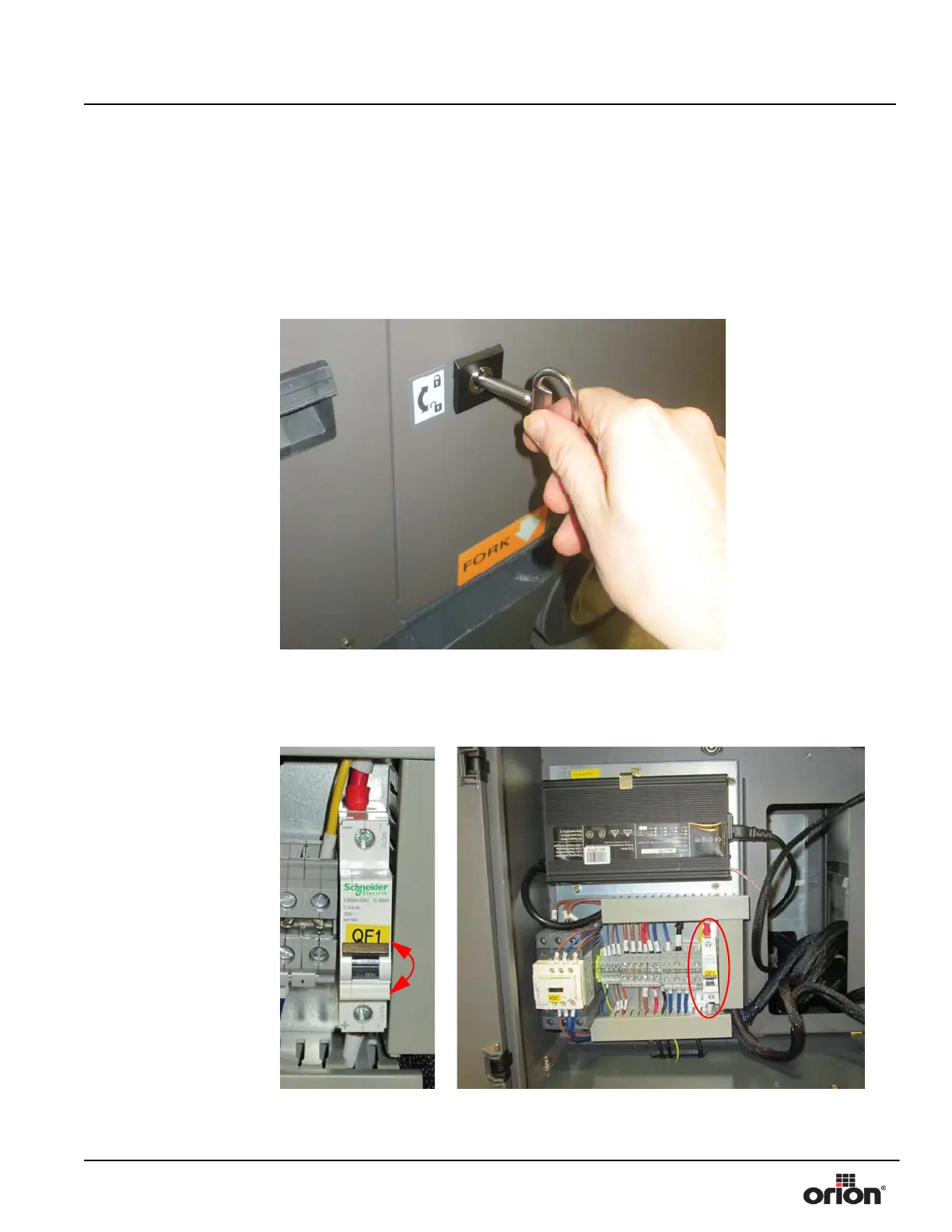

Figure 4 - 3
Opening the Panel
Figure 4 - 4
Main Disconnect
