Machine Installation
• After the visual inspection has been completed, the electrical power shall be con-
nected as specified on the diagrams supplied with the machine for charging.
• Make sure the machine is operating on a hard and level surface.
Assembly Procedure
1. Secure the ring "A" above carriage with a chain for lift up purpose.
2. Remove two side's marked fixed bar "B"
3. Lift up the tower with a lifting strap attached to the eye bolt.

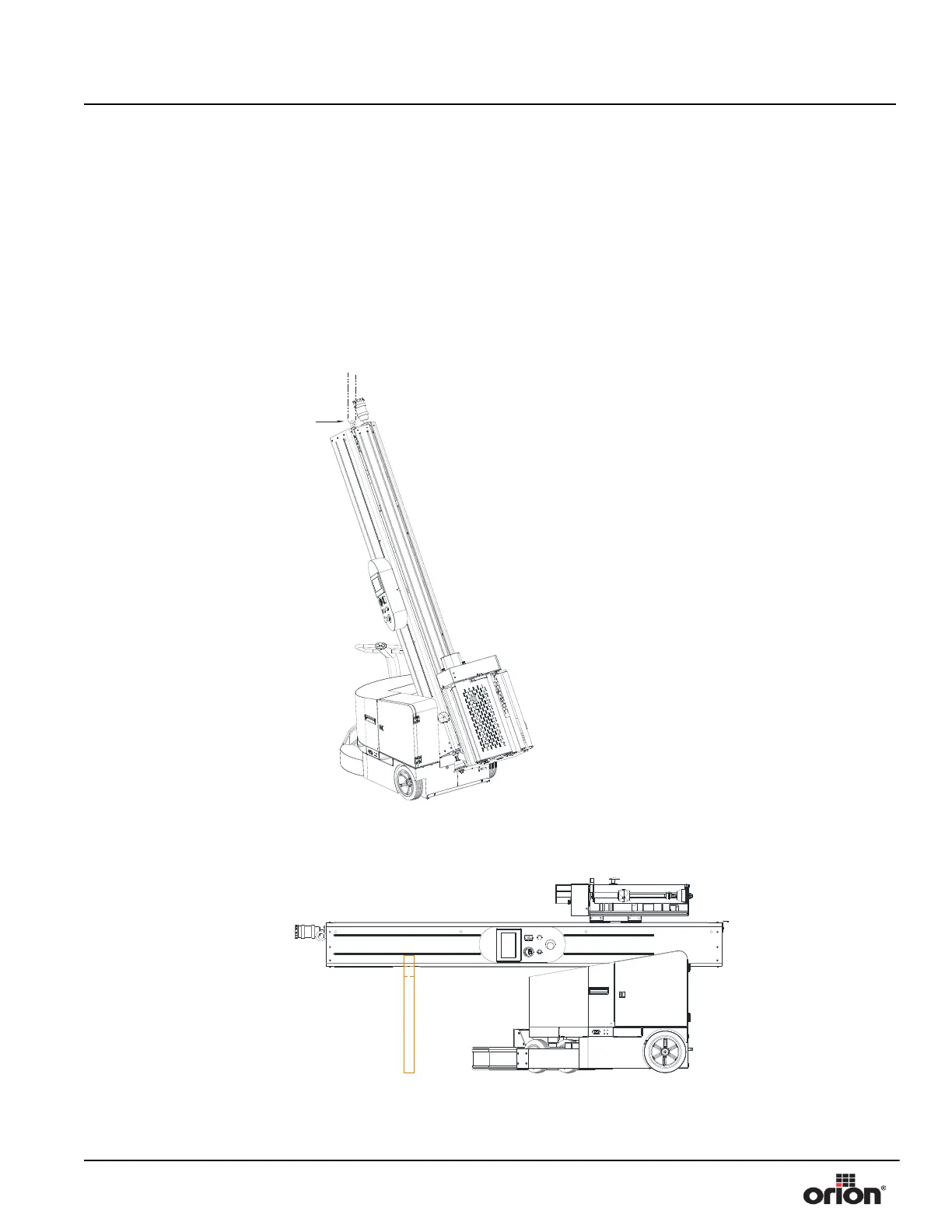

Figure 1 - 2
Securing the Lifting
Eye Bolt
A
Figure 1 - 3
Remove Tower
Horizontal Bracket
