Machine Component Identification

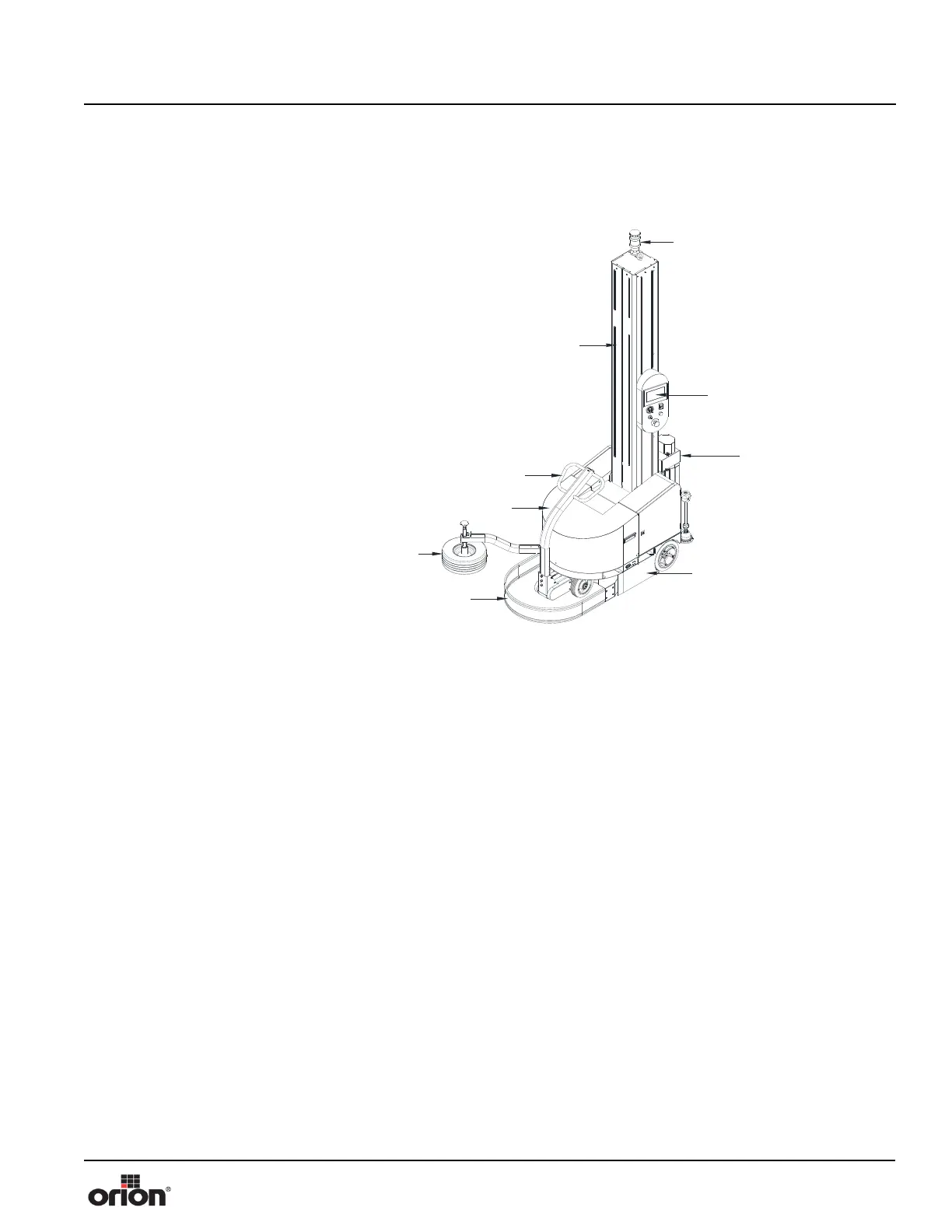

The layout drawing below shows the machine dimensions, as sold.
Figure 2 - 2
Machine Layout
Drawing
Warning lamp
Spool carriage
Machine body
Control electronic device
Slide guide mast
Steering arm
Internal battery charge
Sensing arm wheel
Safety bumper

Orion FLEX Series Specifications

General

Brand	Orion
Model	FLEX Series
Category	Stretch Wrapping Systems
Language	English
