Orion FLEX Series User Manual

Machine Manual Orion
AG 360 RoboWrapper Revision 1.1
System Operation 28 June 2017
Page 3-8
Carriage Prestretch Adjustment
1. Switch the power off and remove the pre-stretch cover.
2. Push the safety lock in and then use the handle to adjust the prestretch percentage. Lift
up the handle for high prestretch percentage or lower down to for low prestretch per-
centage.

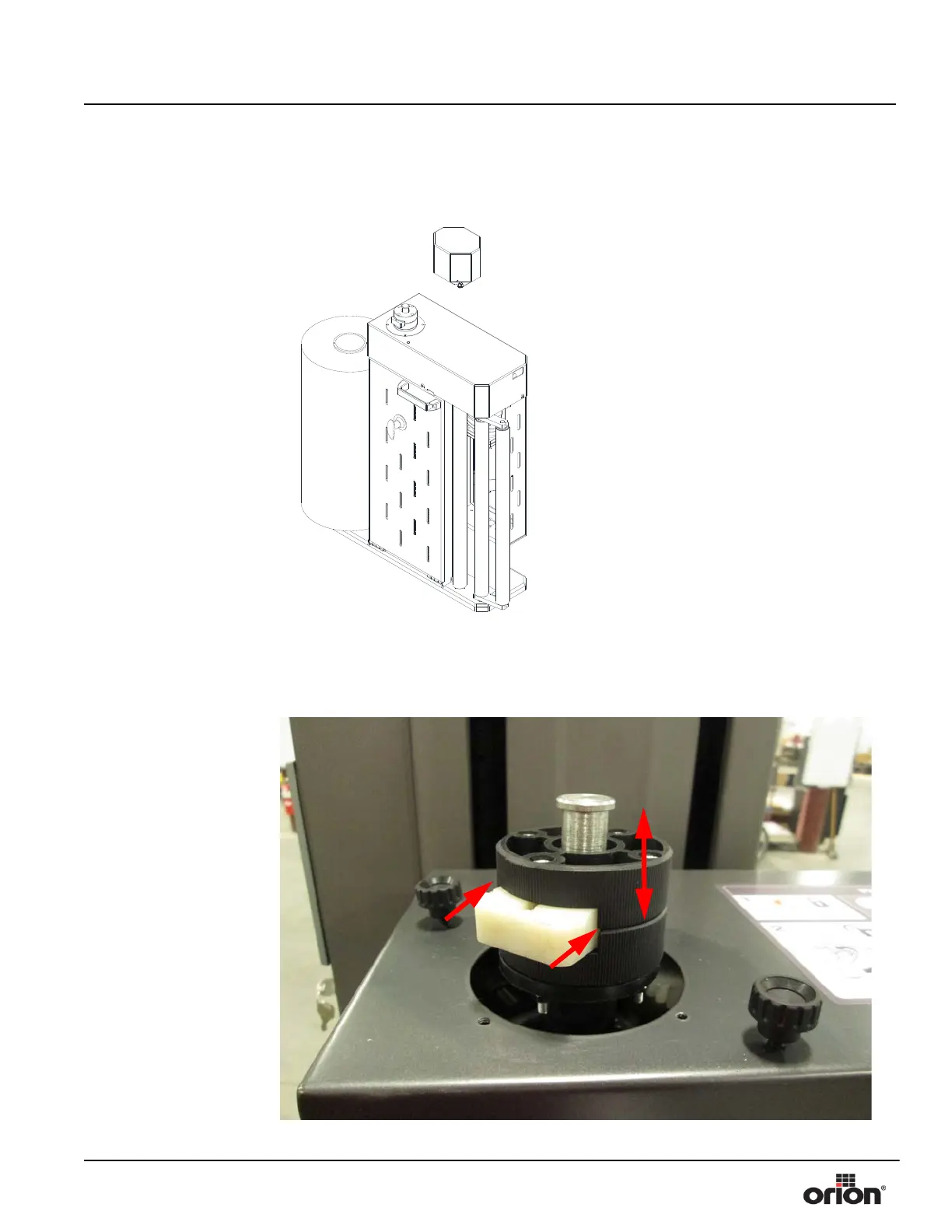

Figure 3 - 11
Removing the Pre-
Stretch Cover
Figure 3 - 12
High and Low Ratio
Adjustment
