Machine Manual Orion
AG 360 RoboWrapper Revision 1.1
System Operation 28 June 2017
Page 3-2
How to Start and Shut Down Your Wrapping System
On/ Off Key Switch
Located on the panel door, the lockable power key switch has two settings:
• ON - machine power on.
• OFF - machine power off.
Note:
You can remove the key to prevent unauthorized use of the
machine.
START AND EMERGENCY STOP SWITCHES
• Press the RESET button to gain Control Power prior to starting or moving the
machine.
•The START button on the run screen is used to start the cycle once the load is avail-
able.
• The cycle may be stopped at anytime by pressing the E-STOP button.
The FLEX series machines are engineered to give the operator different levels of opera-
tion, the front panel or USER settings, and MENU DRIVEN parameters. The menu driven
parameters offer even more flexibility and security.

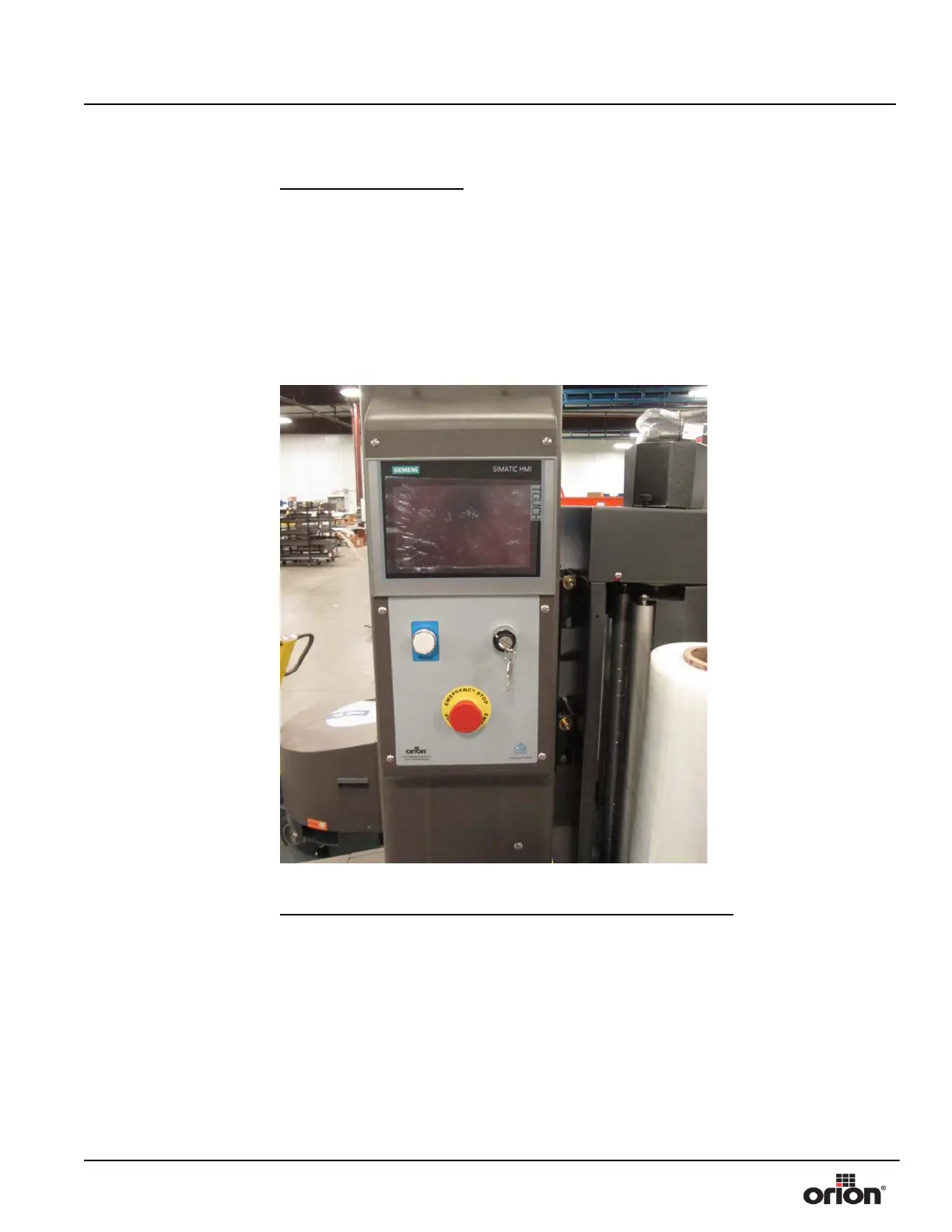

Figure 3 - 2
The Operator Panel
