Machine Manual Orion
AG 360 RoboWrapper Revision 1.1
Maintenance 28 June 2017
Page 5-2

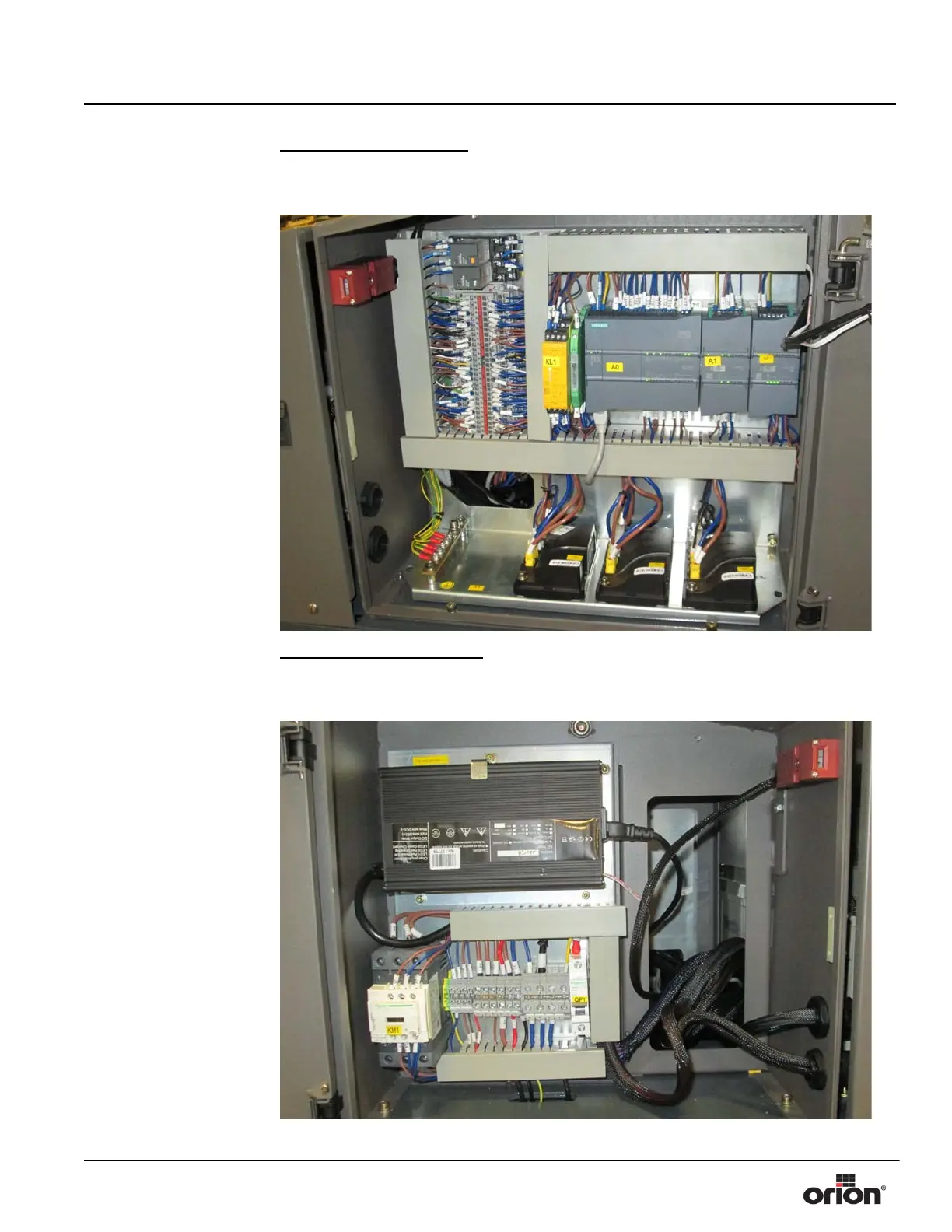

Left Side Enclosure
The left enclosure contains the PLC and drives along with terminal blocks.
Right Side Enclosure
The right enclosure contains the power supply, VFD, and terminal blocks.
Figure 5 - 3
Left Side Electrical
Enclosure
Figure 5 - 4
Right Side Electrical
Enclosure
