3) Indoor unit forced thermostat off setting (Level 2)
Press the SET (S007) key during indoor unit thermostat status display.
(Example: No. 1 - 24 units connected) Note: 1 dot at lower right
Lit : Normal status unit
Flashing : ● 1-sec. cycle fl ashing indicates thermostat-off unit numbers
● 0.5-sec. cycle fl ashing indicates forced thermostat-off status unit numbers
● High speed fl ashing indicates selected unit to perform setting
Setting unit
Forced thermostat-off setting method : Press the SET (S007) key for one second when forced thermostat-off
is not set. (TEST/WARNING LED light)
Forced thermostat-off release method : Press the SET (S007) key for one second when forced thermostat-off
is set. (TEST/WARNING LED off)

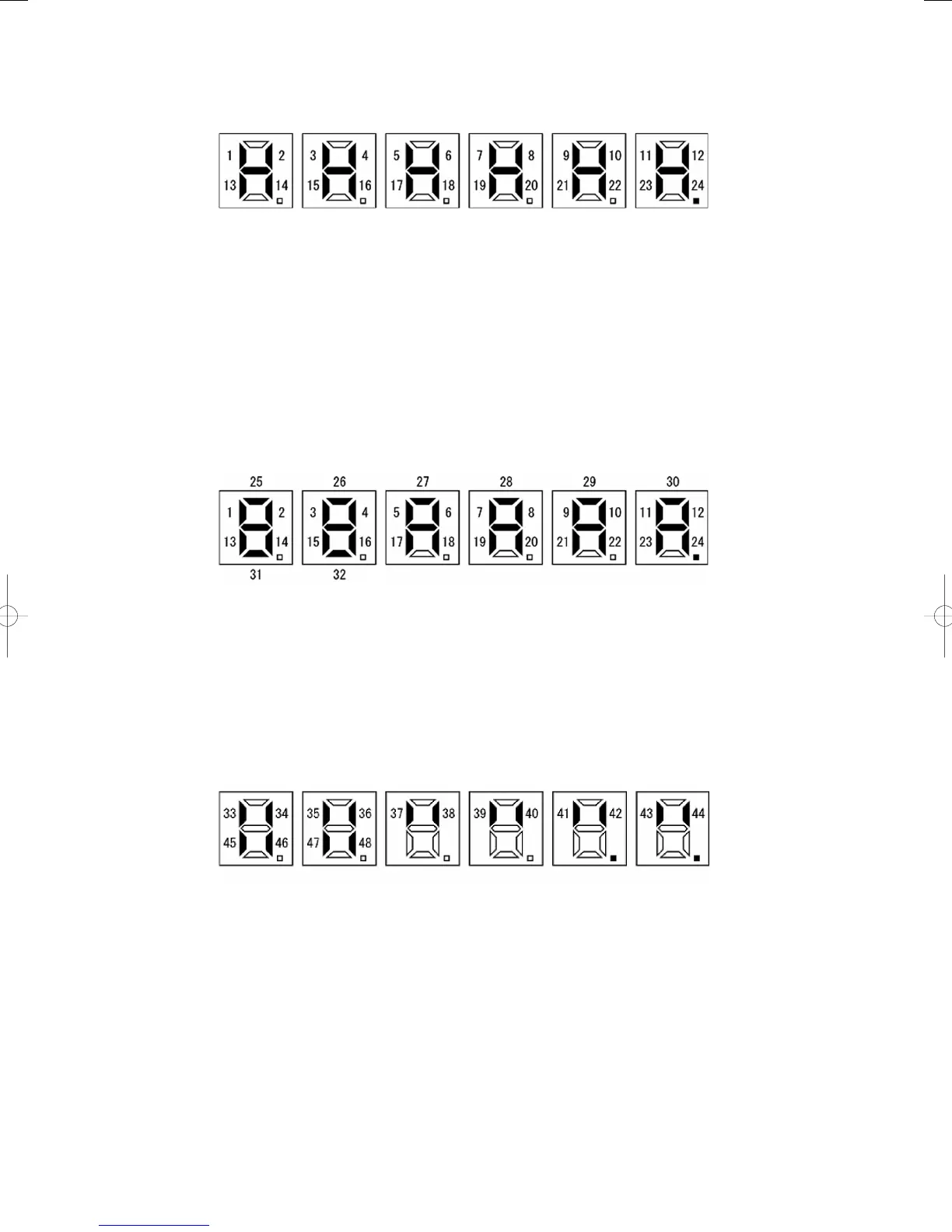

Display examples
No. 1 to 32 units connected
Note: 1 dot at lower right
1 to 12 units from upper left to upper right of vertical line
13 to 24 units from lower left to lower right of vertical line
25 to 30 units from top left to top right of horizontal line
31 units, 32 units from bottom left horizontal line
Operate the UP (S005) and DOWN (S006) keys.
If the number exceeds 32 units, automatically No. 33 to 48 units are displayed.
No. 33 to 48 units connected
Note: 2 dots at lower right
33 to 44 units from upper left to upper right of vertical line
45 to 48 units from lower left to lower right of vertical line
Note: The example above displays up to 48 units, but the number of indoor units that can be connected is
restricted separately by each model.
