V–46

Correction for distorted amount
If the value is different than that displayed by “

” (engine ignition timing) set in item (

) above, select
“

.” (ignition timing offset) in “

” engine settings, and correct for the distorted amount.
1) Press the HOME key (S004) for one second or
more.

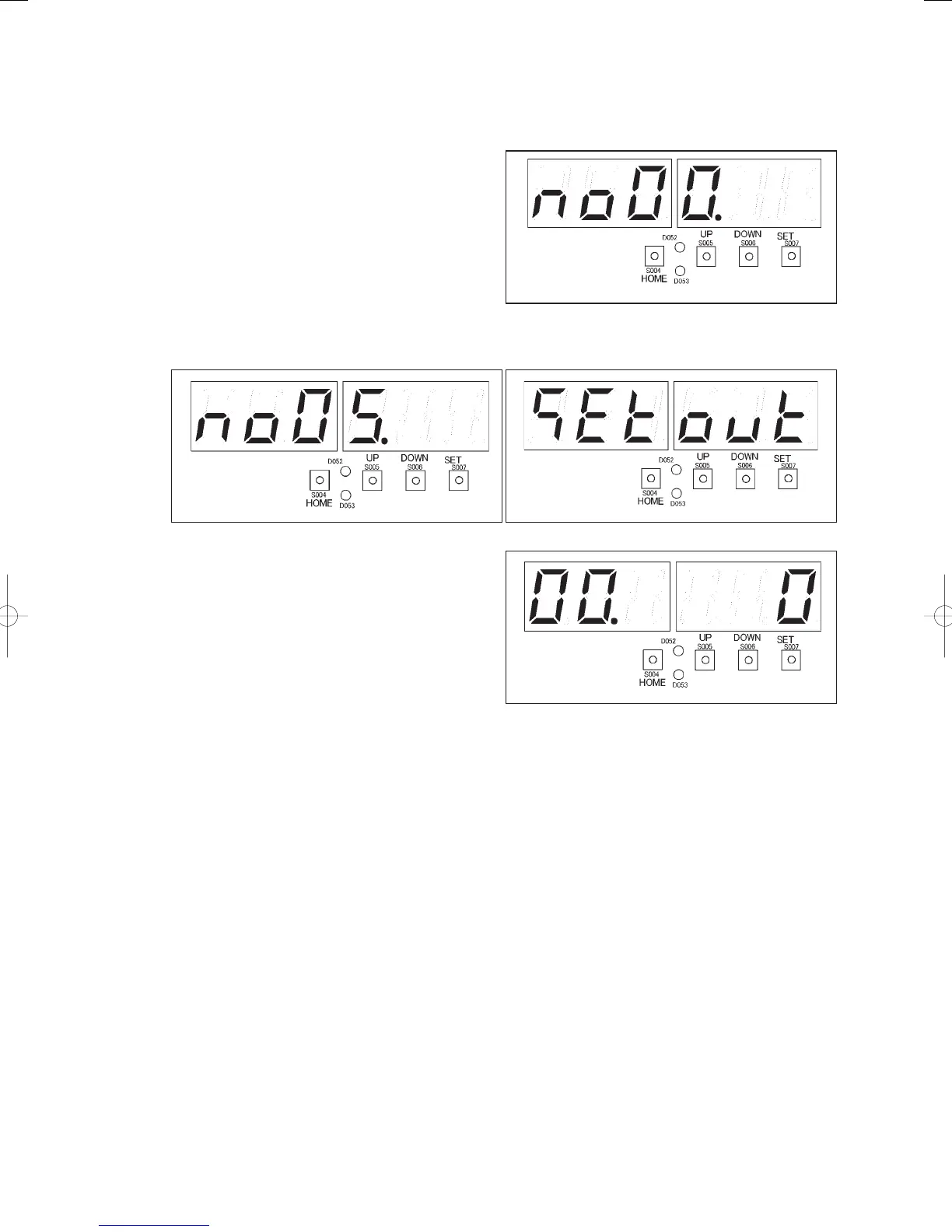

Menu item number “

”(right fi gure) will be
displayed.
2) Press the UP (S005) or DOWN (S006) key, displaying the menu item numbers. Select menu item “

”
in the fi gure below. The display “
 
” (fi gure below) will appear.
3) In this state, press the SET key (S007).
The display will change to “
 
” (right fi gure)
and the LEVEL LED (D053) will light.
4) Next, press the UP (S005) or DOWN (S006) key, to display “

” (ignition timing offset).
