6) Press the SET key (S007). The LEVEL LED (D053) will light, and the status with the engine rotating at the
forced (set) speed will be displayed at one-second intervals, as shown below.
Display Item

(10.1400) Forced engine rotational speed (example: 1400 min
-1
)

(11.1400) Engine rotational speed (example: 1400 min
-1
)
 
(12.0.56) Compressor inlet pressure (Example: 0.56MPa)
 
(13.0.56) Compressor outlet pressure (Example: 0.56MPa)
 
(15.85.0) Compressor outlet temperature (Example: 85.0°C)
7) In this state, press the UP (S005) or DOWN (S006) key to set the engine rotational speed to 800 [min
-1
].
Press the SET key (S007) for one second or more, to confi rm the set engine rotational speed. The TEST/
WARNING LED (D052) will light.
Caution: The forced engine rpm can be set within the range from the minimum speed to the maximum speed
governed by the engine, in units of 100 revolutions.

Ignition timing check
When the operation conditions stabilize, select “

” operation data display, and display “

” (engine
ignition timing). Check that this value is the value shown in table 1.

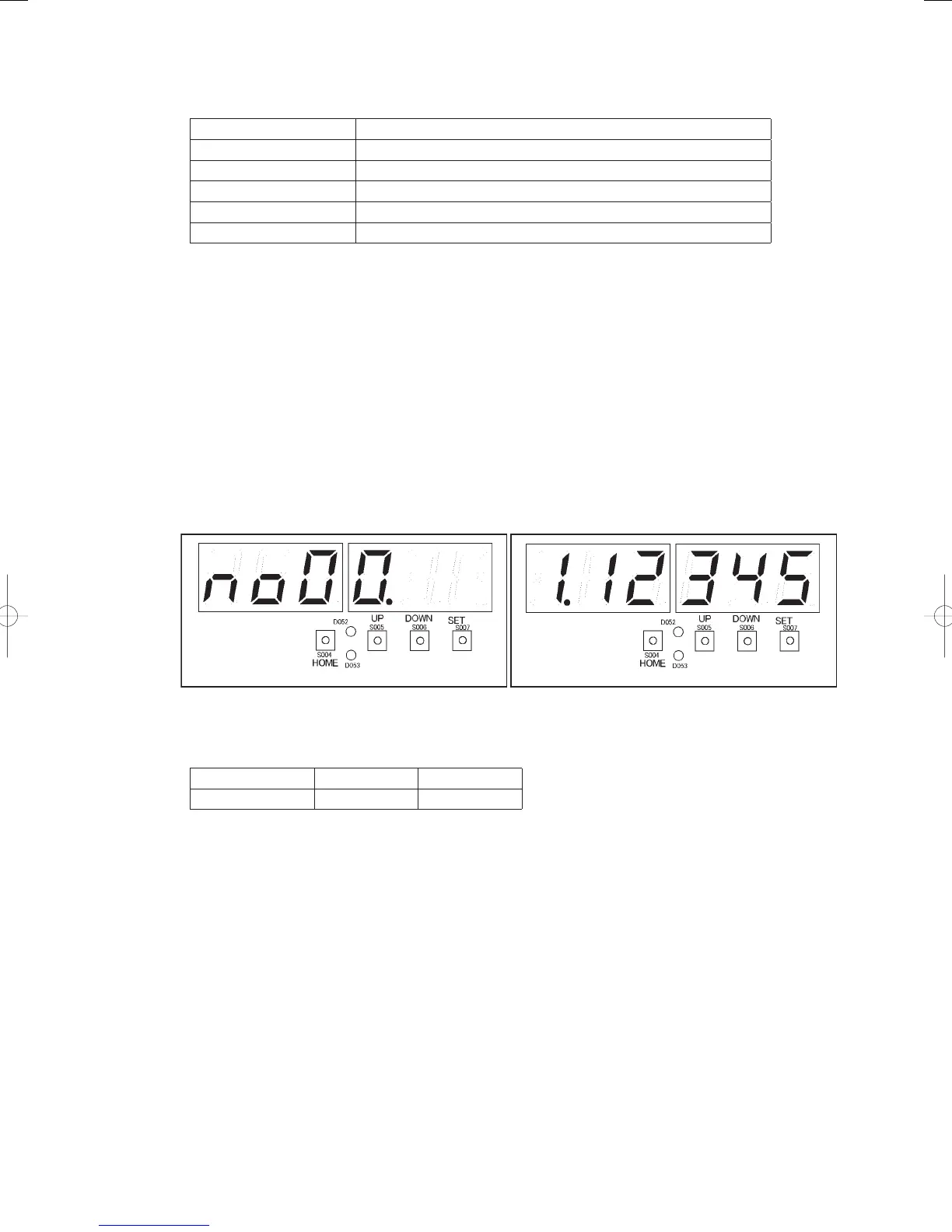

1) Press the HOME (S004) key for one second or more. Menu item number “

” (fi gure below) will be
displayed. The TEST/WARNING LED (D052) will light. After that, “

” (as in the example below
where the engine has 12345 operating hours) will be displayed. The TEST/WARNING LED (D052) will
light. In this state, press the SET (S007) key.
The LEVEL LED (D053) will light.
2) Press the UP (S005) or DOWN (S006) key to display “

” (engine ignition timing). Check that this value
is the one shown in table 1 below.
Table 1 Ignition timing adjustment value: at 800 [min
-1
] (K21, K25).
G (propane) G(13A•12A)
K21, K25 engine 10˚BTDC 10˚BTDC
3) Attach the timing light on the high-tension wire for the no. 1 cylinder of the engine, and check the ignition
timing (refer to table 1 above). Compare it to the “

” (engine ignition timing) value displayed in 2) above.
