Expanding Memory

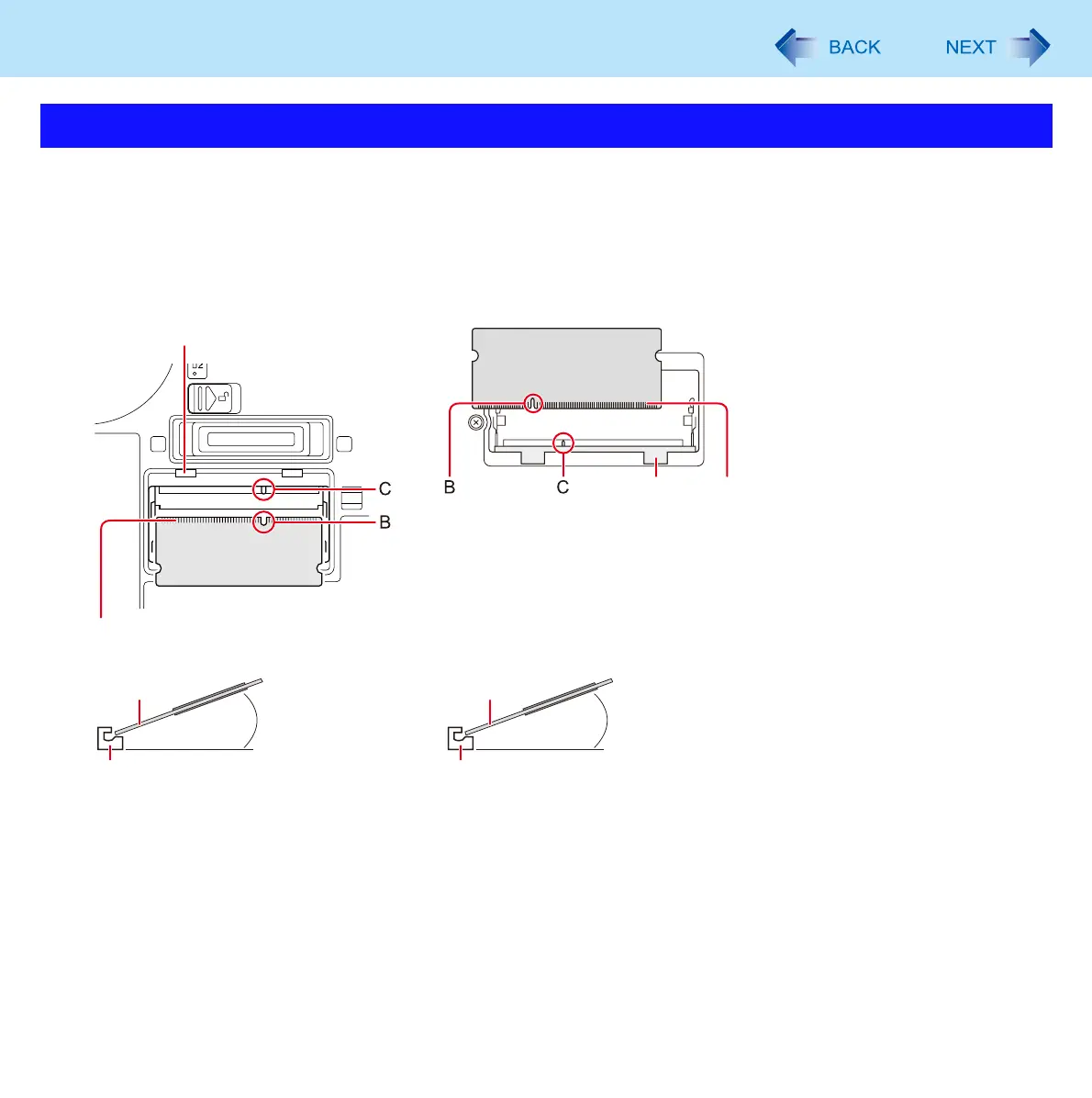

1 Place the RAM module lightly in parallel with the RAM module slot so that the notch (B) of
the RAM module and the protrusion (C) of the RAM module slot is in the same direction.
The gold terminals are visible at this point.
RAM module is at an angle of 20
° - 30° with the horizontal line.
Inserting the RAM Module
RAM Module
Slot
Gold
Terminals
RAM Module Slot
Gold Terminals
<CF-C1 Series> <CF-F9 Series>
RAM Module
Slot (Side image view)
20° - 30°
RAM Module
Slot (Side image view)
20° - 30°
