All units are programmed using the Addressing Tool 4414 or 4414E, the 1201 requires
24VDC to be applied for addressing the module. All modules are required to be addressed
in “Advanced Mode” setting on the Addressing Tool. These units must also be configured
with EBLWin ≥ V2.4.x for the FDCIE to recognise them.
1200 – SUB997: Single supervised input / single relay output. Used where a single device
needs to be triggered (output) and a return signal is required to report the action has been
carried out (input), e.g. a sprinkler flow switch. Requires one address on the COM loop.
1201 – SUB983: Four supervised inputs / four supervised voltage outputs. Inputs similar
to 1200 input with supervised voltage outputs. Each voltage output is rated to 1 Amp,
requires external 24V supply from the FDCIE or from external power supply. Requires one
address on the COM loop.
1202 – SUB994: Four supervised inputs / four relay outputs. Due to the latching function
of the used relays, the board doesn’t need external 24V supply. Requires one address on
the COM loop.
1203 – SUB991: Eight non-supervised inputs / Eight relay outputs. Requires external 24V
supply and two addresses on the COM loop.

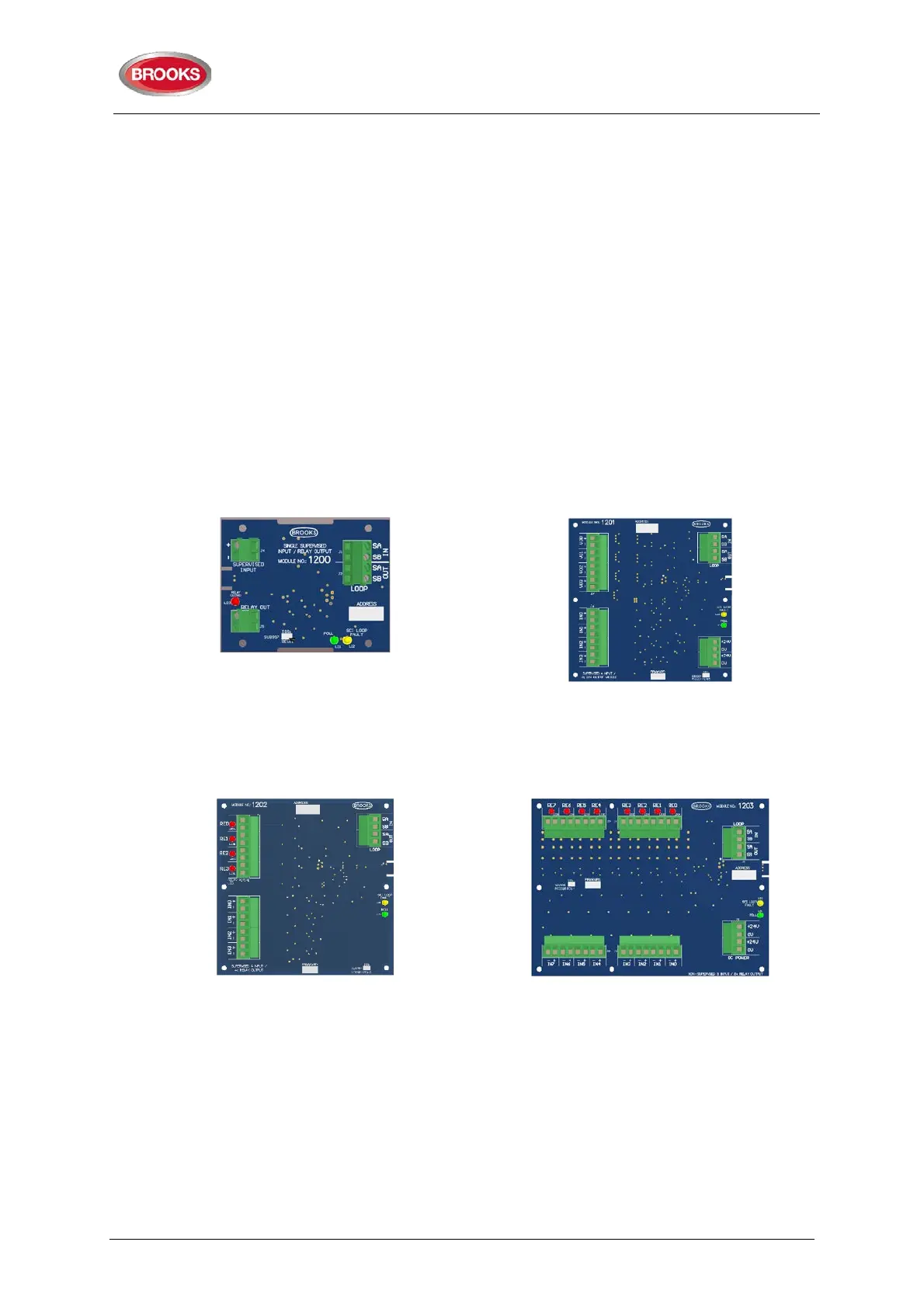

Figure 21 SUB997 Single Supervised
Input / Single Relay Output
1200
Figure 22 SUB983 4 Supervised Input / 4
Supervised 24V Output
1201
Figure 23 SUB994 Four Supervised
inputs / four latching relay outputs
1202
Figure 24 SUB991 8 Non-supervised Input /
8 Relay Output
1203
Any one of the Field Modules 1201, 1202 or 1203 can fit in an optional Small Field
Module Enclosure BAFMES measuring 240mm x 160mm x 70mm. Any two of the Field
Modules 1200, 3361/4461/4462 or 3364 can be fitted in BAFMES,
There is also a larger version available, BAFME - Field Module Enclosure measuring
330mm x 240mm x 70mm which can accommodate 2 x 1201, 2 x 1201 or 2 x 1203 or 4 x
1200, 4 x 3361/4461/4462 or 4 x 3364.
