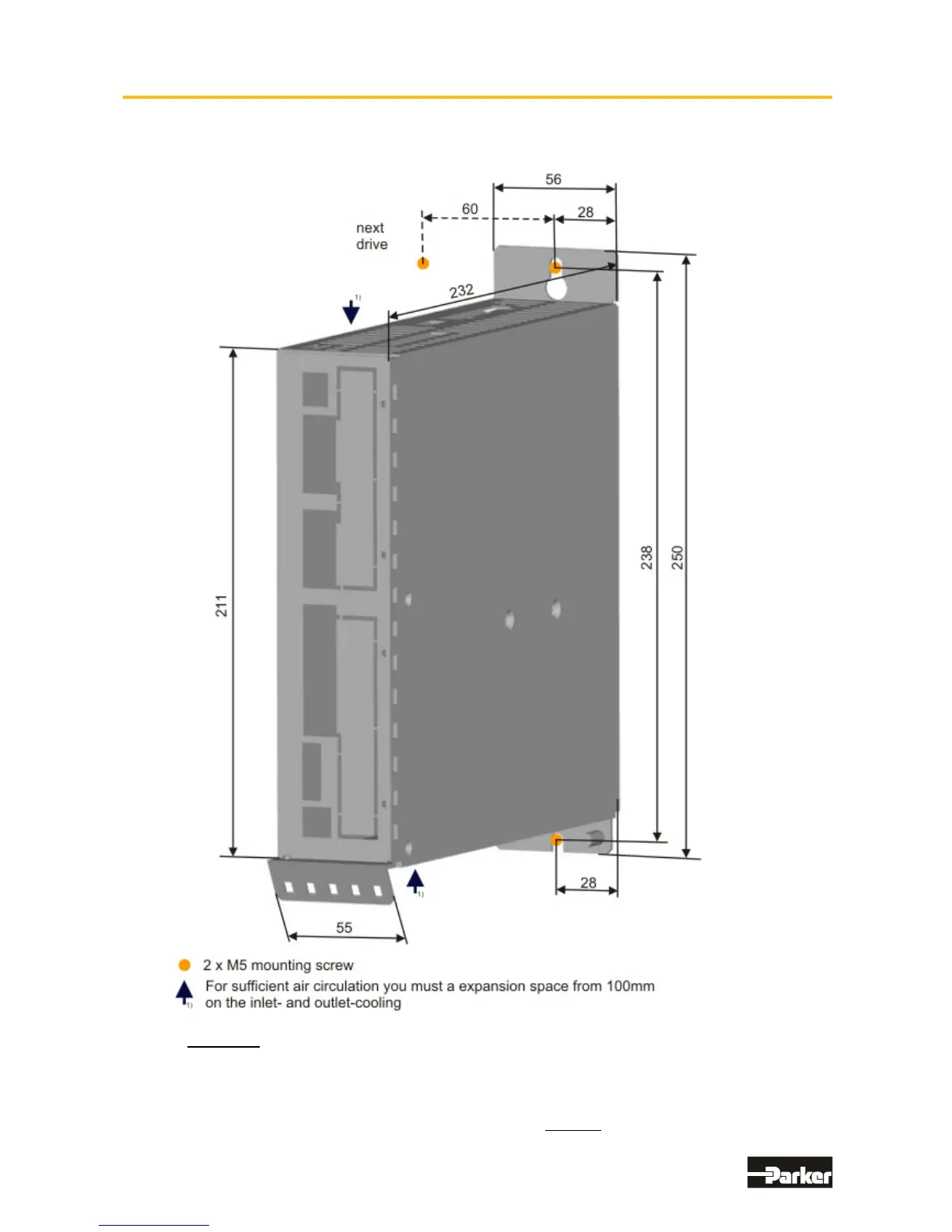

1.4 Dimensions
● 638A Series
Important:
Please note that on the front side of the unit, approximately 70 mm of
additional space
is required for the signal mating plugs!
When installing multiple servo drives, there is minimum space on the side.
The unit should only be mounted vertically as shown.
