Parker 638 series

2 Connection Assignments and Functions
Connection Assignments and FunctionsConnection Assignments and Functions
Connection Assignments and Functions
07-02-12-02-EN-V1215.doc / Type: 638
33

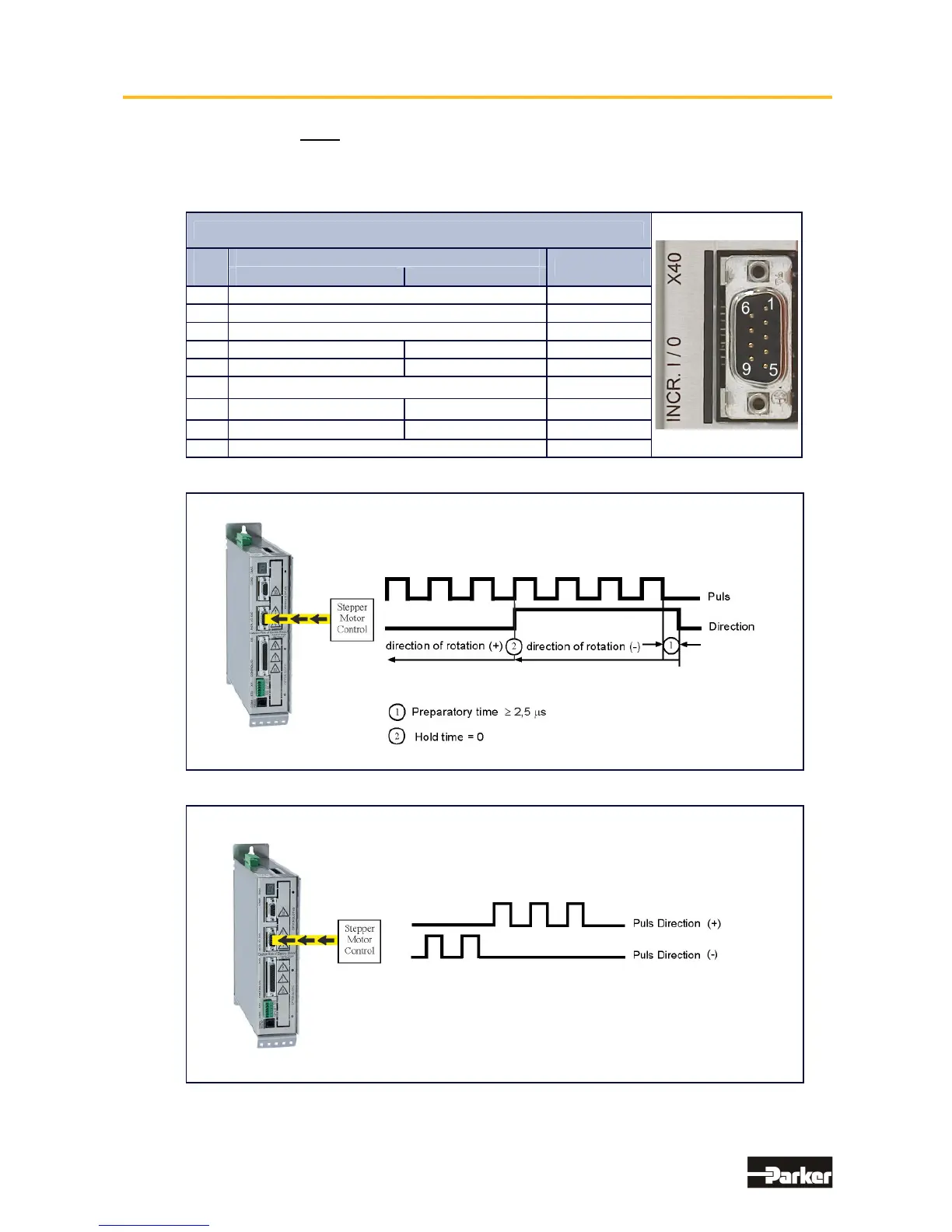

● Stepper Motor Input
Two different modes are available
EASYRIDER

Windows - Software X40 Connection: Mode = Stepper Motor (Pulse+Direction)
EASYRIDER

Windows - Software X40 Connection: Mode = Stepper Motor (2*Pulse)
INCR. I/O X40
PIN
X40
Function
Designation
Mode: Pulse+Direction
Mode: 2*Pulse
1 Output: Drive Active - Inverted /READY
2 Output: Drive Active READY
3 Shield Connector Shield
4 Pulse Inverted Pulse - Inverted -
5 Pulse Pulse - -
6
Reference Potential (generally to connect) GND
7
Direction Inverted Pulse + Inverted -
8
Direction Pulse + -
9 Supply Voltage Output Max. 150 mA +5 VDC
Figure: Pulse+Direction
Figure: 2*Pulse
