2 Connection Assignments and Functions
Connection Assignments and FunctionsConnection Assignments and Functions
Connection Assignments and Functions
24
07-02-12-02-EN-V1215.doc / Type: 638

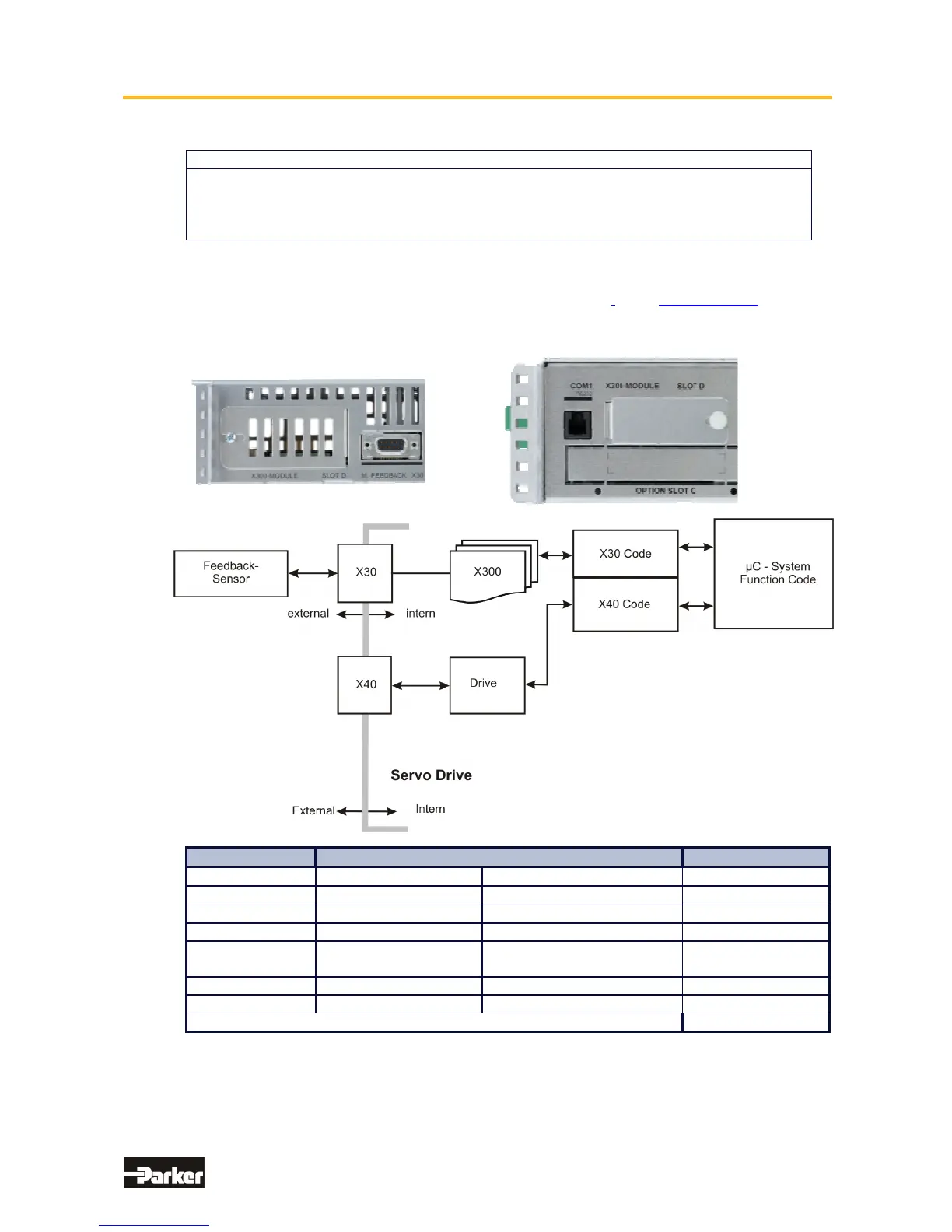

2.4 Feedback Sensor X30
The feedback system creates a digital value from the feedback position sensor.
From this value the following is derived:
Commutation according to the pole division
Actual rotational speed value
Position value for the position controller
● Feedback - Module X300
The X30 connection is directly connected to the Feedback - Module X300.The mode of operation
of the feedback system is specified by this plug-in module. (see: ● Layout Module Slots)
The 638 – Drive system therefore offers a built-in flexibility and provides for the possibility
of future modification.
638A 638B
Description Documentation
X300_RD2 Resolver Standard
X300_HF2
HIPERFACE
Option 07-02-09-02-E.pdf
X300_SC2 Sine/Cosine Option
X300_RM1 Resolver + Memory Option as of Firmware V 8.35
X300_HM1
HIPERFACE+
Memory
Option as of Firmware V 8.35
07-02-09-02-E.pdf
X300_SM1 Sine/Cosine + Memory Option as of Firmware V 8.35
X300_EM1 ENDAT + Memory Option as of Firmware V 8.43
07-02-12-03-EN.pdf
Additional types available upon request.
Plug and Play
The 638 Servo Drive is able to identify the type of X300 Module employed.
The EASYRIDER
Windows – Software loads the correct function code.
You follow the instructions in the EASYRIDER Windows – Software.
For feedback module RD2 the function code is already pre-set (factory default).
