2 Connection Assignments and Functions
Connection Assignments and FunctionsConnection Assignments and Functions
Connection Assignments and Functions
Designation Function
1 +24V Input; Supply Voltage Mechanical Brake
2 0V
Input; Refer. Potential Supply Voltage
Mechanical Brake
3 BR+ Control Mechanical Brake
4 BR- Control Mechanical Brake
5 - Not assigned
6 TH+ Thermo PTC
1)
/NTC
Setup and
Wiring
example
7 TH- Thermo PTC
1)
/NTC

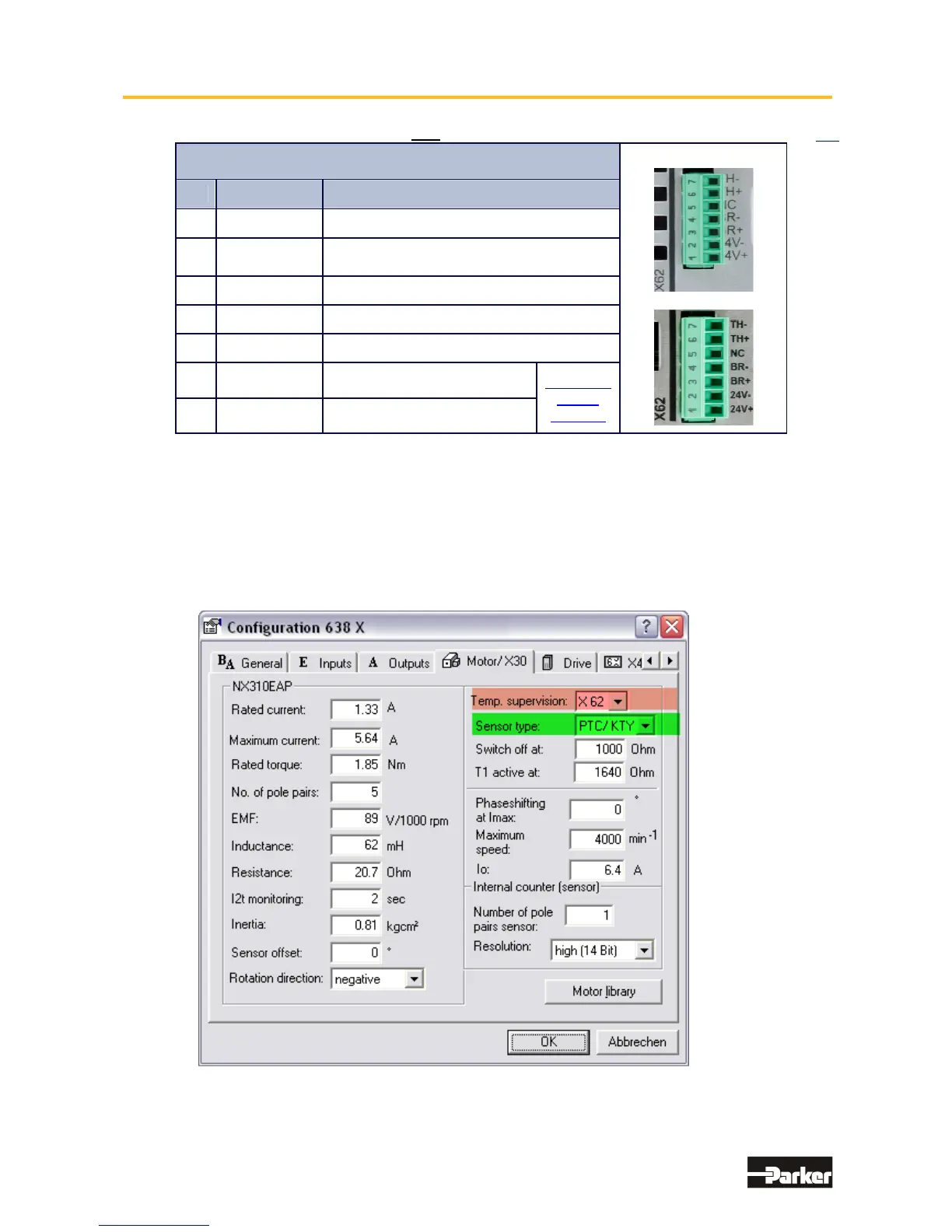

With the connection of the motor temperature sensor at X62 plug you have to change the
Temperature supervision parameter in EASYRIDER Menu Configuration Motor from X30 to X62.
1)
With parameter setting PTC also a temperature sensor from Typ KTY (note poling)
or a thermo switch can be connected.
For sensor Typ KTY set in EASYRIDER Menu „Configuration Motor / X30 Switch off at:“
resistor value in Ohm.
For thermo switch set in the EASYRIDER Menu „Configuration Motor / X30 Switch off at:“
to the value 1000 Ohm
