07-02-12-02-EN-V1215.doc / Type: 638
45
3 Operating Mode
3.1 Operating Mode General
The preselection of the device functions are carried out by choosing the operating modes 0...5
according to the following table, see: ■ Operating modes and pin functions,
(EASYRIDER
Windows - Software).
Each operating mode allows for the assignment of different in and output functions (F0..F6).
Operating
Mode
Reference Source Hints for Selecting the Operating Mode
0
1
2
Analog (X10.5/18) Switching the operating modes 1 and 2 through input X10.24
Speed control analog
Torque controller analog
3
Analog (X10.5/18) /
Digital
Simple applications with the requirement of switching between
position and speed control position controller (input X10.24).
Handling like operating mode 4
4
Digital or Analog in acc.
to parameter setttings

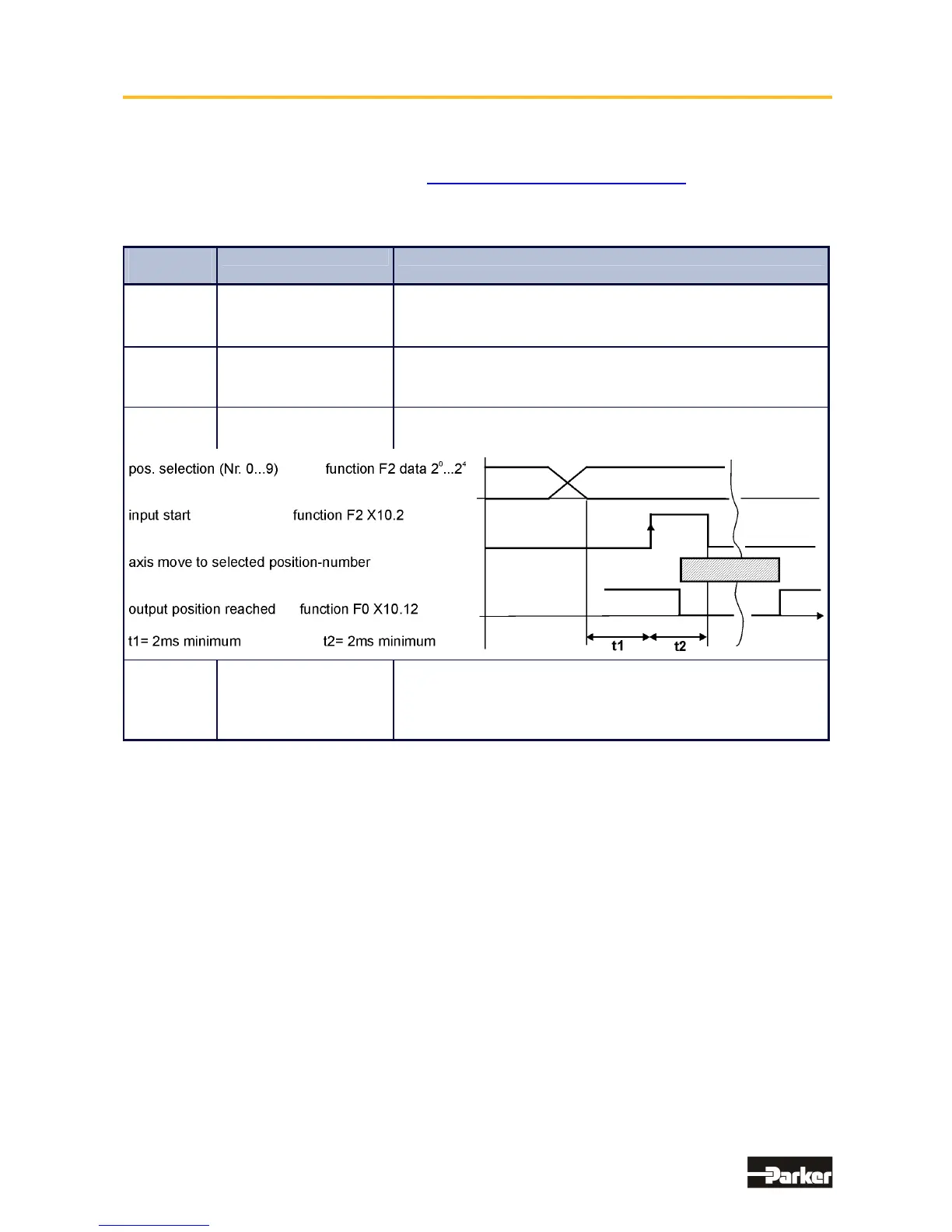

General position controlled systems - Up to 10 positions can be
stored under identifier-numbers and activated as shown.
