2 Connection Assignments and Functions
Connection Assignments and FunctionsConnection Assignments and Functions
Connection Assignments and Functions
07-02-12-02-EN-V1215.doc / Type: 638
25

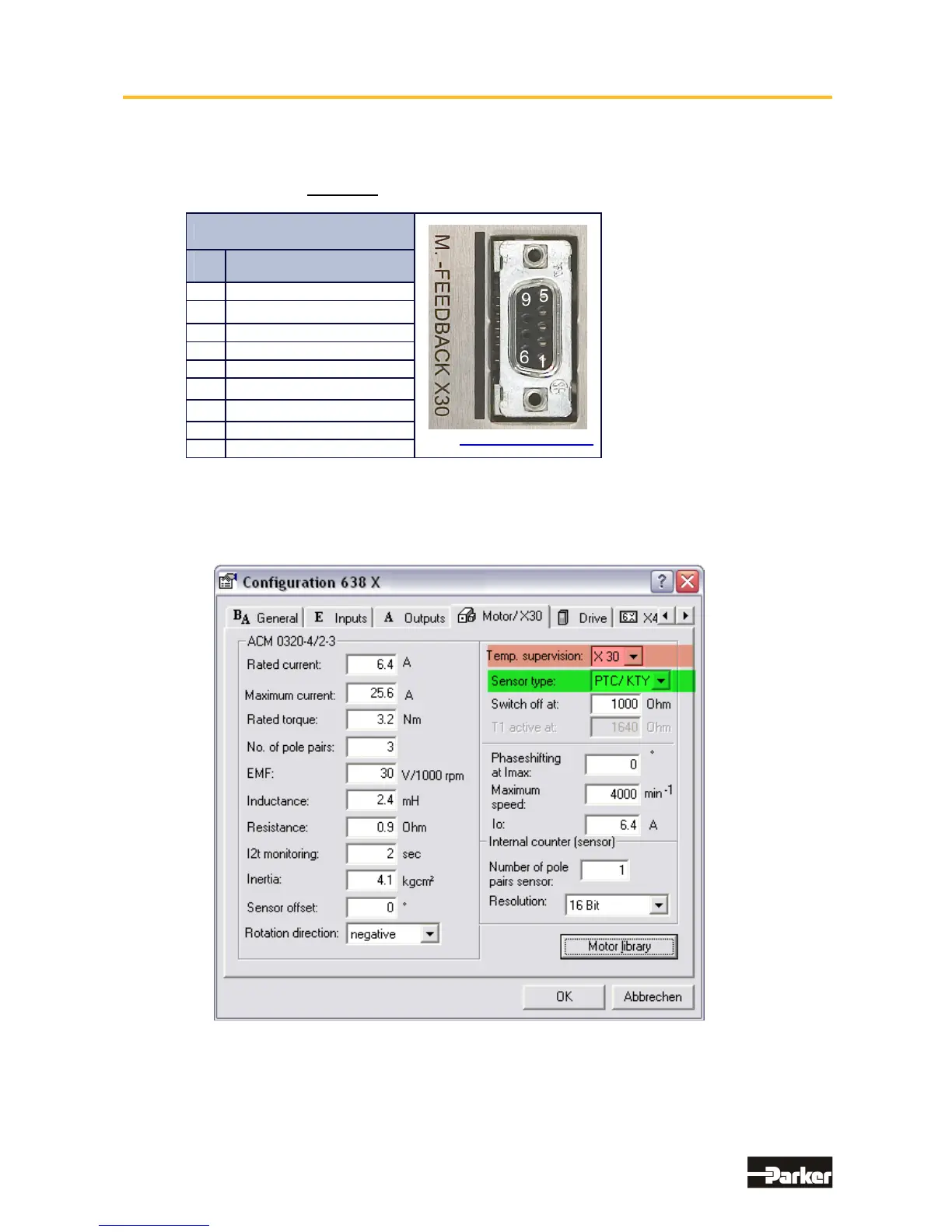

● Feedback Connection X30 (SUB D 09 Socket)
Pinning for the Motor - Feedback - Socket X30 when employed with:
Resolver Module X300_RD2 or X300-RM1(Standard Module)
Module: X300_RD2 / X300_RM1
Setup and Wiring example
Function
1 -
2 PTC1) / NTC optional
3 cos +
4 sin +
5 carrier +
6 PTC1) / NTC optional
7 cos -
8 sin -
9 carrier -
1)
With parameter setting PTC can you temperature sensor Typ KTY (note poling)
or thermo switch used.
EASYRIDER Menu „Configuration Motor / X30 Switch off at:“ use resistor value in Ohm.
For thermo switch is the value 1000 Ohm in the EASYRIDER Menu
„Configuration Motor / X30 Switch off at:“
