Parker 638 series

2 Connection Assignments and Functions
Connection Assignments and FunctionsConnection Assignments and Functions
Connection Assignments and Functions
07-02-12-02-EN-V1215.doc / Type: 638
37

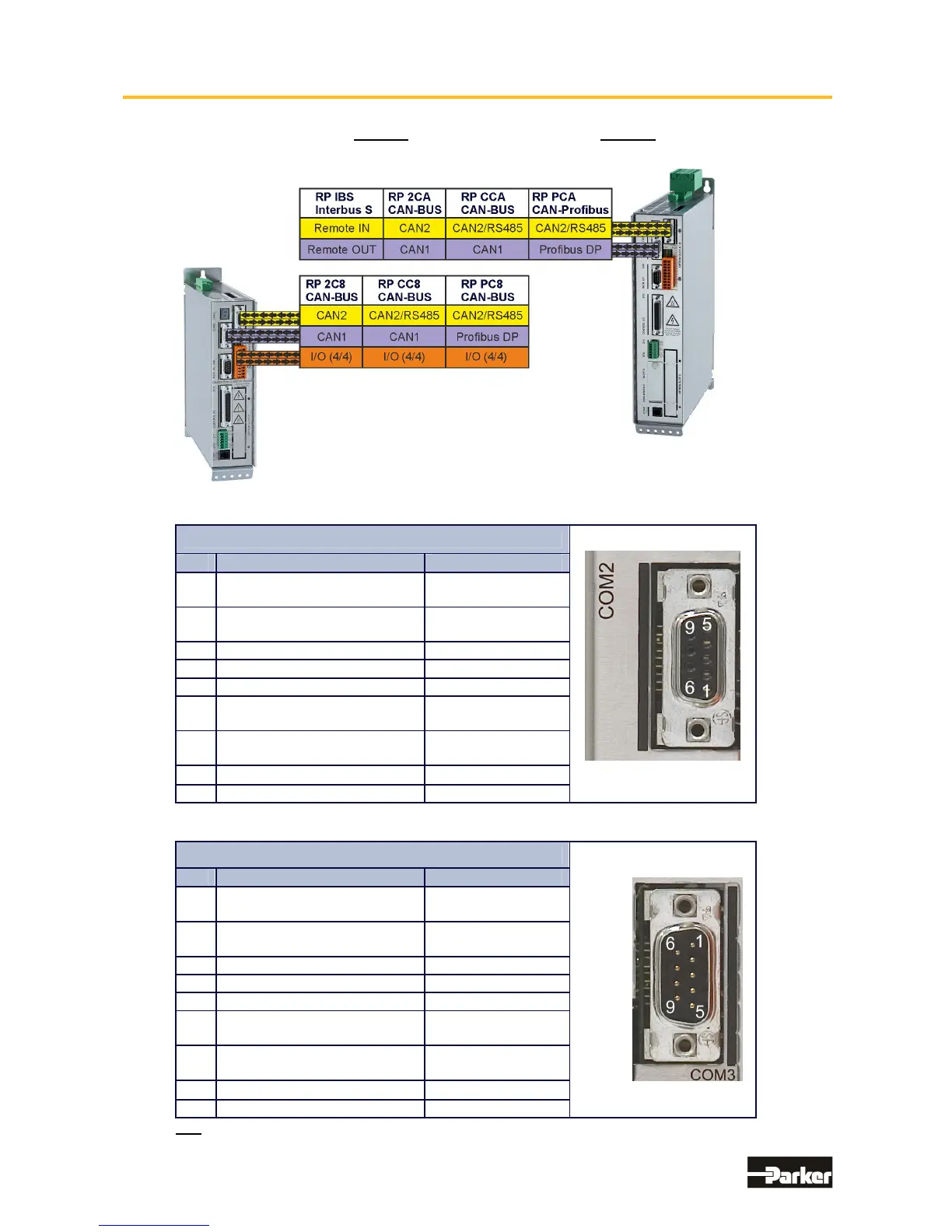

2.10 Fieldbus Interface COM2 in Combination with COM3
(OPTION SLOT A/B)
● Pinning for Interbus S (RP IBS)
Remote OUT - Outgoing Interface (SUB D09 Socket)
Module: RP IBS
PIN
Function Designation
1
Data Line OUT Forward
(error voltage A)
DO2
2
Data Line IN Backward
(error voltage A)
DI2
3 Reference Potential IBS-GND
4 - -
5 VCCI +5V
6
Data Line OUT Forward
(error voltage B)
/DO2
7
Data Line IN Backward
(error voltage B)
/DI2
8
- -
9 Reporting Input * RBST
* for additional Interbus S - Interfaces
Remote IN - Incoming Interface (SUB D09 Plug)
Module: RP IBS
PIN
Function Designation
1
Data Line IN Forward
(error voltage A)
DO1
2
Data Line OUT Backward
(error voltage A)
DI1
3 Reference Potential IBS-GND
4 - -
5 - -
6
Data Line IN Forward
(error voltage B)
/DO1
7
Data Line OUT Backward
(error voltage B)
/DI1
8
- -
9 - -
with galvanic isolation
