07-02-12-02-EN-V1215.doc / Type: 638
87
● Status Diagram and Function of Terminals STO1# und STO2#
• With hardware monitoring of the contact difference between STO1# und STO2#
(Tolerance - ca. 20 Sec.)
• Active Time Delay t
va
> 0
• No additional special functions

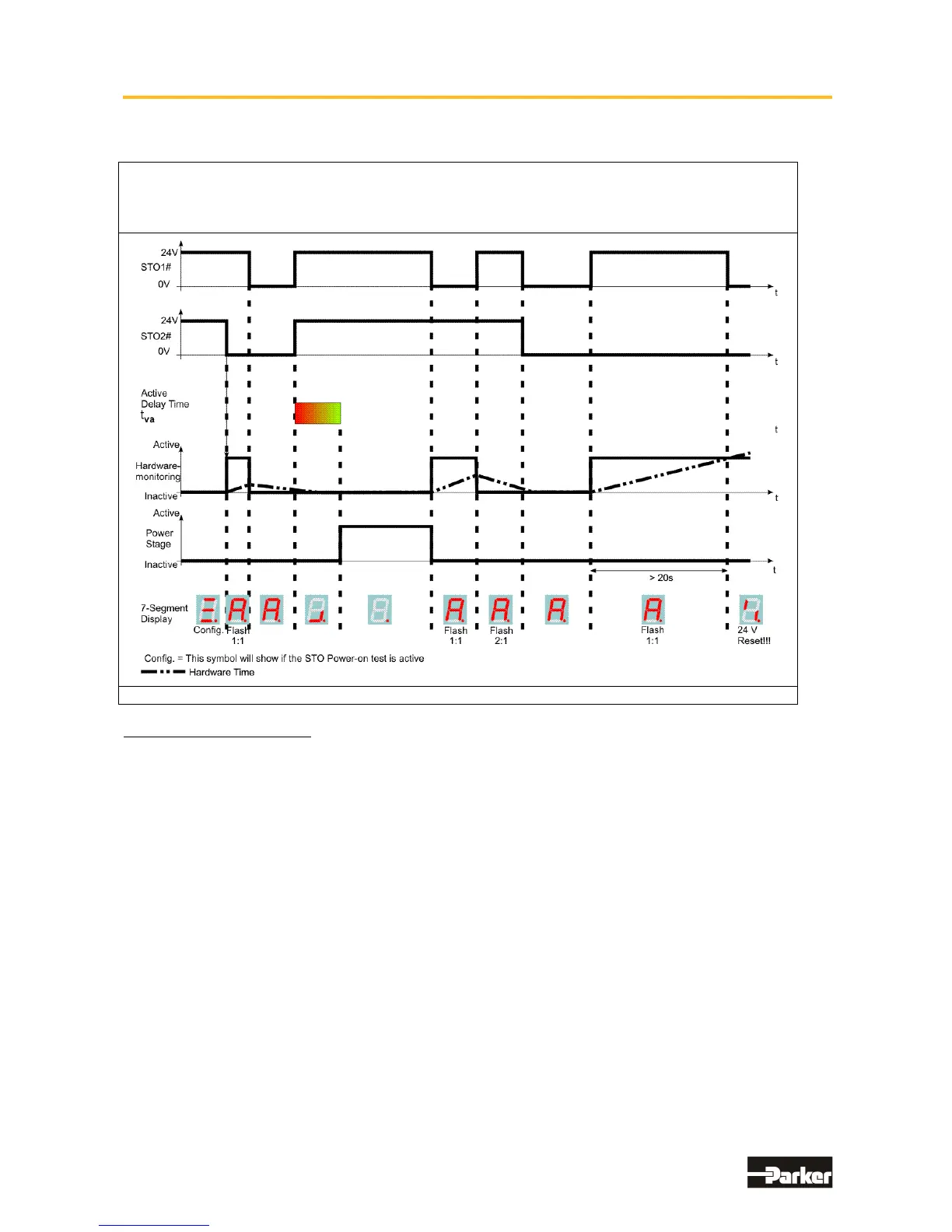

Diagram: Flow chart of the switching status from STO1# and STO2#
Note for Standard Operation:
• The STO inputs should always be operated simultaneously.
If the safety parameter Active Time Delay is t
va
= 0 s, then both STO inputs will be turned on
immediately after recognition.
