Parker 638 series

2 Connection Assignments and Functions
Connection Assignments and FunctionsConnection Assignments and Functions
Connection Assignments and Functions
26
07-02-12-02-EN-V1215.doc / Type: 638

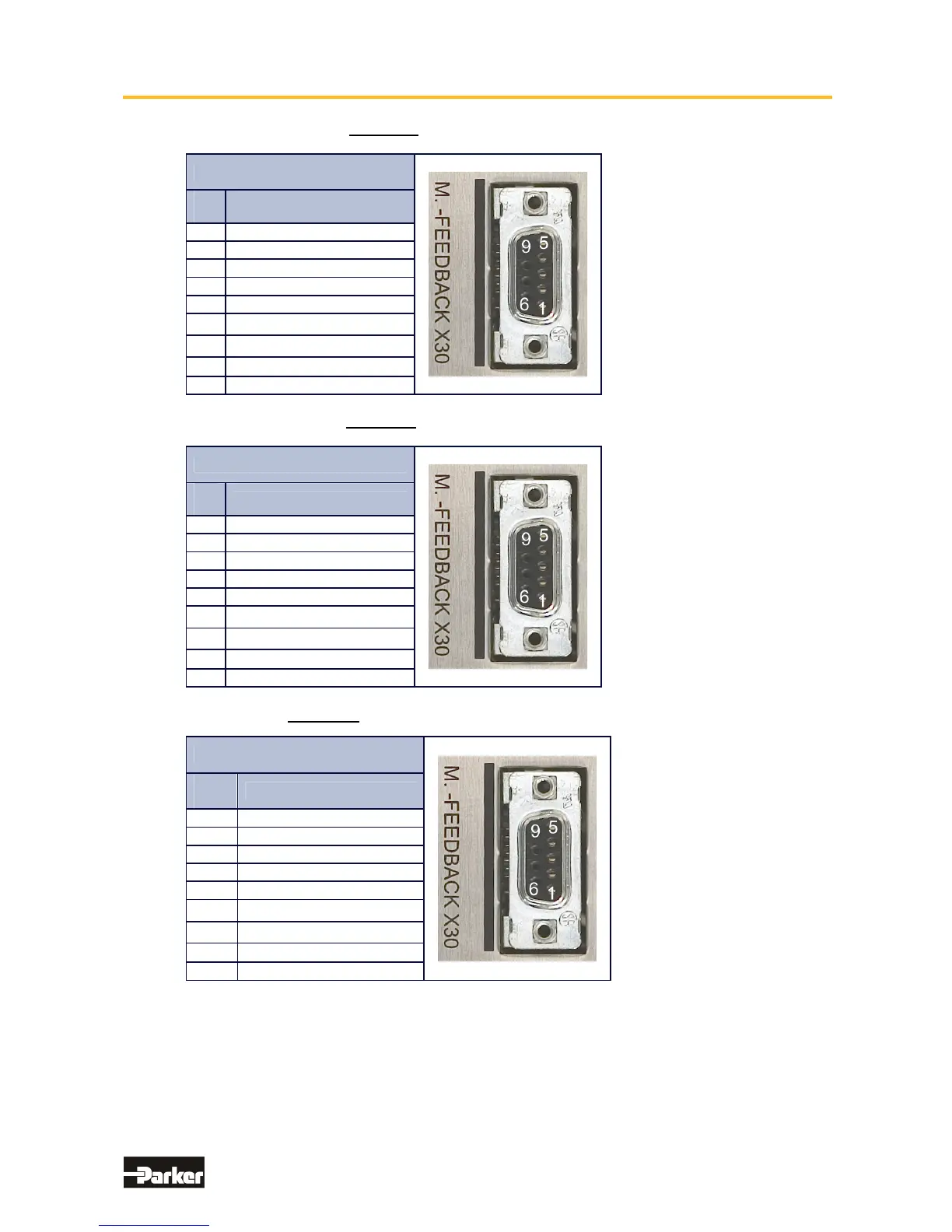

HIPERFACE® - Module X300_HF2 or X300_HM1
Module: X300_HF2 / X300_HM1
PIN
X30
Function
1 GND
2 +10 VDC
3 cos +
4 sin +
5 data -
6 -
7 ref cos
8 ref sin
9 data +
Sine / Cosine - Module X300_SC2 or X300_SM1
Module: X300_SC2 / X300_SM1
PIN
X30
Function
1 GND
2 +5,5 VDC
3 cos +
4 sin +
5 zero pulse -
6 -
7 ref cos
8 ref sin
9 zero pulse +
ENDAT Modul X300_EM1
Modul: X300_EM1
PIN
X30
Function
1 GND
2 +5,25 VDC
3 SENSE 5V
4 CLOCK/
5 DATA/
6 -
7 SENSE 0V
8 CLOCK
9 DATA
