Operation
6400
4
23
Fill Cycle
Once the calorimeter is started and the cover is closed, the fill sequence begins.

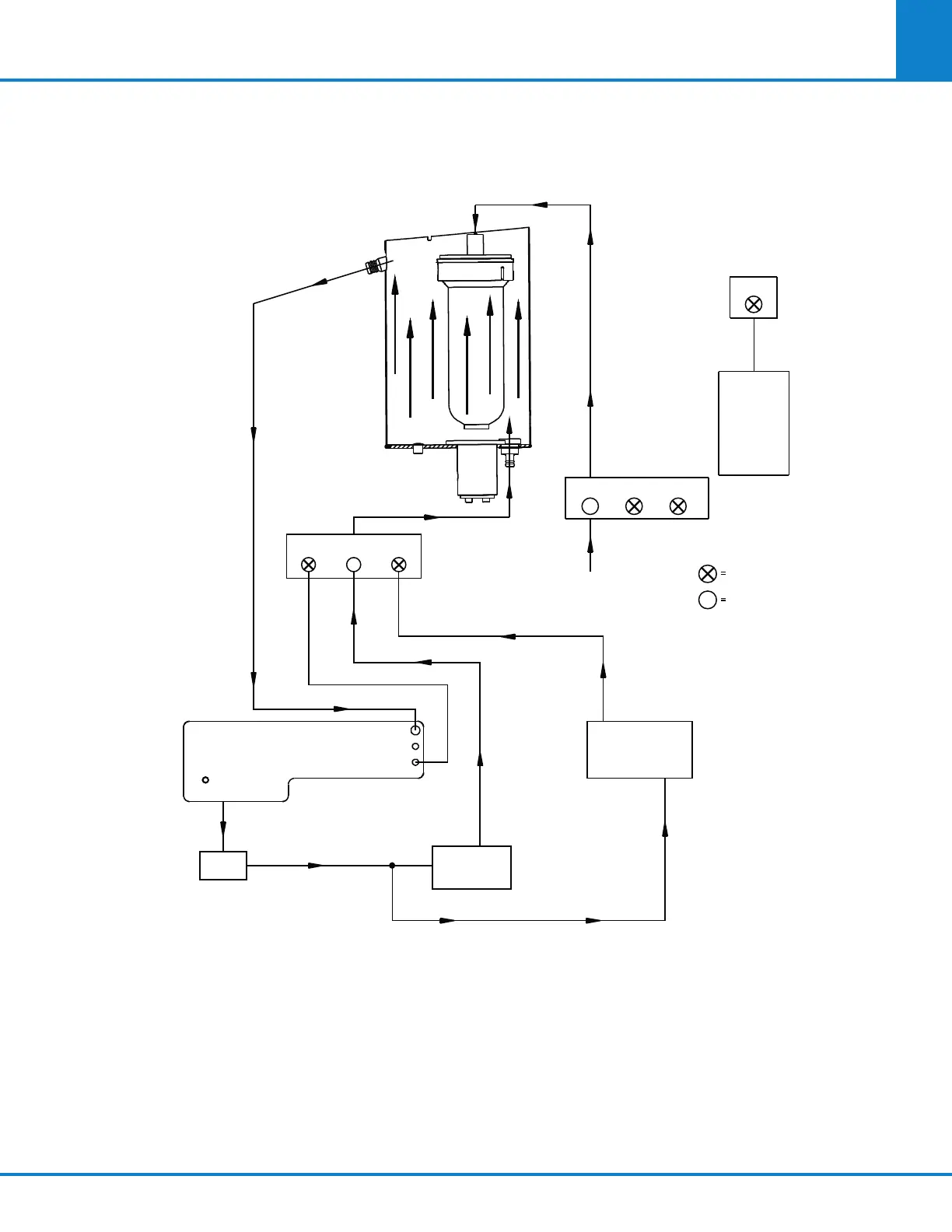

Figure 4-2: Bucket Fill Flow Diagram
VESSEL
WASH
A1589DD
RINSE
TANK
CLOSED
OPEN
VESSEL
SEAL
WATER TANK
PUMP
TEMP
CONTROL
WATER
CHILLER
OXYGEN
INLET
VESSEL
FILL
VESSEL
EXHAUST
COLD
WATER
WATER
FILL
WATER
DRAIN
1. The calorimeter checks the combustion vessel ignition circuitry for continuity.
2. The water fill solenoid opens and water is pumped from the internal tank into and through the bucket
that surrounds the vessel. Overflow from the bucket is returned to the closed water tank. Because
the jacket and bucket are both filled with water from the closed water tank, initial equilibrium will be
reached quickly.
3. The oxygen fill solenoid is opened and oxygen is added slowly to the combustion vessel to bring its
pressure to approximately 3 MPa (435 psig or 30 bar).
