Parts Lists & Drawings
6400
13
89

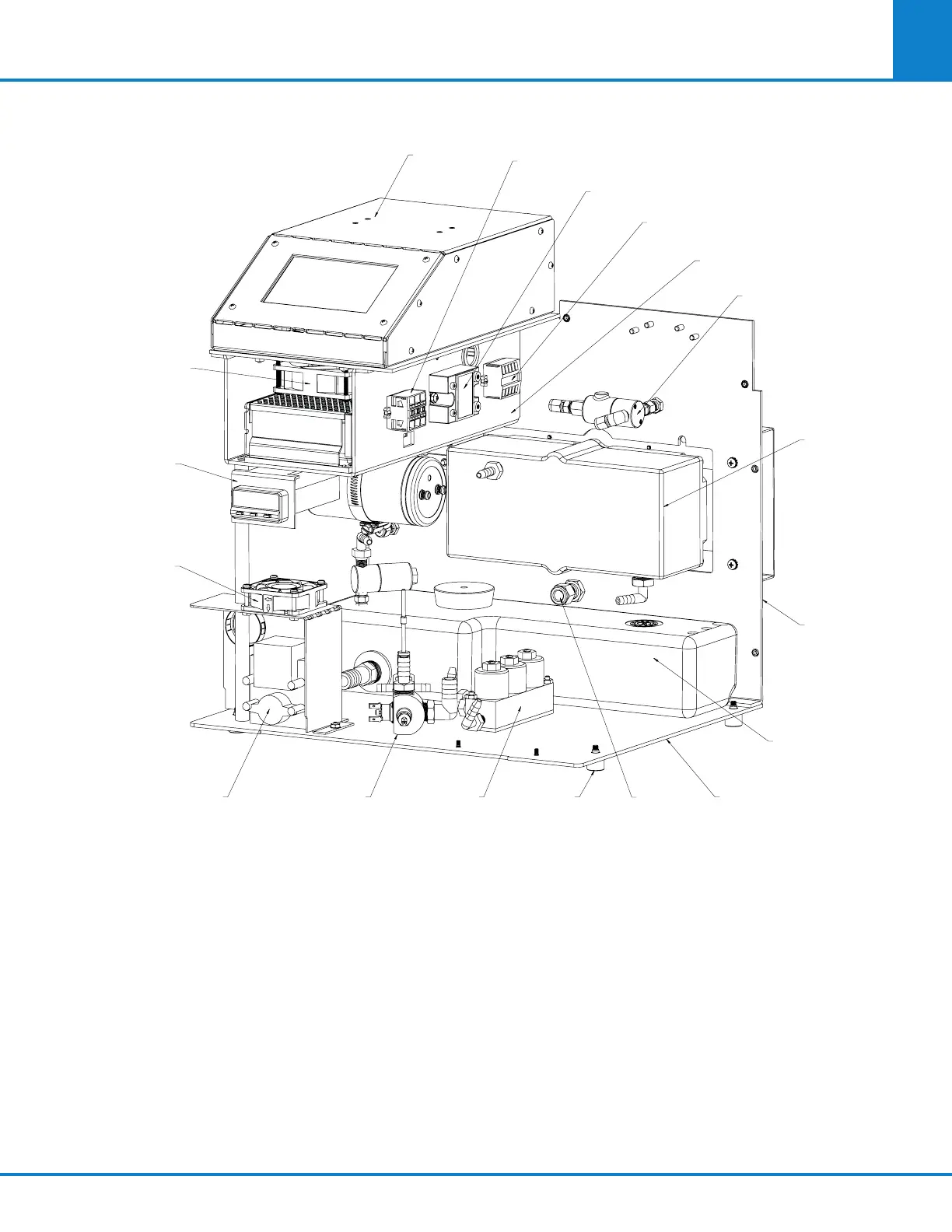

Figure 13-7: 6400 Cutaway Right
A 1435 DD_S 9 R 18
(4) 894DD FEET
(4) SA1932RP10
10-32 X 5/8 RHMS
1419DD BOTTOM
PANEL
1421DD BACK PANEL
(4) SA1932RP06 10-32 X 3/8 RHMS
A1449DD WATER
CHILLER ASSEMBLY
(4) SA1932PP08L 10-32 X 1/2 RHMS
(4) TW19NL LOCKWASHER
(4) 1436DD SPACER WITH FLANGE
1433DD WATER TANK
(SEE SHEET 18)
(4) SA1632RP06 8-32 X 3/8 RHMS
(4) SW16NL WASHER
A1447DD WATER SOLENOID
ASSEMBLY
(2) TN1632HL 8-32 KEPS NUT
A1448DD TEMPERATURE
CONTROL ASSEMBLY
(2) SA1632RP06 8-32 X 3/8 RHMS
(2) SW16NL LOCKWASHER
533VBAD EXHAUST
BULKHEAD
A1456DD RINSE VALVE ASSEMBLY (REF)
244VB UNION, BULKHEAD
1857E TERMINAL BLOCK
(2) SA1140RD06 4-40 X 3/8 RHMS
1850E RELAY
(2) TN1332HL 6-32 KEPS NUT
1381E TERMINAL BLOCK
(2) SA1140RD06 4-40 X 3/8 RHMS
1422DD SUPPORT BRACKET
(6) SA1932RP06 10-32 X 3/8 RHMS
A1250DD3 CONTROLLER
ASSEMBLY
(3) TN1332HL 6-32 KEPS NUT
1423DD MTG BRACKET
A1851E CONTROLLER
(USE THE CLIP PROVIDED
WITH TEMP CONTROLLER)
(2) TN1632HL 8-32 KEPS NUT
898E FAN
(4) SA1332RD24 6-32 X 1-1/2 RHMS
(4) SWNL #6 LOCKWASHER
1632E FAN
(4) SA1332RD16 6-32 X 1.00 RHMS
(4) SW13NL #6 LOCKWASHER
A1254DD2 CIRCULATING PUMP ASSEMBLY
(USE EXISTING HARDWARE AFTER
REMOVING BRACKET FROM PUMP)
(AIR FLOW DOWN TO POWER SUPPLY)
(AIRFLOW DOWN TO PUMP)
