parr 6400 - Figure 13-16: A1448 DD Temperature Control Assembly; Figure 13-17: A1050 DD Rinse Collection Assembly

Parts Lists & Drawings
6400
13
97

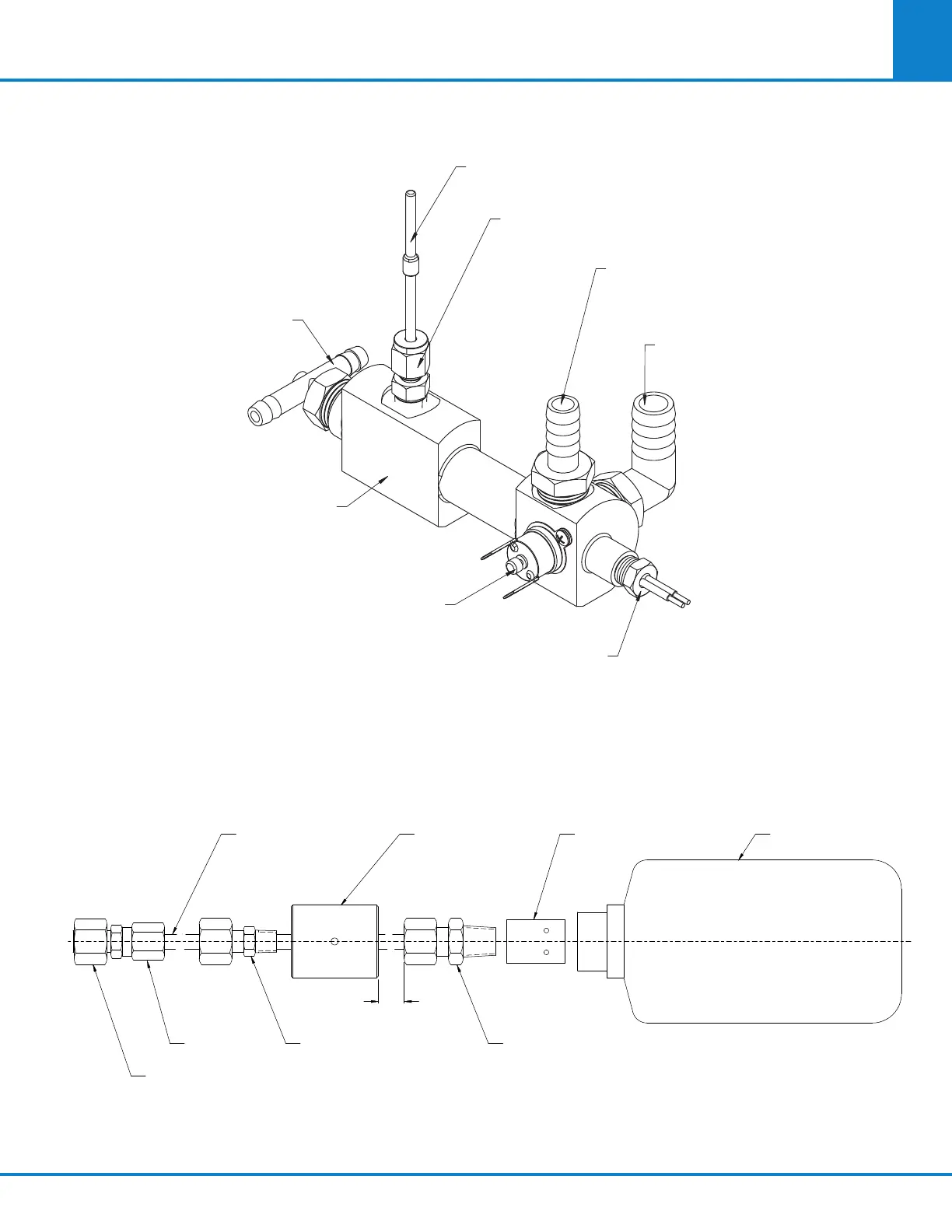

Figure 13-16: A1448DD Temperature Control Assembly
A 1448 DD_S 1 R 3
A1050DD_S1 R0
Figure 13-17: A1050DD Rinse Collection Assembly
HX0025TB062
1/4” TUBING X 4 FT LG
1052DD
BOTTLE CAP
1051DD
EXHAUST DIFFUSER
1053DD
BOTTLE, 500 mL
1.50
411VBAD REDUCER
(1/4T - 3/8Tx)
221VBAD 3/8T NUT
222VBAD 3/8T FERRULE SET
A138CA MALE CONNECTOR
(1/4T - 1/8TNPTM)
308VBAD MALE CONNECTOR
(1/4T - 1/4NPTM)
W/ (2) SA1140PP03
THERMOSTAT
MALE CONNECTOR
1417E
HEATER CARTRIDGE
ASSEMBLY (REF)
CONNECTOR
1445DD
MANIFOLD
2040E
HOSE BARB
THERMISTOR (REF)
1/4T-T X 3/8NPT
TEE BARBED
1451DD
182VB
1/8T-1/8NPT-BT
3/8T-3/8NPT
A1459DD
1441DD
1439DD
ELBOW HOSE BARB
1/2T-3/8NPT
