parr 6400 - Figure 13-18: A1455 DD Propeller Assembly; Figure 13-19: A1268 DD Stirrer Motor and Mount

Parts Lists & Drawings
13
98

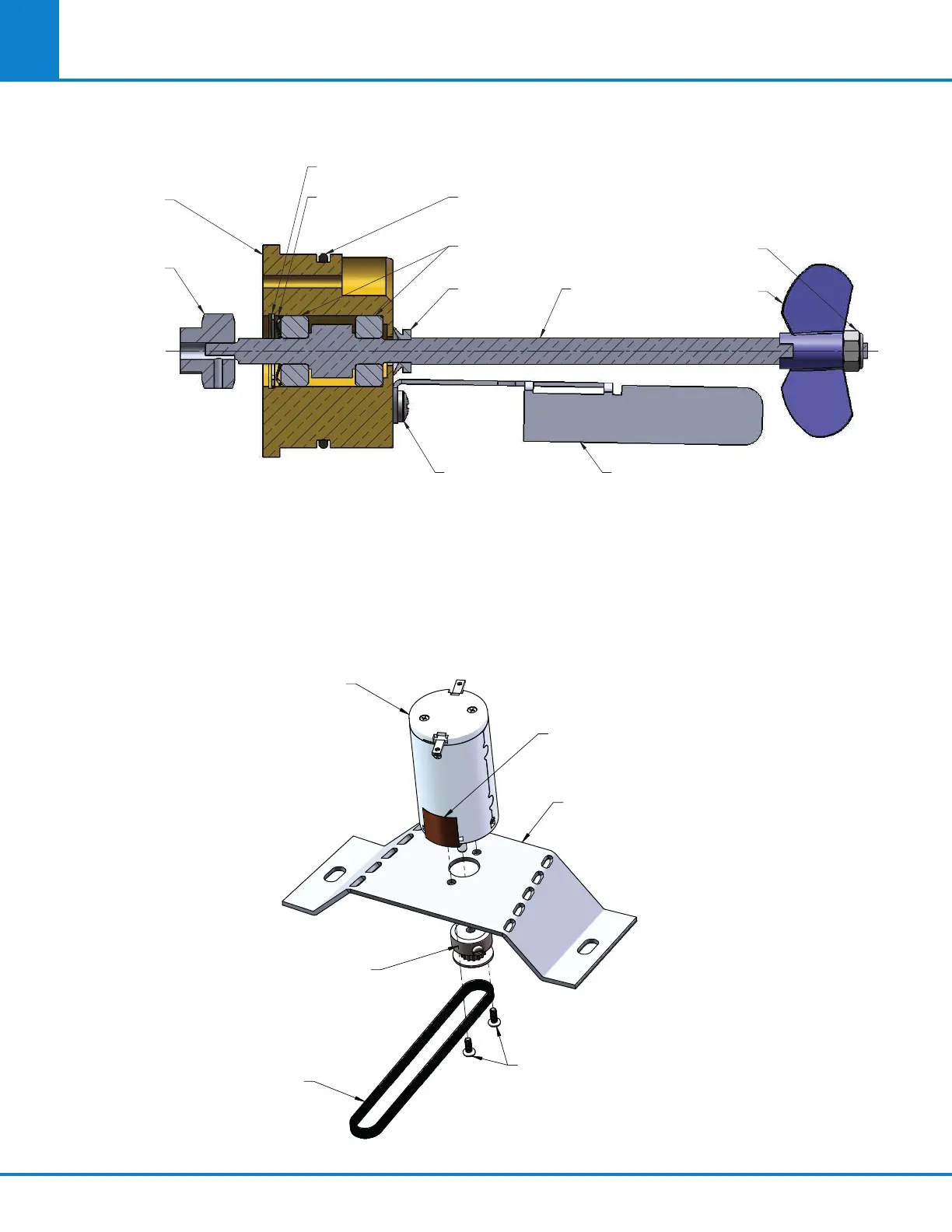

Figure 13-18: A1455DD Propeller Assembly
A 1455 DD_S 1 R 2
A 1435 DD_S 4 R19
NOTE: Apply thread sealant (Loctite or equivalent) to set screw in 1242DD2 pulley before installing.
Figure 13-19: A1268DD Stirrer Motor and Mount
A1268DD (REF)
2344E
STIRRER MOTOR
ASSEMBLY
1591DD
MOTOR
MOUNT
1242DD
TIMING
PULLEY
1241DD
TIMING
BELT
2X SA025MPP05
SCREW, PHMS 2mm X 5mm
1606DD
1030DD
4-40 X 1/4 RHMS
2X SA1140RD04
1242DD2
1029DD
2X 684DD
NUT, 4-40 HEX
LOCK NYLON
954DD
PROPELLER
BAFFLE ASSEMBLY
V-SEAL
SN1140HLHJ
690DD
SHAFT, STIRRER
715HC
O-RING
683DD
WAVE SPRING
682DD
SNAP RING, INTERNAL
BALL BEARING
951DD
PULLEY
HOUSING, BEARING
