parr 6400 - Figure 13-5: 6400 Air Can Assembly, Cutaway Left

Parts Lists & Drawings
6400
13
87

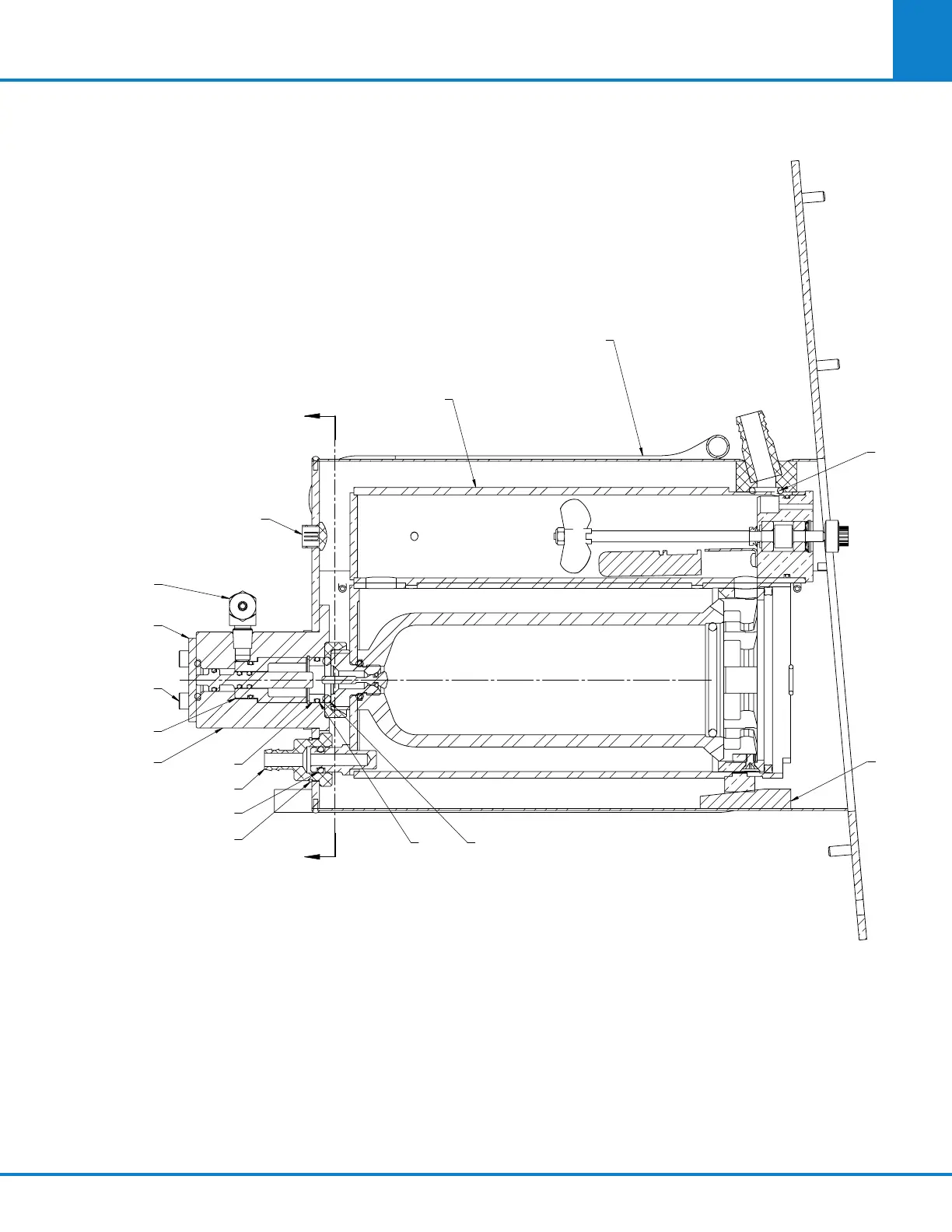

Figure 13-5: 6400 Air Can Assembly, Cutaway Left
A1450DD_S3 R2
* Parts to be replaced as part of the 500 Test Maintenance, see Chapter 11.
C
C
SECTION A-A
941DD
WEDGE
969DD*
O-RING
1143DD*
O-RING
1141DD
SPACER
944DD
O-RING
970DD
RETAINING RING
965DD
ADAPTER
1139DD
INSERT
857DD
O-RING
A1428DD
AIR CAN ASSEMBLY
A940DD
BUCKET ASSEMBLY
(2) 328E
PLUG
376VB
MALE ELBOW
962DD
CAP
(4) SB1632SC06
8-32 X 3/8 SHCS
1140DD
CYLINDER
(SEE SECTION
VIEW C-C)
