parr 6400 - Figure 13-21: A1250 DD3 Control Schematic

Parts Lists & Drawings
13
100

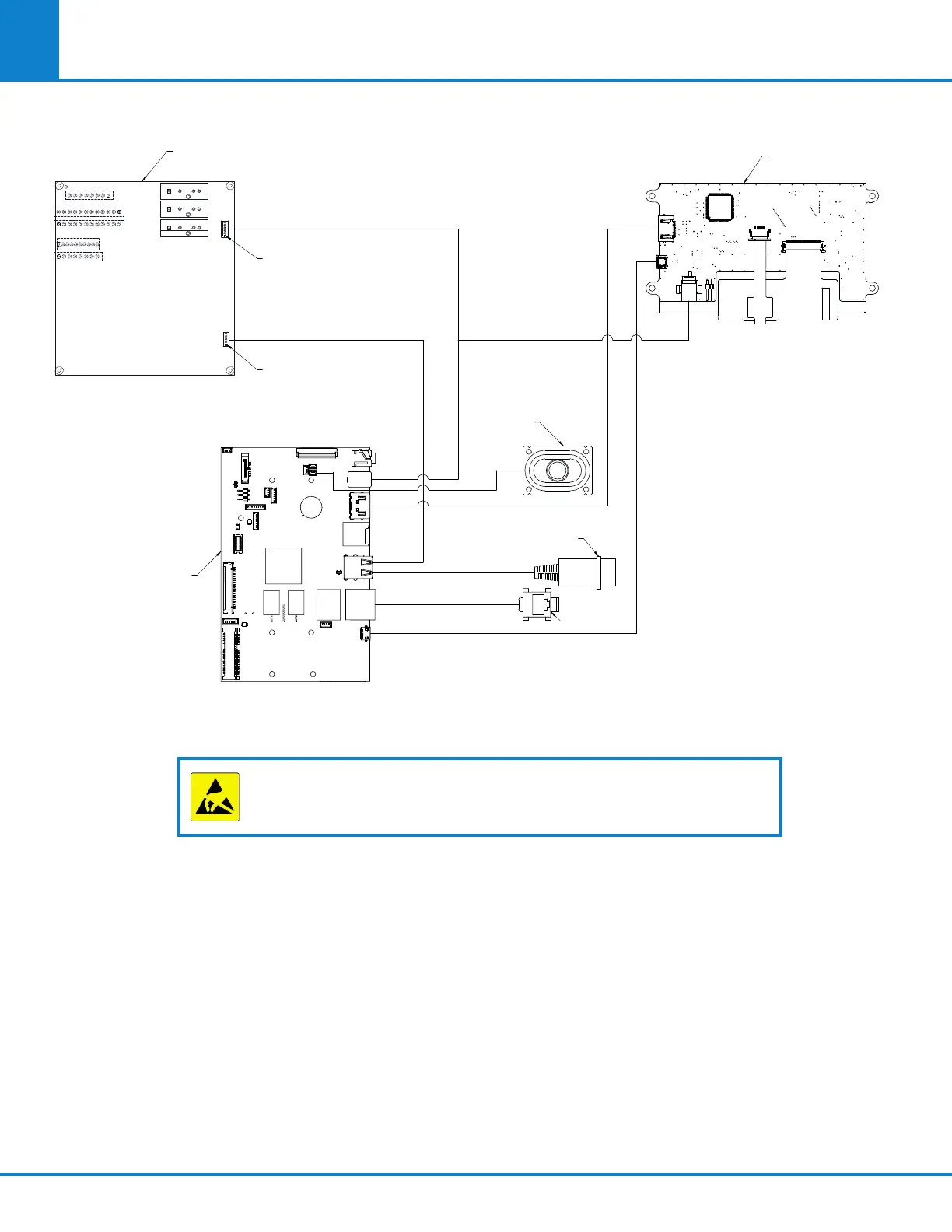

Figure 13-21: A1250DD3 Control Schematic
A 1250 DD3_S 1 R 0
ATTENTION: Electrostatic Discharge (ESD) hazards. Observe
precautions for handling electrostatic sensitive devices.
P6
P8
USB PORT
A2403E POWER CABLE ASSEMBLY
A2166E I/O TO CPU USB CABLE ASSEMBLY
(RED WIRE ON CABLE CONNECTS TO PIN #1)
2401E SPLITTER CABLE
2401E SPLITTER CABLE
A2140E I/O BOARD
PIN #1
PIN #1
CN1
CN2
CN3
J27
J10
J4
J24 LOWER
J44
J3
A2402E SPEAKER
CABLE ASSEMBLY
2400E LCD TOUCHSCREEN
J24 UPPER
A2167E USB PERIPHERAL
CABLE ASSEMBLY
2395E6 CPU BOARD
2396E HDMI MALE EXTENSION CABLE
2397E MICRO USB / USB OTG CABLE
1783E MODULAR
COUPLER
2406E CAT6 ETHERNET CABLE
