Page 8-14 Lasair II Particle Counter Operations Manual
Chapter 8: Statistics Mode
5 Press the green Start button on the control panel. The pump begin to
circulate air through the unit. After an initial delay (to purge the sample path),
the unit will begin sampling. The sampling process and the results of sampling
can be observed on the Main Display. When the sample is complete, the pump
stops.
When Sample Acknowledge is Activated
If you have selected Sample Acknowledge, the following message will be
displayed:

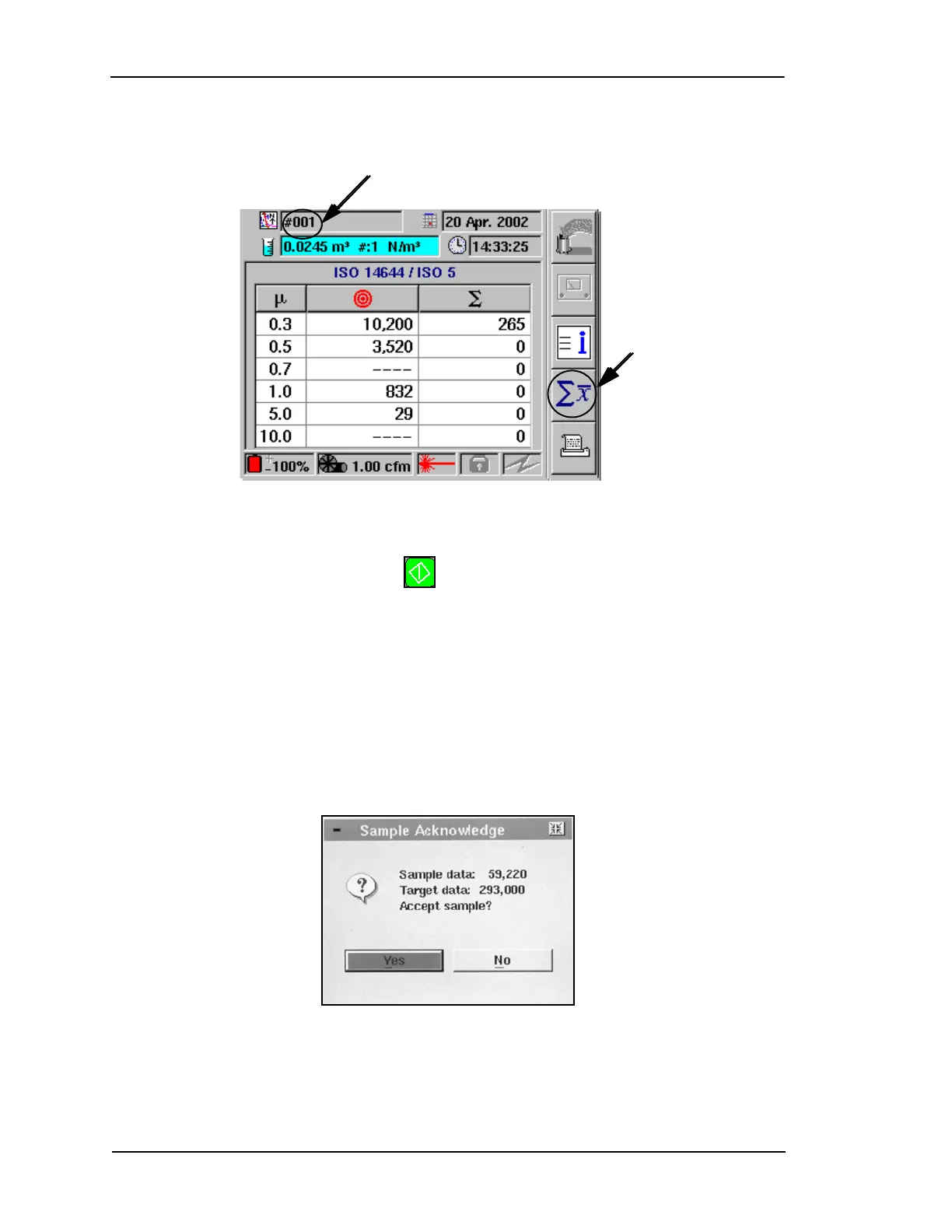

Figure 8-3: Main Display Screen when Statistics Mode is Enabled
Indicates statistics
mode
The location that will be sampled next.
Indicates statistics
mode
