Loading and Using Recipes
Lasair II Particle Counter Operations Manual Page 9-7
Loading and Using Recipes
Loading a recipe makes it the active set of sampling or statistical parameters.
Recipes can either be loaded explicitly from the Recipe Setup Screen, or implicitly
by selecting a location which has a recipe tied to it. To load the recipe on the setup
screen, highlight the desired recipe and click the load button. If the recipe is a
statistics recipe, a pop-up dialog box will appear after loading asking whether to
enable the statistics mode.
When a recipe is tied to a location, selecting the location will automatically load the
recipe. If password protection is disabled, a pop-up box will allow the user to
choose not to load the recipe when the location is selected. Otherwise, if the
password is enabled, the user is forced to load the recipe. Figure 9-3 shows the
Sampling Setup Screen with password protection enabled. The user is limited to
selecting a location, unless he has access to the password.

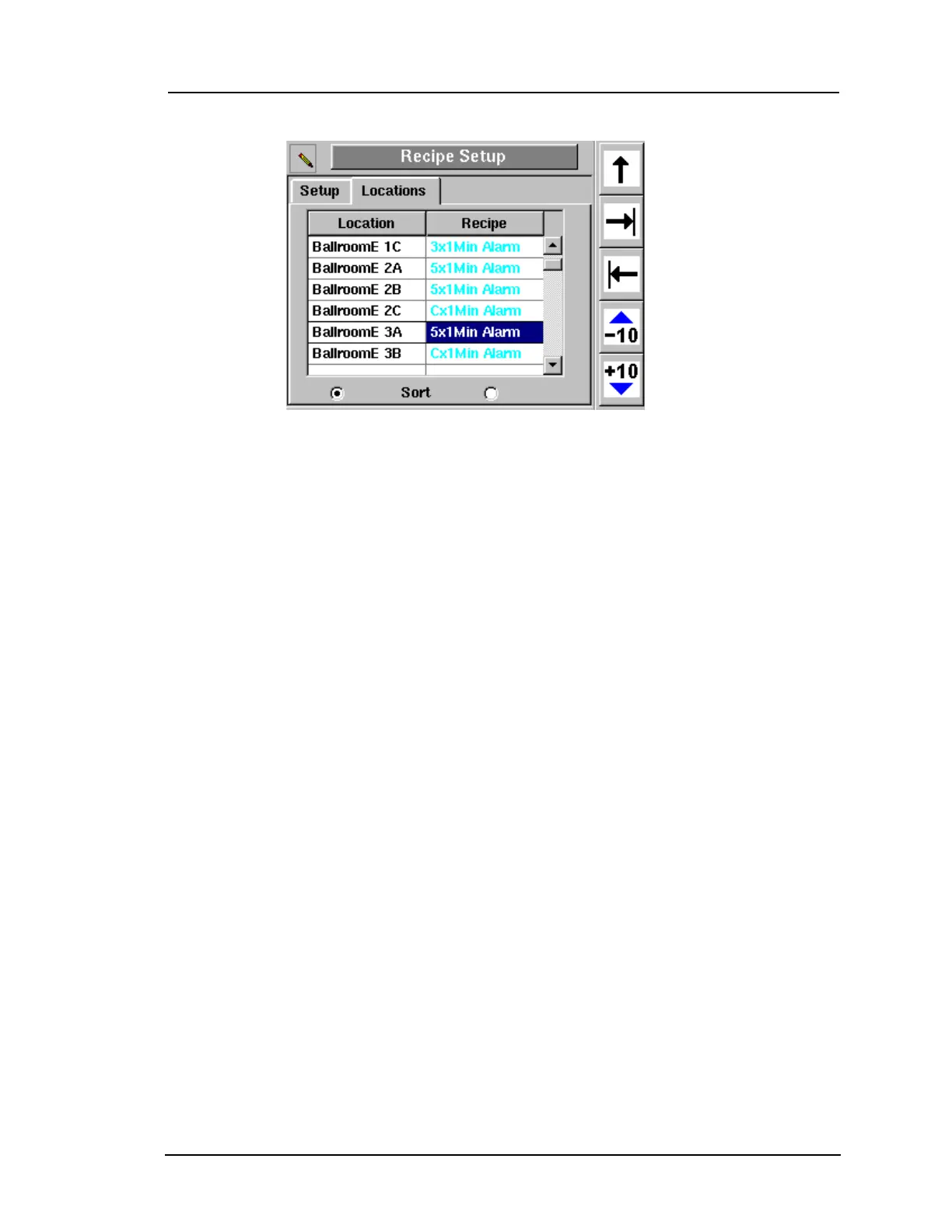

Figure 9-2: Setup Screen, Locations Page
