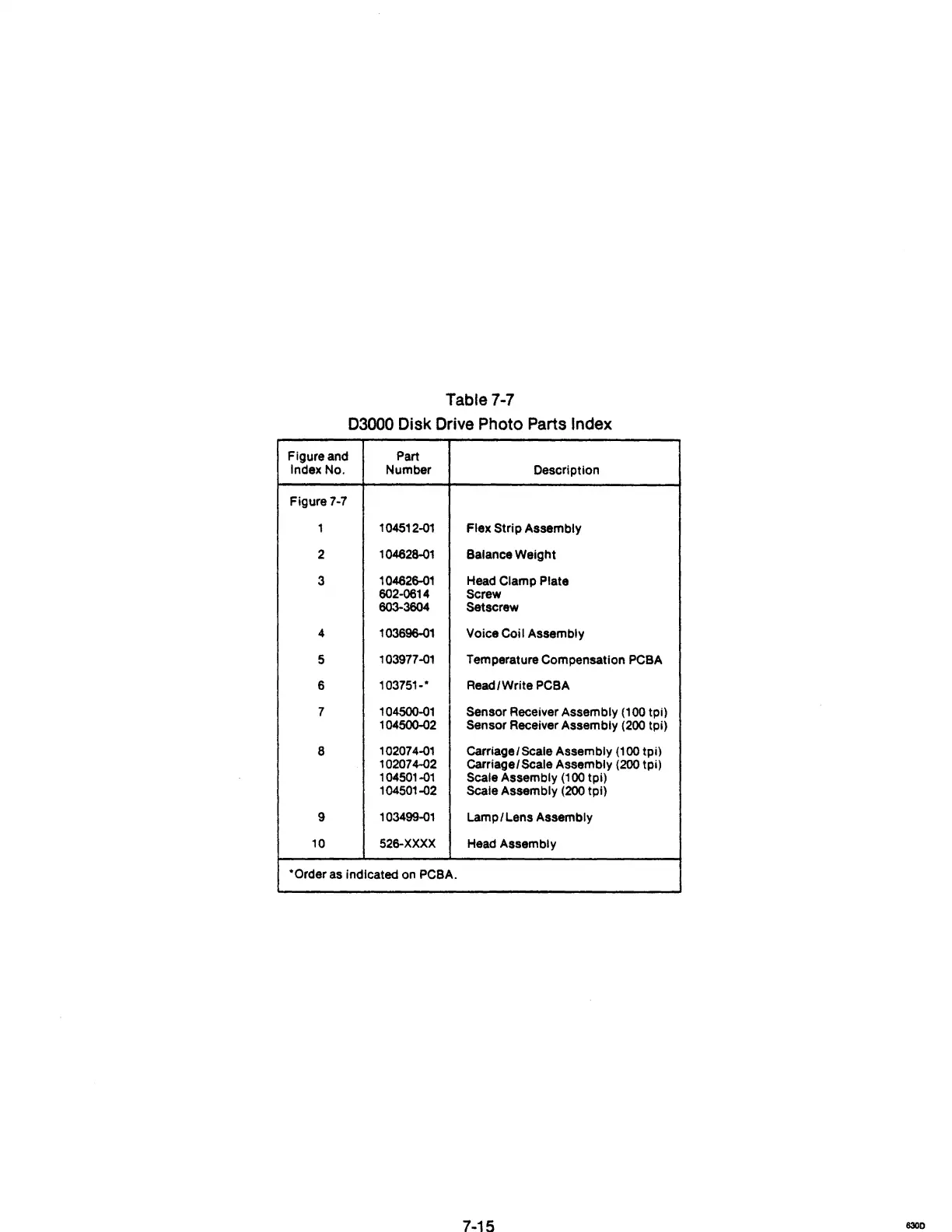

Table 7-7
03000 Disk Drive Photo Parts Index
Figure and Part
Index No.
Number
Description
Figure 7-7
1
104512-01
Flex
Strip Assembly
2
104628-01
Balance Weight
3
104626-01 Head Clamp Plate
602-0614
Screw
603-3604 Setscrew
4
103696-01
VOice
Coil Assembly
5
103977-01
Temperature Compensation PCBA
6
103751-' Read/Write PCBA
7
104500-01
Sensor Receiver Assembly (100 tpi)
104500-02 Sensor Receiver Assembly (200 tpi)
8
102074-01
Carriage/Scale Assembly
(100 tpi)
102074-02 Carriage/ Scale Assembly (200 tpi)
104501-01
Scale Assembly (100 tpi)
104501-02 Scale Assembly (200 tpi)
9
103499-01
Lamp/Lens Assembly
10 526-XXXX Head Assembly
'Order as indIcated on PCBA.
