830D

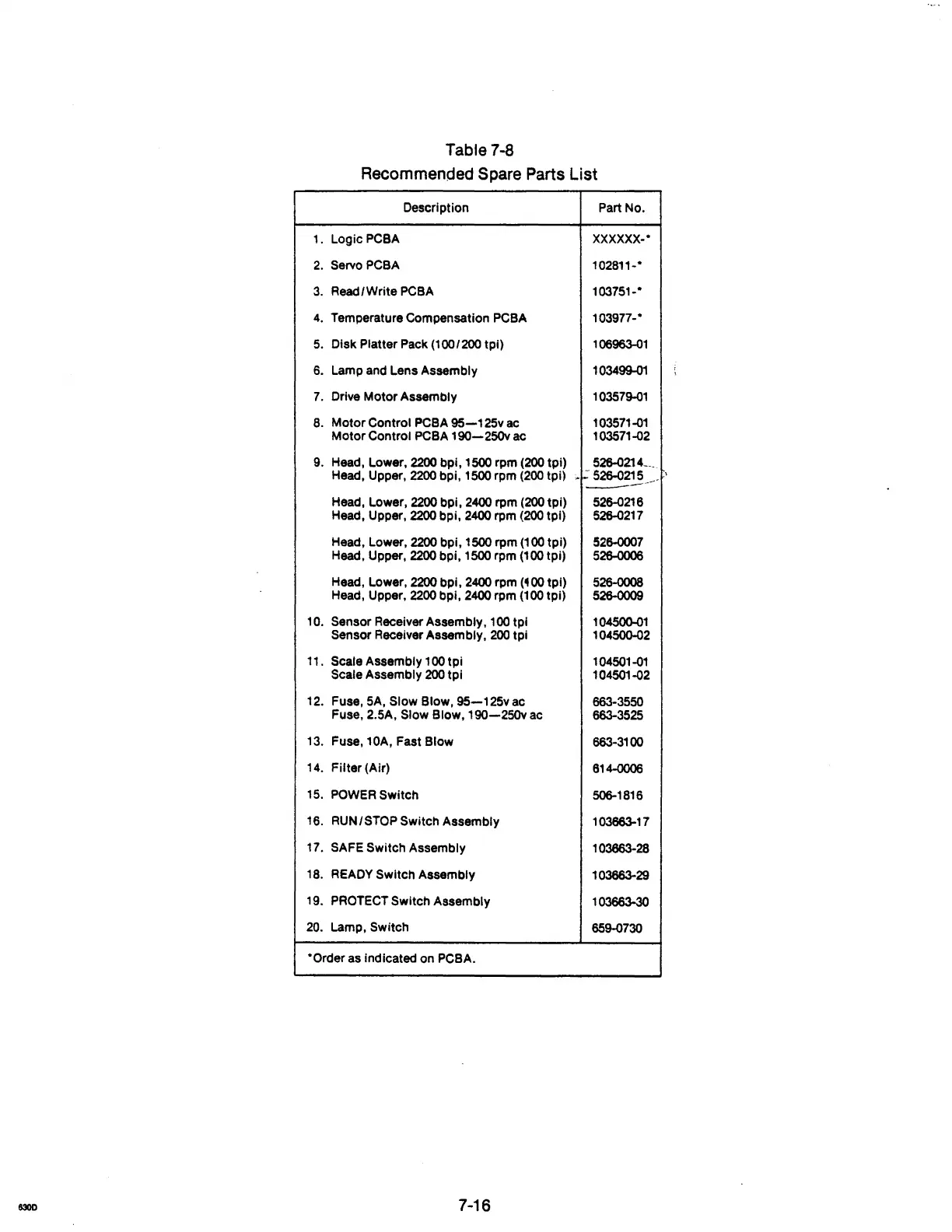

Table 7-8
Recommended
Spare Parts list
Description
Part No.
1.
Logic PCBA
xxxxxx-·
2. Servo PCBA 102811-·
3. Read/Write PCBA 103751-·
4. Temperature Compensation PCBA 103977-·
5. Disk Platter Pack (100/200 tpi)
106963-()1
6. Lamp and Lens Assembly 103499-01
7. Drive Motor Assembly 103579-01
8. Motor Control PCBA 95-125v ac 103571-01
Motor Control PCBA 190-25Ovac 103571-02
9. Head, Lower, 2200 bpi, 1500 rpm (200 tpi)
526-0214 ___ .
Head, Upper, 2200 bpi, 1500 rpm (200 tpi) ~
~~---'
Head, Lower, 2200 bpl,24OO rpm (200tpi) 526-0218
Head, Upper, 2200 bpi, 2400 rpm (200 tpi)
526-0217
Head, Lower, 2200 bpi, 1500 rpm (100 tpl)
526-0007
Head, Upper, 2200 bpi, 1500 rpm (100 tpi)
526-0008
Head, Lower, 2200 bpi, 2400 rpm (400 tpl)
526-0008
Head, Upper, 2200 bpi, 2400 rpm (100 tpl)
526-0009
10. Sensor Receiver Assembly, 100 tpl
104500-01
Sensor Receiver Assembly, 200 tpl
104500-02
11.
Scale Assembly 100 tpl
104501-01
Scale
Assembly 200 tpl
104501-02
12. Fuse, 5A,
Slow Blow, 95-125vac
863-3550
Fuse, 2.5A,
Slow Blow, 190-25Ovac
863-3525
13. Fuse, 10A, Fast Blow
663-3100
14. Filter (Air)
814-0008
15. POWER Switch
506-1816
18.
RUN/STOP Switch Assembly
103863-17
17. SAFE Switch Assembly
103663-28
18. READY Switch Assembly
103863-29
19. PROTECT Switch Assembly
103663-30
20.
Lamp, Switch
659-0730
