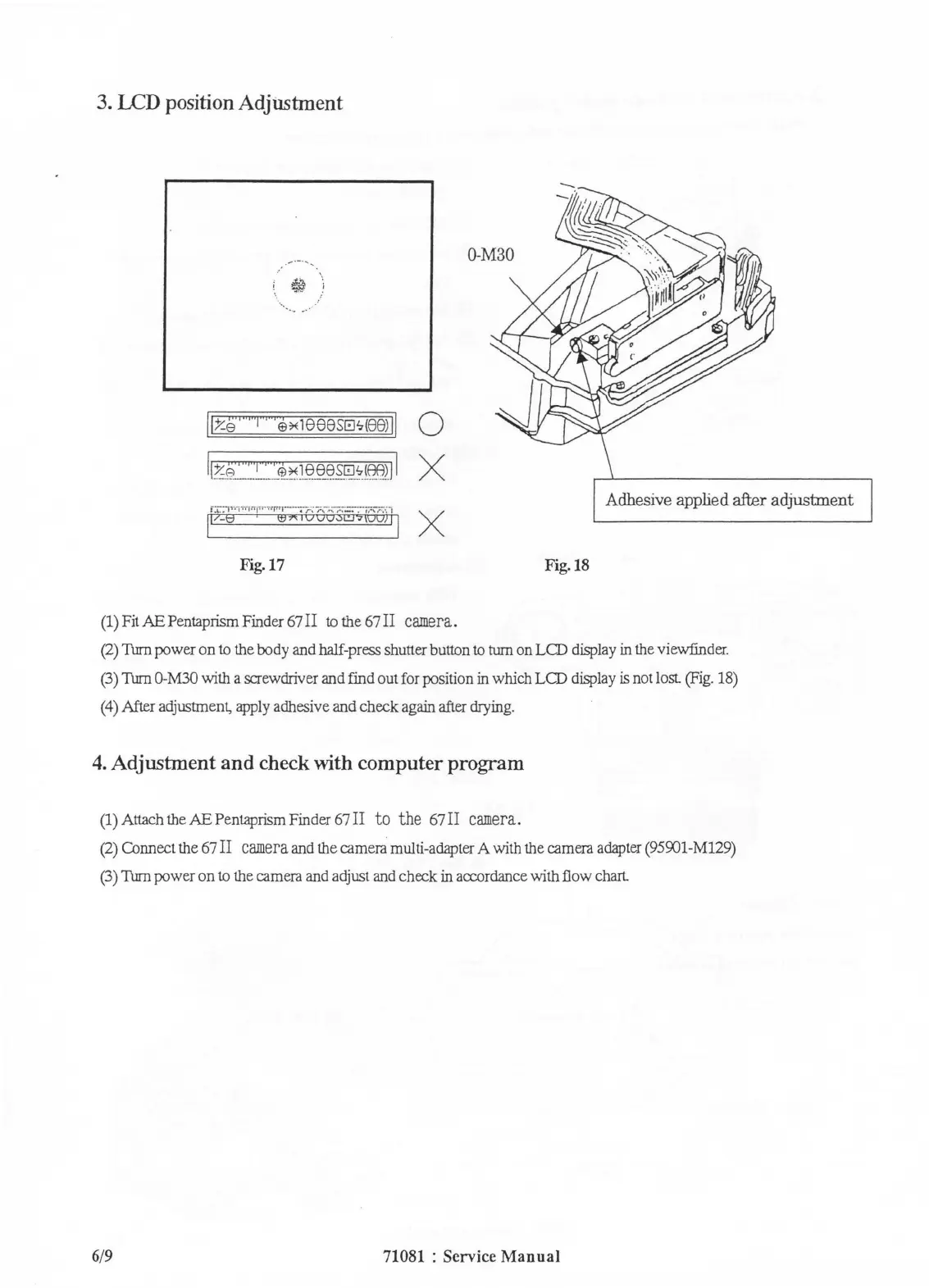

Pentax 67 II - Adjustment and check with computer program

3. LCD position Adjilstment
; $.j ;
· ..
lir-8'' · 1 • ·9~1eees0i.1eeJll 0
117=0..'.'..'..~~ .. '. - ~<i~l~-§_~§.!:!) _ HOO)J I x
Fig.17
(1) Fit AE Pentaprism Finder 67 II to the 67 II camera.
Adhesive applied after adjustment
Fig.18
(2) Turn power on to the body and half-press shutter button to tum on LCD display in the viewfinder.
(3) Turn O-M30 with a screwdriver and find out for position in which LCD display is not lost (Fig . 18)
(4) After adjustment, apply adhesive and check again after drying .
4. Adjustment and check with computer program
(1) Attach the AE Pentaprism Finder 67 II to the 67 II camera.
(2) Connect the 67 II camera and th e camera multi- adapter A with the camera adapter (95<Xll-Ml29)
(3) Turn power on to the camera and adjust and check in accordance with flow chart.
