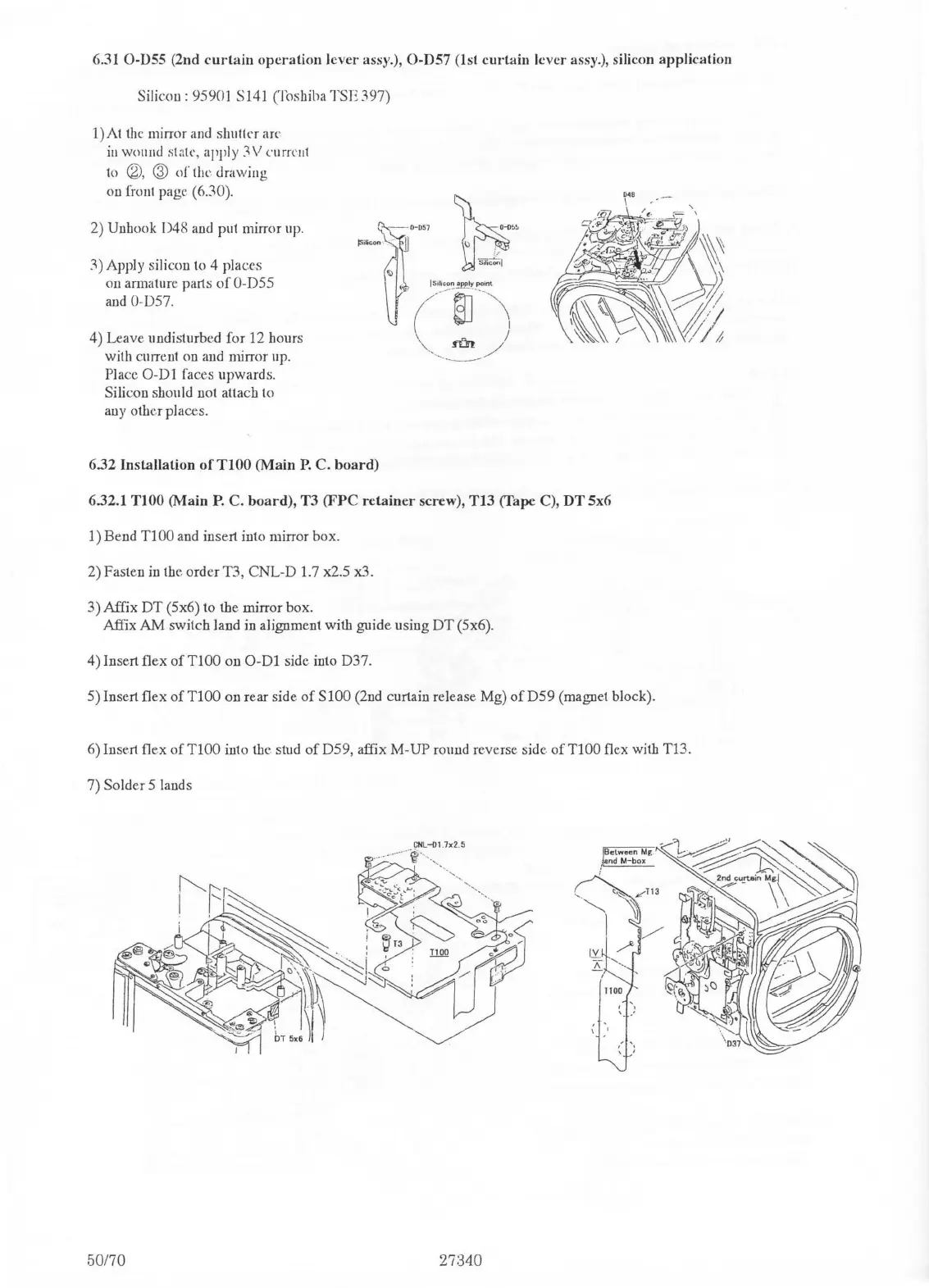

6.31 0-DSS (2nd
curtain
operation lever assy.), O-D57 (1st
curtain
lever assy.), silicon application
Silicou : 95901 Sl41 (loshiba
TSE397)
1)
At
the
mirror
and
shutter arc
iu
wouud
st
a
te
, apply 3\1 currrnl
to
(2),
@
of
the drawing
ou
froul page (6.30).
2) Uuhook D48
and
put mirror up.
3) Apply silicon to 4 places
ou armature parts
of
O-D55
and
0-
057
.
4) Leave undisturbed for 12 hours
with current on and mirror up.
Place
0-Dl
faces upwards.
Silicon should not attach to
any other places.
6.32 Installation
ofTlOO
(Main
P.
C.
board)
6.32.1 TlOO (Main
P.
C.
board),
T3
(FPC
retainer
screw),
Tl3
(l'ape C),
DT
5x6
1) Bend
Tl
00 and insert into mirror box.
2) Fasten
in
the order T3, CNL-D 1.7 x2.5 x3.
3) Affix
DT
(5x6) to the mirror box.
Affix AM switch land
in
alignment with guide using
DT
(5x6).
4) Insert flex
of
TlOO
on
0-Dl
side into D37.
5) Insert flex
of
TlOO
on rear side
of
SlOO
(2nd curtain release Mg)
of
D59 (magnet block).
6) Insert flex
of
TlOO into the stud
of
D59, affix M-UP round reverse side
of
TlOO
flex with
Tl3
.
7)
Solder 5 lands
50170
27:340
