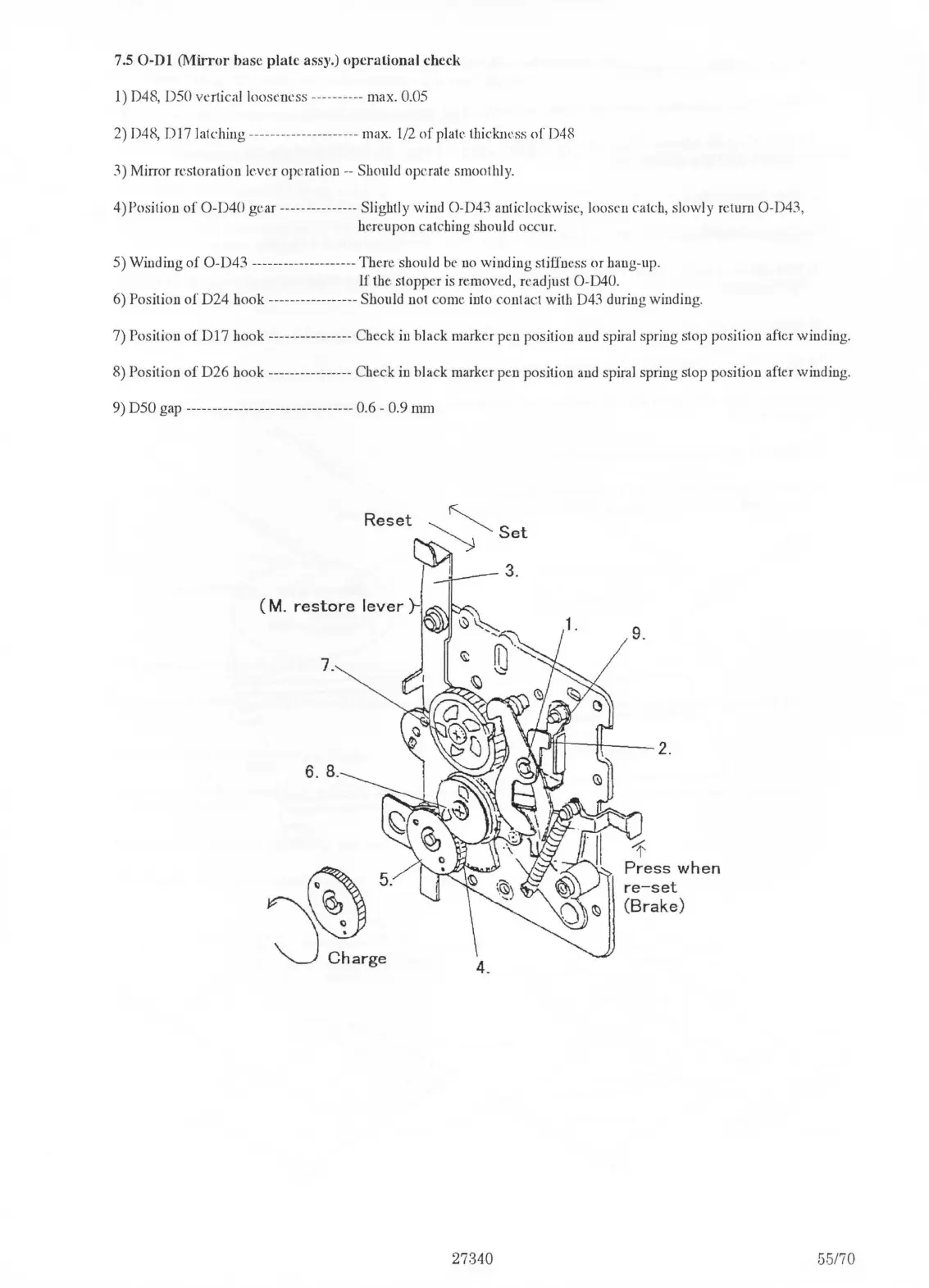

7.5
0-Dl
(Mirror
base
plate
assy.)
operational
check
l)
048
, D50 vertical loosrncss ---------- max. 0.05
2)
D48, D
17
latching --------------------- max. 1/2
of
plate thickness
of
D48
3) Mirror restoration lever operation
--
Should operate. smoothly.
4) Position
of
0-040
gear--------------- Slightly wiud
0-043
anticlockwise, looseu catch, slowly return O-D43,
hereupon catching should occur.
5) Wiudiug
of
0-043
--------------------There should be
no
winding stiffness or hang-up.
ff
the stopper is removed, readjust 0 -D40.
6) Position
of
D24
book----------------- Should not come into contact with
043
during winding.
7)
Position
of
Dl
7 hook---------------- Check in black marker pen position and spiral spring stop position after winding.
8) Position
of
D26
book ---------------- Check in black marker pen position and spiral spring stop position after winding.
9)
D50
gap -------------------------------- 0.6 - 0.9 mm
Reset
( M_
restore
lever
}-
7_
6.
8_
4_
27340
9.
re-set
(Brake)
G.S/70
