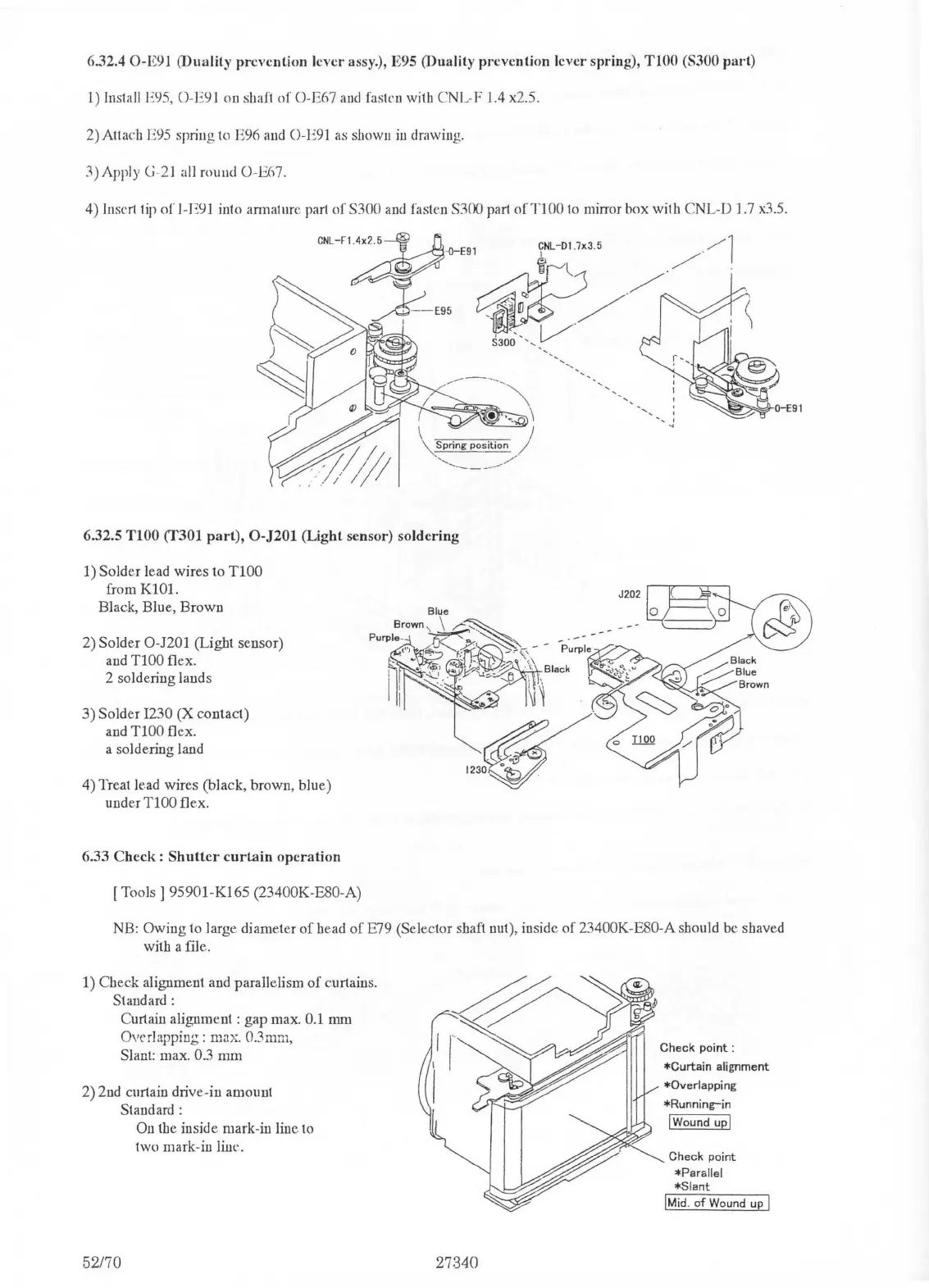

6.32.4 O-E91 (Duality prevention lever assy.), E95 (Duality prevention lever spring), TlOO (S300 part)
1) lnstall E95, O-E91 on sliaf1 of O-E67 and fastcn with CNL-F l.4 x2.5.
2) Attach E95 spring to
E96 aud O-E91 as shown iu drawing.
3) Apply G- 21 all rouud O-E67.
4) luscrt tip of l-E91 into annature part of S300 and fasten S300 part ofTlOO to mirror box with CNL-D 1.7 x3.5.
6.32.5 TlOO (1'301 part), O-J201 (Light sensor) soldering
1) Solder lead wires to TlOO
from KlOl.
Black, Blue, Brown
2) Solder 0-1201 (Light sensor)
and
TlOO flex.
2 soldering lands
3) Solder 1230 (X contact)
and
TlOO flex.
a soldering land
4) Treat
lead wires (black, brown, blue)
under
Tl 00 flex.
6.33 Check: Shutter curtain operation
[Tools] 95901-Kl 65 (23400K-E80-A)
NB: Owing to large diameter of bead of E79 (Selector shaft nut), inside of 23400K-E80-A should be shaved
with a file.
1) Check alignment and parallelism
of curtains.
Standard :
Curtain alignment :
gap max. 0.1 mm
Overlapping: max. 0.3111111,
Slant: max. 0.3 mm
2) 2nd curtain drive-in amount
Standard:
52170
On the inside mark-in line to
two mark-in line.
27340
Check point :
*Curtain alignment
*Overlapping
*Running-in
I wound upl
Check point
*Parallel
*Slant
I Mid. of Wound up I

Pentax 67 II Specifications

General

Type	Medium format SLR
Film Format	120/220 roll film
Image Size	6x7 cm
Lens Mount	Pentax 67 bayonet mount
Metering	TTL center-weighted metering
Focusing Screen	Interchangeable
Mirror Lock-Up	Yes
Multiple Exposure	Yes
Shutter	Electronically controlled horizontal-travel cloth focal plane shutter
Shutter Speed Range	1/1000 to 4 s, Bulb
ISO Range	6 to 6400
Exposure Modes	Manual, Aperture Priority
Viewfinder	Interchangeable
Flash Sync Speed	1/30 s
Power Source	6V 4LR44 battery
