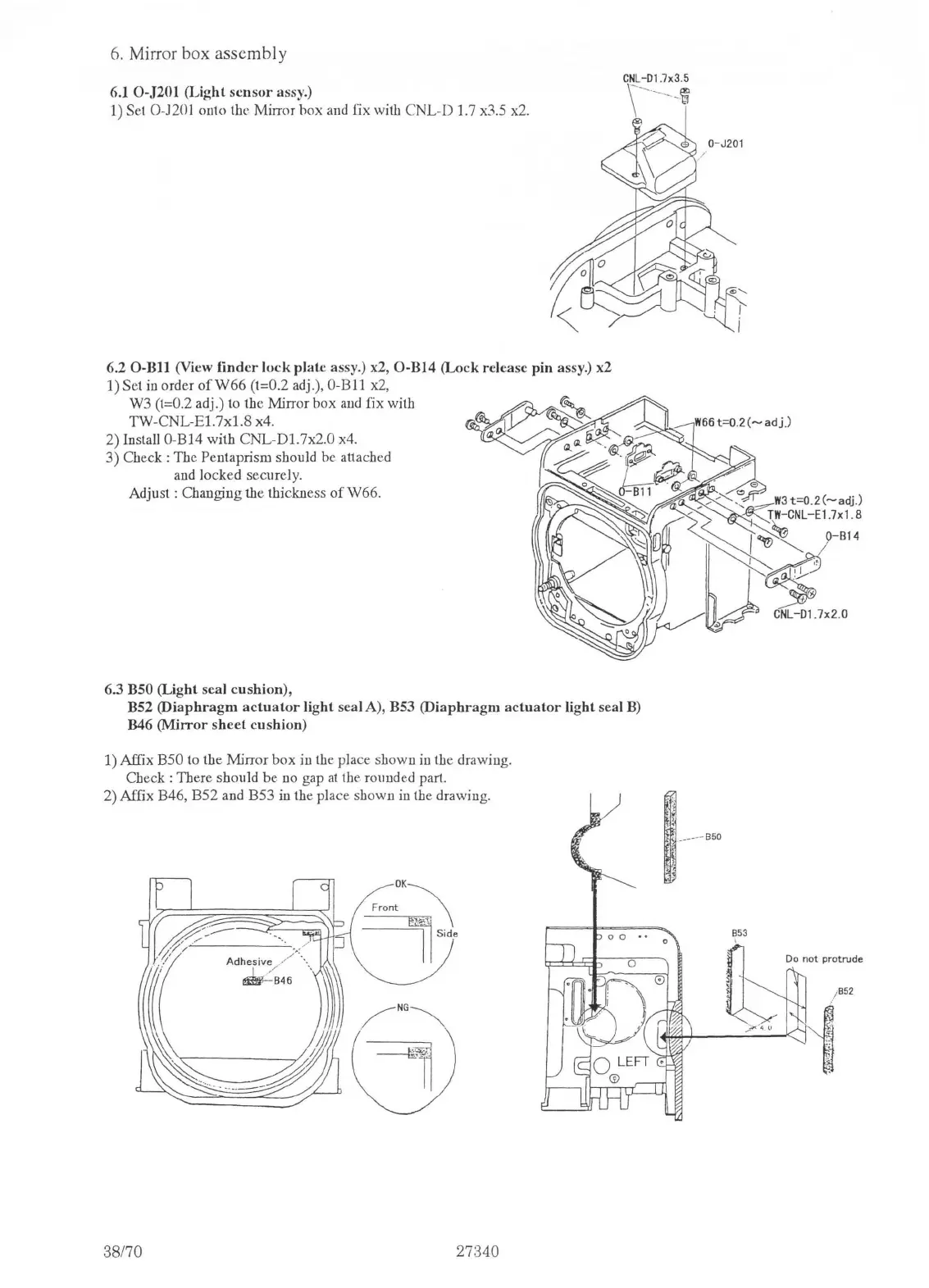

6. Mirror box assembly
CNL -01 .7x3.5
6.1 O- .J20 I (Ligh l sensor assy.)
1) Set 0-J 201 onto the Mirror box and fix with CNL-D 1. 7 x3.5 x2.
\ ~---- t;
6.2 0-Bll (View finder lock plate assy.) x2, O-Bl4 (Lock release pin assy.) x2
1) Set in order of W66 (t=0.2 adj.), 0-Bll x2,
W3 (t=0.2 adj.) to the Mirror box and fix with
TW-CNL-El.7xl.8 x4.
2) Install
O-B14 with CNL-Dl.7x2 .0 x4.
3)
Check: The Pcntaprisrn should be attached
and locked securely.
Adjust : Changing the thickness of W66.
6.3 BSO (Light seal cushion),
B52 (Diaphragm actuator light seal A), B53 (Diaphragm actuator light seal B)
B46 (Mirror sheet cushion)
1) Affix B50 to the Mirror box in the place shown in the drawing.
Check : There should be no gap at the rounded pa!1 .
2) Affix B46, B52 and B53 in the place shown in the drawing.
t_ . .,,
I
38170
27:340
853
~ '- Do not protrude
~ , 852
)'< ' 4. U

Pentax 67 II Specifications

General

Type	Medium format SLR
Film Format	120/220 roll film
Image Size	6x7 cm
Lens Mount	Pentax 67 bayonet mount
Metering	TTL center-weighted metering
Focusing Screen	Interchangeable
Mirror Lock-Up	Yes
Multiple Exposure	Yes
Shutter	Electronically controlled horizontal-travel cloth focal plane shutter
Shutter Speed Range	1/1000 to 4 s, Bulb
ISO Range	6 to 6400
Exposure Modes	Manual, Aperture Priority
Viewfinder	Interchangeable
Flash Sync Speed	1/30 s
Power Source	6V 4LR44 battery
