Pentax 67 II User Manual

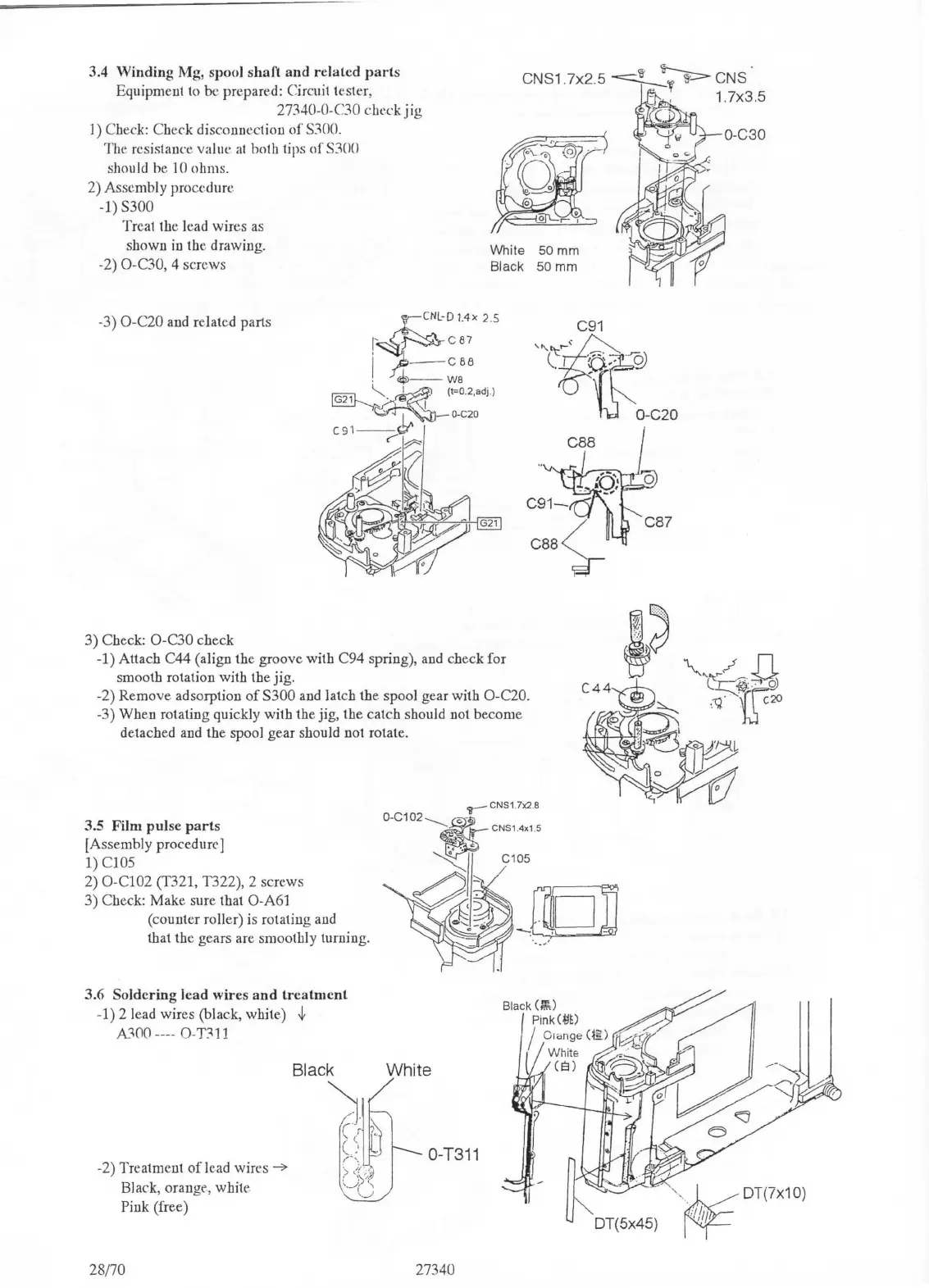

3.4 Winding Mg, spool shan and related parts
Equipment to be prepared: Circuit tester,
27340-0-C30 c!Jeck jig
CNS1 .7x2.5 ~~CNS .
- , 1.7x3.5
1) Check: Check disconnection of S300.
The resistance value at both tips of S300
should be 10 ohms.
2) Assembly procedure
-1) S300
Treat the lead wires as
shown in the drawing.
-2) O-C30, 4 screws
White 50 mm
Black 50 mm
-3) O-C20 and related parts
3)
Check: O-C30 check
-1) Attach C44 (align the groove with C94 spring), and check for
smooth rotation with the jig.
C91-
C88 <
~
-2) Remove adsorption of S300 and latch the spool gear with O-C20.
-3) When rotating quickly with the jig, the catch should not become
detached
and the spool gear should not rotate.
3.5
Film pulse parts
[Assembly procedure]
1)
C105
2) O-C102 (T321, T322), 2 screws
3) Check: Make sure that O-A61
(counter roller) is rotating
and
that the gears are smoothly turning.
3.6 Soldering lead wires and treatment
-1) 2 lead wires (black, white) t
A".100 ---- O-T'.1 11
-2) Treatment of le.ad wires__,.
Black, orange, white
Pink (free)
28/70
White
O-T311
27340
.c
'- ~ DT(7x10)
~

Pentax 67 II Specifications

General

Type	Medium format SLR
Film Format	120/220 roll film
Image Size	6x7 cm
Lens Mount	Pentax 67 bayonet mount
Metering	TTL center-weighted metering
Focusing Screen	Interchangeable
Mirror Lock-Up	Yes
Multiple Exposure	Yes
Shutter	Electronically controlled horizontal-travel cloth focal plane shutter
Shutter Speed Range	1/1000 to 4 s, Bulb
ISO Range	6 to 6400
Exposure Modes	Manual, Aperture Priority
Viewfinder	Interchangeable
Flash Sync Speed	1/30 s
Power Source	6V 4LR44 battery
