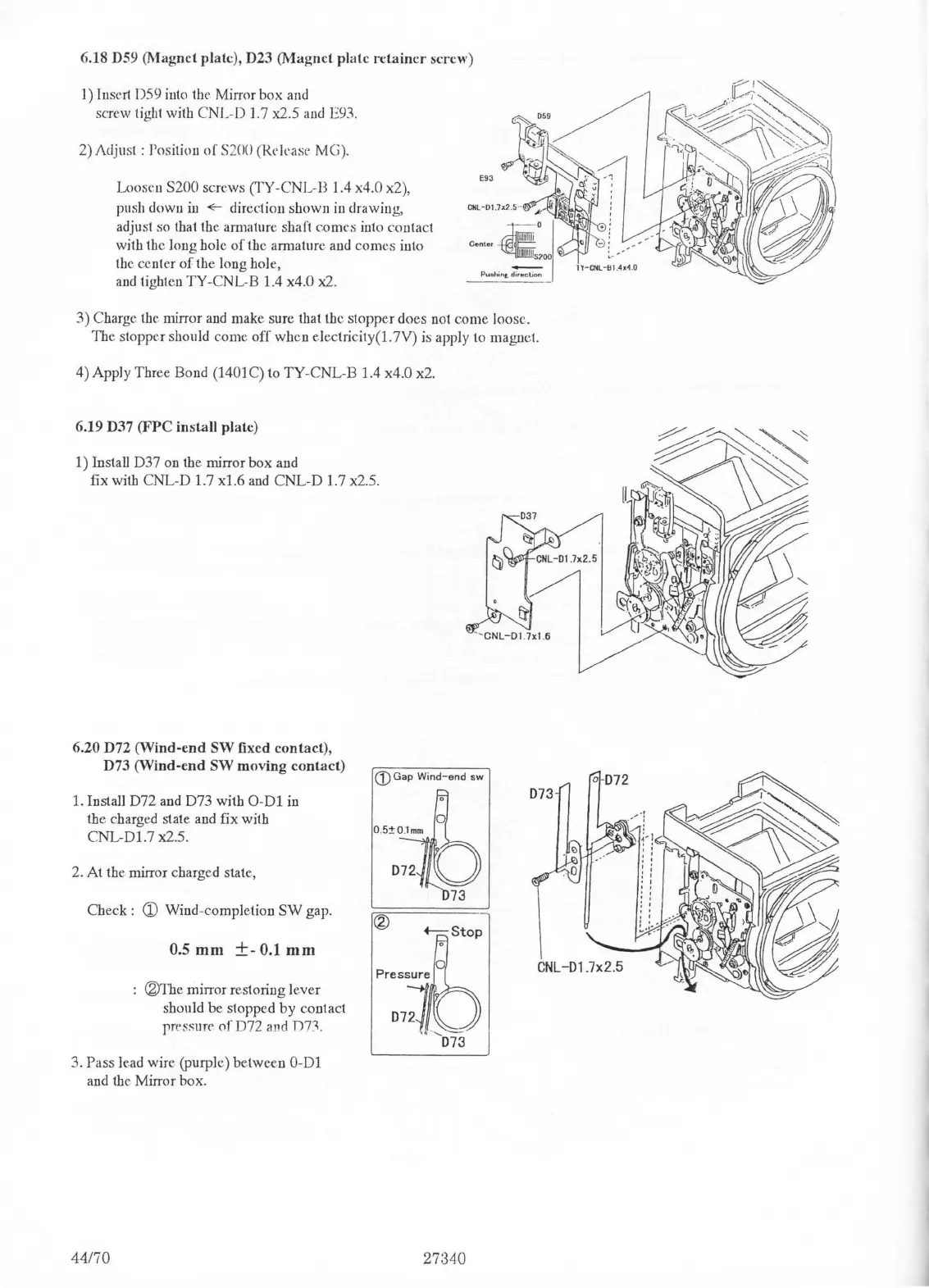

6.18 D59 (Magnet plate), D23 (Magnet. plate
retainer
screw)
1)
Insert D59 into the Mirror box and
screw tight with CNL-D
l.7
x2.5
and
E9.l
2) Adjust : Position
of
S200
(H.c
lease MG).
Loosen
S200 screws (TY-CNL-B 1.4 x4.0 x2),
push down
in
.::---
direction shown
in
drawing,
adjust
so that the armature shaft comes into contact
with the long hole
of
the amrnture and comes into
th
e center
of
the long hole,
and
tighten TY-CNL-B 1.4 x4.0 x2.
E93
Center
-
Pushing
dir11cliori
3) Charge the mirror
and
make sure that the stopper does not come loose.
The stopper should come
off
when electricity(l.7V) is apply
to
magnet.
4) Apply Three Bond (1401C) to TY-CNL-B 1.4
x4.0 x2.
6.19 D37
(FPC install plate)
1) Install D37 on the mirror box and
fix with CNL-D 1.7
xl.6
and
CNL-D 1.7 x2.5.
--
cNL-D1.7xt.6
6.20 D72 (Wind-end
SW
fixed contact),
D73 (Wind-end
SW moving
contact)
(j)
Gap
Wind-end
sw
l.
Install D72 and D73 with
0-Dl
in
the charged state and fix with
CNL-Dl.7
x2.5.
2. At the mirror charged state
.,
Check :
CD
Wind-completion
SW
gap.
0.5
mm
±-
0.1
mm
073
a
0.5:!0.1mm
0 072
CNL
-01 .7x2.5
®Tbe
mirror restoring lever
should be stopped by contact
pressure
of
D72 and D
7'.I.
3. Pass lead wire (purple) between
0-Dl
and the Mirror box.
44170
